Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.3
Frequency: 14.745600 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 10 mA max. at 15pF Load
Frequency Tolerance: ±100 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms
Package Unit: 500pcs/reel

Manufacturer: Utech Electronics Technology Co., Ltd.

Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 8.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Input Current: 20 mA max.
Frequency Tolerance: ±50 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms

Package Unit: 500pcs/reel

'-

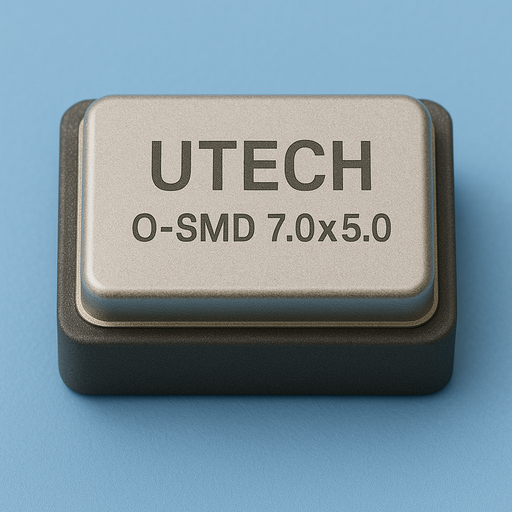

Manufacturer: Utech Electronics Technology Co., Ltd.
Type: QOS7
-
Series: Oscillator SMD7050-M4
Dimension (mm): 7.0 x 5.0 x 1.3
Frequency: 16.000000 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 20 mA max. at 15pF Load
Frequency Tolerance: ±100 ppm
Output Logic / Output Load: HCMOS / 15 pF typ.
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 6 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms
Package Unit: 1000pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 16.000000 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 20 mA max.
Frequency Tolerance: ±50 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms
Package Unit: 1000pcs/reel

'-
Manufacturer: Utech Technology Co., Ltd.
-
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.5
Frequency: 24.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±50 ppm
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
-
Package Unit: 500pcs/reel

Manufacturer: Utech Technology Co., Ltd.
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.3
Frequency: 24.576000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±50 ppm
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Package Unit: 500pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR1000

Manufacturer: Utech Technology Co., Ltd.

Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.3
Frequency: 25.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±50 ppm
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C

Package Unit: 500pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 3.686400 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 10 mA max. at 15pF Load
Frequency Tolerance: ±100 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms
Package Unit: 500pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 32.768000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Input Current: 15 mA max.
Frequency Tolerance: ±100 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Start-up Time: ≤ 5 ms
Package Unit: 500pcs/reel

Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 16.000000 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 20 mA max.
Frequency Tolerance: ±50 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms
Package Unit: 1000pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 16.000000 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 20 mA max.
Frequency Tolerance: ±50 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms
Package Unit: 1000pcs/reel

Manufacturer: Utech Technology Co., Ltd.

Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 48.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±50 ppm
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C

Package Unit: 500pcs/reel

Manufacturer: Utech Electronics Technology Co., Ltd.

Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 5.000000 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 20 mA max.
Frequency Tolerance: ±100 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms

Package Unit: 1000pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
-
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 50.000000 MHz (fundamental)
Supply Voltage (VDD): +1.6 to +3.3 VDC
Input Current: 3 mA max.
Frequency Tolerance: ±50 ppm
Output Logic / Output Load: HCMOS / 15 pF max
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +125°C
Symmetry: 45% to 55%
Rise & Fall Time: ≤ 4 ns
Start-up Time: ≤ 3 ms
Aging: ±3ppm max. / year
-
Package Unit: 500pcs/reel

Manufacturer: Utech Technology Co., Ltd.

Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 48.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±50 ppm
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C

Package Unit: 500pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 16.000000 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 20 mA max.
Frequency Tolerance: ±50 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms
Package Unit: 1000pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 8.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Input Current: 20 mA max.
Frequency Tolerance: ±50 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms
Package Unit: 500pcs/reel

Manufacturer: UTECH TECHNOLOGY CO.,LTD

Case Size: Oscillator TCXO SMD2016-M4
Series: ?
Type: TCXO - CSW Output (Clipped Sine Wave)
Frequency: 12.000000 MHz (fundamental)
Supply Voltage (VDD): 3.3 VDC
Input Current: ?

Frequency Tolerance (at +25°C): ±2.0 ppm
Frequency Tolerance over temperature: ±2.5 ppm @ -40/+85°C
Frequency Stability Vs Supply Voltage (±5%): -
Frequency Stability Vs Load (±10%). -
Aging: -

Symmetry: 50%±5%
Output Logic / Output Load: CSW - Clipped Sine Wave (min. 0.8V) / 10 KΩ // 10pF
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Start-up Time: -

Package: 3000pcs/reel

'-
Manufacturer: UTECH TECHNOLOGY CO.,LTD
.
Case Size: Oscillator SMD2016-M4
Type: TCXO - CSW Output (Clipped Sine Wave)
Frequency: 20.375000 MHz (fundamental)
Supply Voltage (VDD): +3.3 VDC ±10%
Input Current: 1.5 mA max.
Frequency Tolerance (at +25°C): ±1.5 ppm
Frequency Stability vs Temperature Range: ±2.0 ppm (@CDMA)
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%): ±0.2 ppm
Aging max.: ±1ppm / year
Symmetry: -
Output Logic / Output Load: CSW (Clipped Sine Wave) / Symmetry: 50%±5%
Operating Temperature: -30°C to +85°C
Storage Temperature: -40°C to +85°C
Start-up Time: ≤ 2 ms
-
Packag Unit: 3000pcs/reel

Manufacturer: UTECH TECHNOLOGY CO.,LTD

Case Size: Oscillator TCXO SMD2016-M4
Series: QPS1
Type: TCXO - CSW Output (Clipped Sine Wave)
Frequency: 26.000000 MHz (fundamental)
Supply Voltage (VDD): 1.8 V ±5%
Input Current: 2.0 mA max.

Frequency Tolerance (at +25°C): ±1.0 ppm
Frequency Tolerance over Temperature: ±1.0 ppm @ -40/+85°C
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%). ±0.2 ppm
Aging: ±1.0 ppm/yer max.

Output Logic / Output Load: CSW - Clipped Sine Wave (min. 0.8V) / 10 KΩ // 10pF
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C

Phase Noise
@ 1 kHz offset < -130dBC/Hz
@ 10 kHz offset <-140dBC/Hz
@ 100 kHz offset <-150dBC/Hz

Package: 3000pcs/reel

Manufacturer: UTECH TECHNOLOGY CO.,LTD

Case Size: Oscillator TCXO SMD2016-M4
Series: QPS1
Type: TCXO - CSW Output (Clipped Sine Wave)
Frequency: 26.000000 MHz (fundamental)
Supply Voltage (VDD): 2.5 – 3.6 VDC
Input Current: 1.5 mA max.

Frequency Tolerance (at +25°C): ±2.5 ppm
Frequency Tolerance 1 over temperature: ±2.0 ppm @ -40/+85°C
Frequency Tolerance 2 over temperature: ±0.5 ppm @ -30/+85°C

Frequency Stability Vs Supply Voltage (±5%): ±0.1 ppm
Frequency Stability Vs Load (±10%). ±0.2 ppm
Aging: ±1ppm

Symmetry: 50%±5%
Output Logic / Output Load: CSW - Clipped Sine Wave (min. 0.8V) / 10 KΩ // 10pF
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Start-up Time: ≤ 2 ms

Phase Noise
@ 1 Hz offset <-57dBC/Hz
@ 10 Hz offset <-88dBC/Hz
@ 100 Hz offset <-112dBC/Hz
@ 1 kHz offset <-130dBC/Hz
@ 10 kHz offset <-140dBC/Hz

Package: 3000pcs/reel

Manufacturer: UTECH TECHNOLOGY CO.,LTD

Case Size: Oscillator TCXO SMD2016-M4
Series: QPS1
Type: TCXO - CSW Output (Clipped Sine Wave)
Frequency: 26.000000 MHz (fundamental)
Supply Voltage (VDD): +2.8 VDC ±5%
Input Current: 2.0 mA max.

Frequency Tolerance (at +25°C): ±2.0 ppm
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%). ±0.2 ppm
Aging: ±1ppm

Symmetry: 50%±5%
Output Logic / Output Load: CSW - Clipped Sine Wave (min. 0.8V) / 10 KΩ // 10pF
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Start-up Time: ≤ 2 ms

Phase Noise @19.2 MHz in dBc/Hz: -115 @ 100Hz, -135 @ 1kHz, -149 @ 10kHz

Manufacturer: UTECH TECHNOLOGY CO.,LTD

Case Size: Oscillator TCXO SMD2016-M4
Series: QPS1
Type: TCXO - CSW Output (Clipped Sine Wave)
Frequency: 26.000000 MHz (fundamental)
Supply Voltage (VDD): 3.0 V (1.8 ~3.3) ±5%
Input Current: 2.0 mA max.

Frequency Tolerance (at +25°C): ±1.0 ppm
Frequency Tolerance over Temperature: ±1.0 ppm @ -40/+85°C
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%). ±0.2 ppm
Aging: ±1.0 ppm/yer max.

Output Logic / Output Load: CSW - Clipped Sine Wave (min. 0.8V) / 10 KΩ // 10pF
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C

Phase Noise
@ 1 kHz offset < -130dBC/Hz
@ 10 kHz offset <-140dBC/Hz
@ 100 kHz offset <-150dBC/Hz

Package: 3000pcs/reel

'-
Utech Electronics Technology Co., Ltd.
-
Case Size: Oscillator SMD2016-M4
Series: QPS1
Type: TCXO - CSW Output (Clipped Sine Wave)
Frequency: 40.000000 MHz (fundamental)
Supply Voltage (VDD): +3.3 VDC ±10%
Input Current: 1.5 mA max.
Frequency Tolerance (at +25°C): ±2.0 ppm
Frequency Stability vs Temperature Range: ±2.0 ppm
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%). ±0.2 ppm
Symmetry: 50%±5%
Aging: ±1ppm
Output Logic / Output Load: CSW - Clipped Sine Wave
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Start-up Time: ≤ 2 ms
Package Unit: 3000pcs/reel

'-
Utech Electronics Technology Co., Ltd.
-
Frequency: 19.200000 MHz
Oscillation Mode: Fundamental
Supply Voltage (VCC): 1.8 to 3.3V
Input Current: 1.5 mA max
Output Level Clipped Sine(Vp-p): 0.8V min
Harmonics: -5 dBc max
Frequency Tolerance After Reflow (at +25°C): ±2 ppm max
Frequency Stability Vs Temperature Range: ±2 ppm max
Operating Temperature Range: -40~+85°C
Temperature slope @-20~+70°C: ±0.1 ppm / °C
Temperature slope @-40~+85°C: ±0.3 ppm / °C
Storage Temperature Range: -40~+85°C
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%): ±0.2 ppm
Output Waveform: Clipped Sine wave
Output Load: 10 KΩ // 10 pF
Start-up Time Vs frequency: ≤ 2.0 ms / within ±1 ppm
Aging : ±1 ppm max first year
-
Package Unit: 3000pcs/reel

'-
Utech Electronics Technology Co., Ltd.
-
Frequency: 12.500000 MHz
Oscillation Mode: Fundamental
Supply Voltage (VCC): 2.8V ±5%
Input Current: 1.5 mA max
Output Level Clipped Sine(Vp-p): 0.8V min
Harmonics: -5 dBc max
Frequency Tolerance After Reflow (at +25°C): ±2 ppm max
Frequency Stability Vs Temperature Range: ±2 ppm max
Operating Temperature Range: -40~+85°C
Temperature slope @-20~+70°C: ±0.1 ppm / °C
Temperature slope @-40~+85°C: ±0.3 ppm / °C
Storage Temperature Range: -40~+85°C
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%): ±0.2 ppm
Output Waveform: Clipped Sine wave
Output Load: 10 KΩ // 10 pF
Start-up Time Vs frequency: ≤ 2.0 ms / within ±1 ppm
Aging : ±1 ppm max first year
-
Package Unit: 3000pcs/reel

'-
Utech Electronics Technology Co., Ltd.
-
Frequency: 24.000000 MHz
Oscillation Mode: Fundamental
Supply Voltage (VCC): 1.8V to 3.3V
Input Current: 1.5 mA max
Output Level Clipped Sine(Vp-p): 0.8V min
Harmonics: -5 dBc max
Frequency Tolerance After Reflow (at +25°C): ±2 ppm max
Frequency Stability Vs Temperature Range: ±2 ppm max
Operating Temperature Range: -40~+85°C
Temperature slope @-20~+70°C: ±0.1 ppm / °C
Temperature slope @-40~+85°C: ±0.3 ppm / °C
Storage Temperature Range: -40~+85°C
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%): ±0.2 ppm
Output Waveform: Clipped Sine wave
Output Load: 10 KΩ // 10 pF
Start-up Time Vs frequency: ≤ 2.0 ms / within ±1 ppm
Aging : ±1 ppm max first year
-
Package Unit: 3000pcs/reel

'-
Utech Electronics Technology Co., Ltd.
-
Frequency: 24.000000 MHz
Oscillation Mode: Fundamental
Supply Voltage (VCC): 2.8V ±5%
Input Current: 1.5 mA max
Output Level Clipped Sine(Vp-p): 0.8V min
Harmonics: -5 dBc max
Frequency Tolerance After Reflow (at +25°C): ±2 ppm max
Frequency Stability Vs Temperature Range: ±2 ppm max
Operating Temperature Range: -40~+85°C
Temperature slope @-20~+70°C: ±0.1 ppm / °C
Temperature slope @-40~+85°C: ±0.3 ppm / °C
Storage Temperature Range: -40~+85°C
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%): ±0.2 ppm
Output Waveform: Clipped Sine wave
Output Load: 10 KΩ // 10 pF
Start-up Time Vs frequency: ≤ 2.0 ms / within ±1 ppm
Aging : ±1 ppm max first year
-
Package Unit: 3000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000
Lead time: 8 Weeks
