  2. O-SMD7050-M4–3.686400 MHz-5.0-100-4085
O-SMD7050-M4–3.686400 MHz-5.0-100-4085

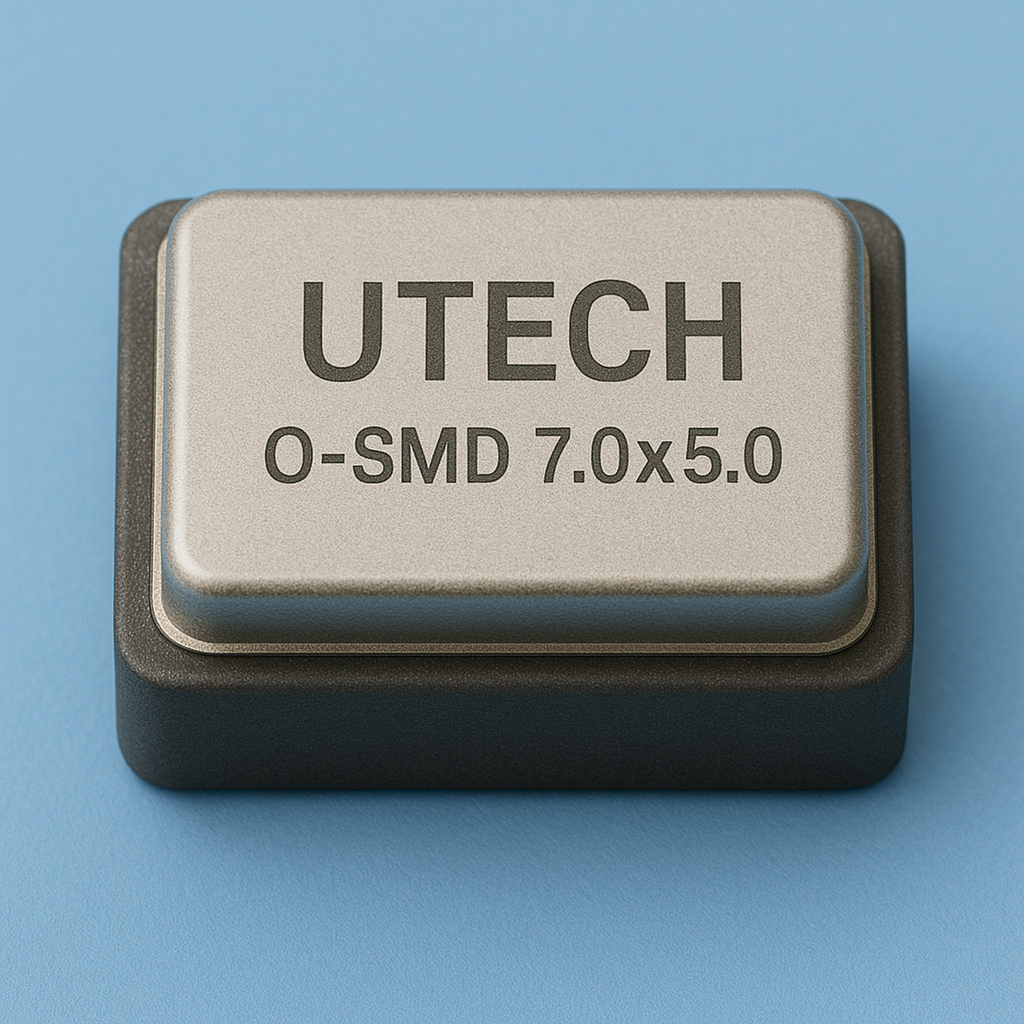

[20-0024] O-SMD7050-M4–3.686400 MHz-5.0-100-4085

https://www.quarzwerk.net/web/image/product.template/8158/image_1920?unique=3a3cab3

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 3.686400 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 10 mA max. at 15pF Load
Frequency Tolerance: ±100 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms
Package Unit: 500pcs/reel

0.00 EUR 0.0 EUR 0.00 EUR VAT Excluded

0.00 EUR VAT Excluded

Not Available For Sale

  • 3.01 Nominal Frequency (Fo)
  • 3.02 Supply Voltage (VDD)
  • 3.03 Input Current
  • O 3.04 Frequency Stability Over All *
  • O 3.05 Operating Temp. Range
  • 3.07 Output Logic
  • 3.08 Output Load
  • 3.09 “1” Level
  • 3.10 “0” Level
  • O 3.12 Symmetry
  • O 3.13 Rise / Fall Time
  • O 3.14 Output Disable / Enable Delay Time
  • O 3.15 Start-up Time
  • A 1.02 Type
  • Manufacturer
  • O 3.05 Operating Temperature Range

This combination does not exist.

Contact Us


Specifications

OSCILLATOR
3.01 Nominal Frequency (Fo) 3.686400 MHz
3.02 Supply Voltage (VDD) 5
3.03 Input Current 10 mA
O 3.04 Frequency Stability Over All * 100
O 3.05 Operating Temp. Range -40°C ~ +85°C
3.07 Output Logic HCMOS
3.08 Output Load 15pF
3.09 “1” Level -
3.10 “0” Level Voltage (VDD): +5.0 VDC ±10%
O 3.12 Symmetry -
O 3.13 Rise / Fall Time Fall Time: ≤ 5 ns
O 3.14 Output Disable / Enable Delay Time -
O 3.15 Start-up Time Start-up Time: ≤ 5 ms
Uncategorized
A 1.02 Type SMD7050
Manufacturer SUZHOU UTECH TECHNOLOGY CO.,LTD
O 3.05 Operating Temperature Range -
