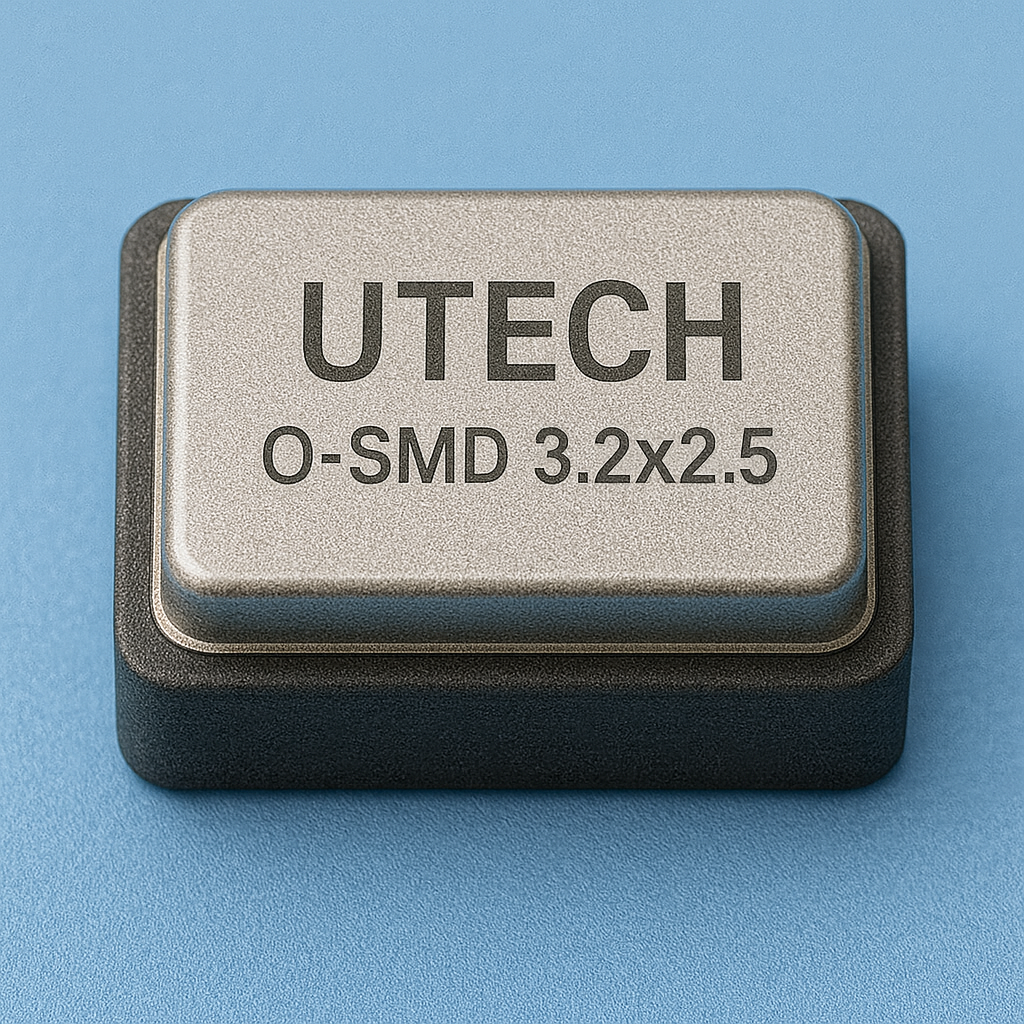

[20-0042] O-SMD3225-M4-32.768 kHz-3.3-20-2070
'-
UTECH Electronics Technology Co., Ltd.
-
Series: Oscillator SMD3225-M4 Type: kHz / AT characteristic
Dimension (mm): 3.2 x 2.5 x 1.00
Frequency: 32.768 kHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±20 ppm "Over All" *
Supply Current max.: 10 mA
Output Load: LVCMOS
Start-up Time max.: 5 mS
Output Symmetry: 50% ±5%
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
E/D: High = active
-
Package Unit: 500pcs/reel
-
* Definition Tolerance „Over All“: Including at +25°C, Over
Temperature Range, Supply Voltage Change, Shock and Vibration,
Aging 1st year
Specifications
| 3.01 Nominal Frequency (Fo) | 32.768 kHz |
| 3.02 Supply Voltage (VDD) | 3.3 |
| 3.03 Input Current | 10 mA |
| O 3.04 Frequency Stability Over All * | 20 |
| O 3.05 Operating Temp. Range | -20°C ~ +70°C |
| 3.07 Output Logic | CMOS |
| 3.08 Output Load | - |
| 3.09 “1” Level | - |
| 3.10 “0” Level | Voltage (VDD): +3.3 VDC ±10% |
| O 3.12 Symmetry | - |
| O 3.13 Rise / Fall Time | - |
| O 3.14 Output Disable / Enable Delay Time | - |
| O 3.15 Start-up Time | Start-up Time max.: 5 mS |
