Manufacturer: UTECH Electronics Technology Co., Ltd.

Series: Oscillator SMD2520-M4
Dimension (mm): 2.5 x 2.0 x 0.90
Frequency: 20.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±45 ppm OA
Operating Temperature: -40°C to +125°C
Storage Temperature: -55°C to +125°C
E/D: High = active

Package Unit: 3000 pcs/reel

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 24.000000 MHz
Power Supply Voltage: 1.6~3.6 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

Package Unit: 3000pcs/reel

Manufacturer: Epson Electronics
Part No.: X1G004171003100

Typ: SMD-Oscillator SG-210STF
Case size: SMD2520-M4
Frequency: 24.000000 MHz
Power Supply Voltage: 1.6 ~ 3.6 Volt
Frequency Stability: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF max.

Package Unit: 3000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000

'-
UTECH TECHNOLOGY CO.,LTD
-
Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 25.000000 MHz
Power Supply Voltage: 2.25 ~ 3.63 Volt
Frequency Stability *: ±20 ppm @ -20/+70°C
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3
-
* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

SUZHOU UTECH TECHNOLOGY CO.,LTD

Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 25.000000 MHz
Power Supply Voltage: 2.5 VDC±10%
Frequency Stability *: ±30 ppm
Operating Temp.: -40°C/+105°C
Input Current: 1 mA max
Standby Current: 10 μA max
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000 pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 3000pcs/reel

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 25.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±25 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000pcs

UTECH TECHNOLOGY CO.,LTD

Typ: SMD-Oscillator HCMOS - QOS2
Case size: SMD2520-M4
Frequency: 26.000000 MHz
Power Supply Voltage: 1.8 ~3.3 Volt
Frequency Stability *: ±10 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000pcs/reel

* Frequency Stability:
inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change,
output load change, aging over 10 years, shock and vibration.

UTECH Electronics Technology Co., Ltd.

Typ: SMD Oscillator QOS2
Case size: SMD2520-M4
Frequency: 32.000000 MHz
Power Supply Voltage: 1.6 ~ 3.6 Volt
Frequency Stability: ±25 ppm
Operating Temp.: -20°C/+70°C
Output Load (HCOMS): 15pF max.

Current consumption: 3.0mA Max. at VCC=3.3V
Stand-by current: 10.0 μA Max. at VCC=3.3V

Package Unit: 3000pcs/reel

Manufacturer: Epson Electronics
Part No.: X1G004171022514

Typ: SMD-Oscillator SG-210STF
Case size: SMD2520-M4
Frequency: 32.000000 MHz
Power Supply Voltage: 1.6 ~ 3.6 Volt.
Frequency Stability: ±25 ppm
Operating Temp.: -20°C/+70°C
Output Load (HCOMS): 15pF max.

Package Unit: 1000pcs/reel

X1G004171022500 (3000pcs in package)
-
X1G004171022501 (samples)
X1G004171022511
X1G004171022512 (250 pcs in package)
X1G004171022514 (1000 pcs in package)

'-
Manufacturer: RIVER ELECTRONICS (S) PTE. LTD.
-
Typ: SMD Oscillator FCXO-05
Case size: SMD2520-M4
Frequency: 32.000000 MHz (fund.)
Power Supply Voltage: +1.62 Volt to +3.63 Volt DC
Frequency Stability: ±25 ppm (tolerance "over all" including Frequency tolerance +25±3°C)
Operating Temp.: -20°C/+70°C
Storage Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF max. / 2TTL
-
Current consumption: 3mA Max. at VCC=3.3V
Stand-by current: 2.7μA Max. at VCC=3.3V

Package Unit: 3000pcs/reel

RIVER Electronics (S) Pte Ltd

Typ: SMD-Oscillator HCMOS
Case size: SMD2520-M4 | FCXO-05D
Dimension: 2.5 × 2.0 × 0.9 mm
Frequency: 32.768000 kHz
Power Supply Voltage: +3.3V ±10%
Frequency Stability: ±20 ppm
Operating Temp.: -40°C/+85°C

Package Unite: 3000pcs/reel

UTECH TECHNOLOGY CO.,LTD

Typ: SMD-Oscillator HCMOS - QOS2
Case size: SMD2520-M4
Frequency: 33.330000 MHz
Power Supply Voltage: 1.8 ~3.3 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+105°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000pcs/reel

* Frequency Stability:
inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change,
output load change, aging over 10 years, shock and vibration.

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 33.333300 MHz
Power Supply Voltage: 1.6~3.6 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

Package Unit: 3000pcs/reel

Manufacturer: Epson Electronics
Part No.: X1G004171012012
SG-210STF 33.333300MHZ L

Typ: SMD-Oscillator SG-210STF
Case size: SMD2520-M4
Frequency: 33.333300 MHz
Power Supply Voltage: 1.6 ~ 3.6 Volt
Frequency Stability: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF max.

Package Unit: 3000pcs/reel

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 48.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

'-
UTECH Electronics Technology Co., Ltd.
-
Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 50.000000 MHz
Power Supply Voltage: 1.8 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3
-
* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.
-
Package Unit: 3000pcs/reel

Manufacturer: Epson Electronics
Part No.: X1G002941000612

Typ: SMD-Oscillator SG-210SED
Case size: SMD2520-M4
Frequency: 50.000000 MHz
Power Supply Voltage: 1.8 Volt (1.6 ~ 2.2 Volt)
Frequency Stability: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max.

Package Unit: 250/reel

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator HCMOS - QOS2
Case size: SMD2520-M4
Frequency: 50.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3
Packag Unite: 3000 pcs/ reel

* Frequency Stability: inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging over 10 years, shock and vibration.

Manufacturer: Epson Electronics

Part No.: X1G004171012412
Description.: SG-210STF 72.000000MHZ L

Typ: SMD-Oscillator SG-210STF
Case size: SMD2520-M4
Frequency: 72.000000 MHz
Power Supply Voltage: 3.3 Volt (1.6 ~ 3.6 Volt)
Frequency Stability: ±50 ppm
Operating Temp.: -40°C/+85°C

Package Unit: 250/reel

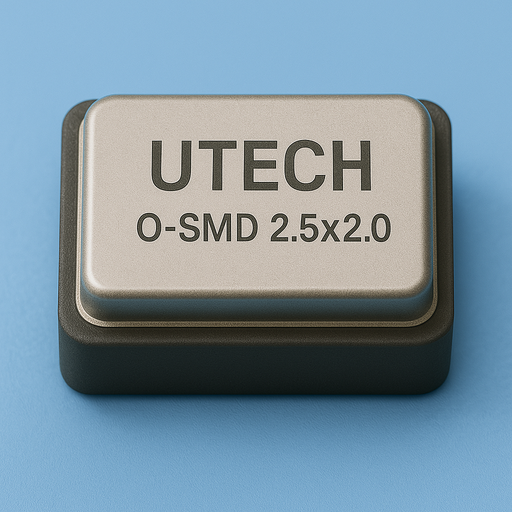

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 1.843200 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 12.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±25 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

'-
Manufacturer: Utech Technology Co., Ltd.
Series: Oscillator SMD2520-M4
Type: QOS2
Dimension (mm): 2.5 x 2.0 x 0.90
Frequency: 13.560000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Load(Impedance): 15 pF ±1.5pF
CMOS/TTL, Tristate
Icc = 7mA max.
Frequency Tolerance: ±25 ppm*
Aging: ±5ppm max. per year (at +25°C ±5°C)
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Package Unit: 1000pcs/reel
-
*(Incl. Freq. Tolerance, Temp., Supply Voltage and Load)

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 14.745600 MHz
Power Supply Voltage: 3.3 Volt
Supply Current: 10 mA max.
Frequency Stability *: ±30 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000 pcs / reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

'-
UTECH Electronics Technology Co., Ltd.
-
Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 15.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3
-
* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.
-
Package Unit: 3000pcs/reel

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 16.000000 MHz
Power Supply Voltage: 1.6 ~3.6 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 20.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±25 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000
