  2. O-SMD2520-M4–25.000000 MHz-3.3-30-40105
O-SMD2520-M4–25.000000 MHz-3.3-30-40105

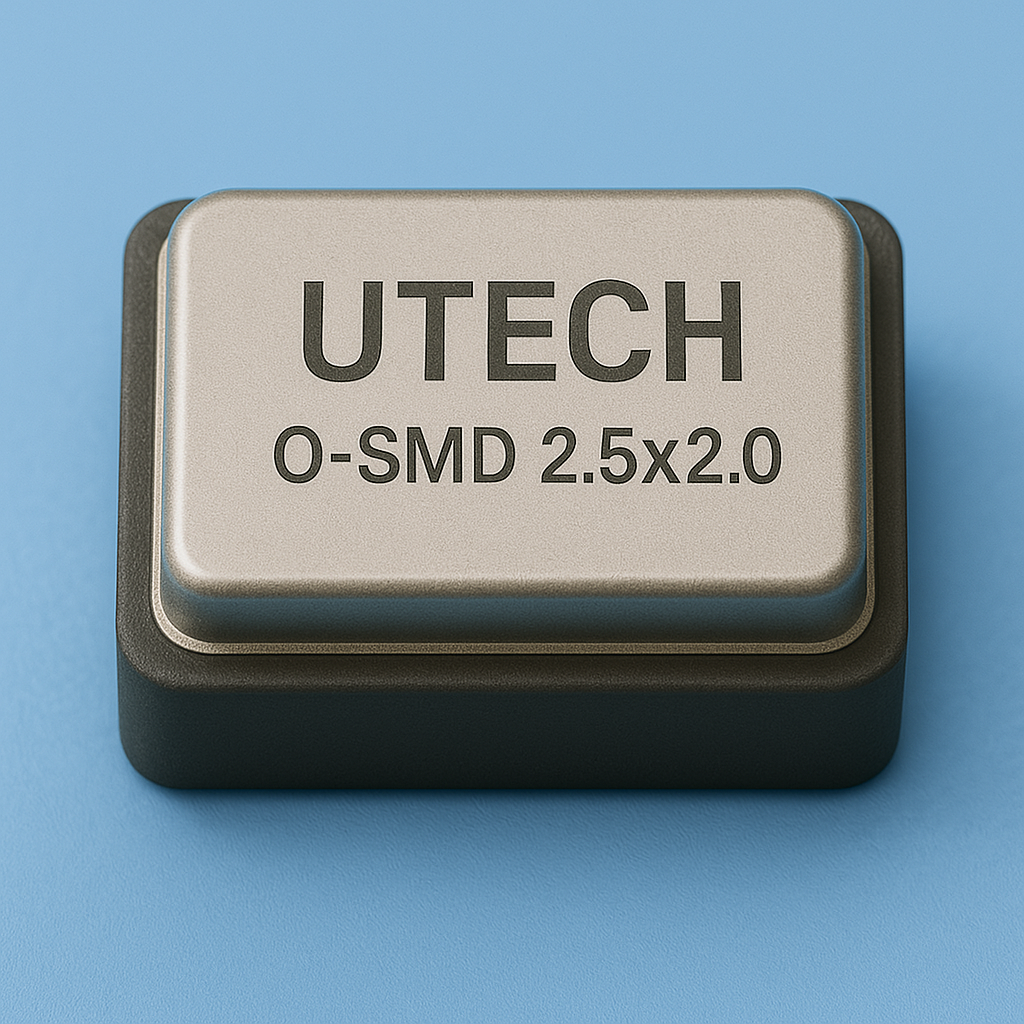

[20-0120] O-SMD2520-M4–25.000000 MHz-3.3-30-40105

https://www.quarzwerk.net/web/image/product.template/8049/image_1920?unique=cbafd41

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 25.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±30 ppm
Operating Temp.: -40°C/+105°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

0.00 EUR 0.0 EUR 0.00 EUR VAT Excluded

0.00 EUR VAT Excluded

Not Available For Sale

  • 3.01 Nominal Frequency (Fo)
  • 3.02 Supply Voltage (VDD)
  • 3.03 Input Current
  • O 3.04 Frequency Stability Over All *
  • O 3.05 Operating Temp. Range
  • 3.07 Output Logic
  • 3.08 Output Load
  • 3.09 “1” Level
  • 3.10 “0” Level
  • O 3.12 Symmetry
  • O 3.13 Rise / Fall Time
  • O 3.14 Output Disable / Enable Delay Time
  • O 3.15 Start-up Time
  • A 1.02 Type
  • Manufacturer
  • O 3.05 Operating Temperature Range

This combination does not exist.

Contact Us


Specifications

OSCILLATOR
3.01 Nominal Frequency (Fo) 25.000000 MHz
3.02 Supply Voltage (VDD) 3,3
3.03 Input Current -
O 3.04 Frequency Stability Over All * 30
O 3.05 Operating Temp. Range -40°C ~ +105°C
3.07 Output Logic -
3.08 Output Load 30pF
3.09 “1” Level -
3.10 “0” Level -
O 3.12 Symmetry -
O 3.13 Rise / Fall Time -
O 3.14 Output Disable / Enable Delay Time -
O 3.15 Start-up Time -
Uncategorized
A 1.02 Type SMD2520
Manufacturer SUZHOU UTECH TECHNOLOGY CO.,LTD
O 3.05 Operating Temperature Range -
