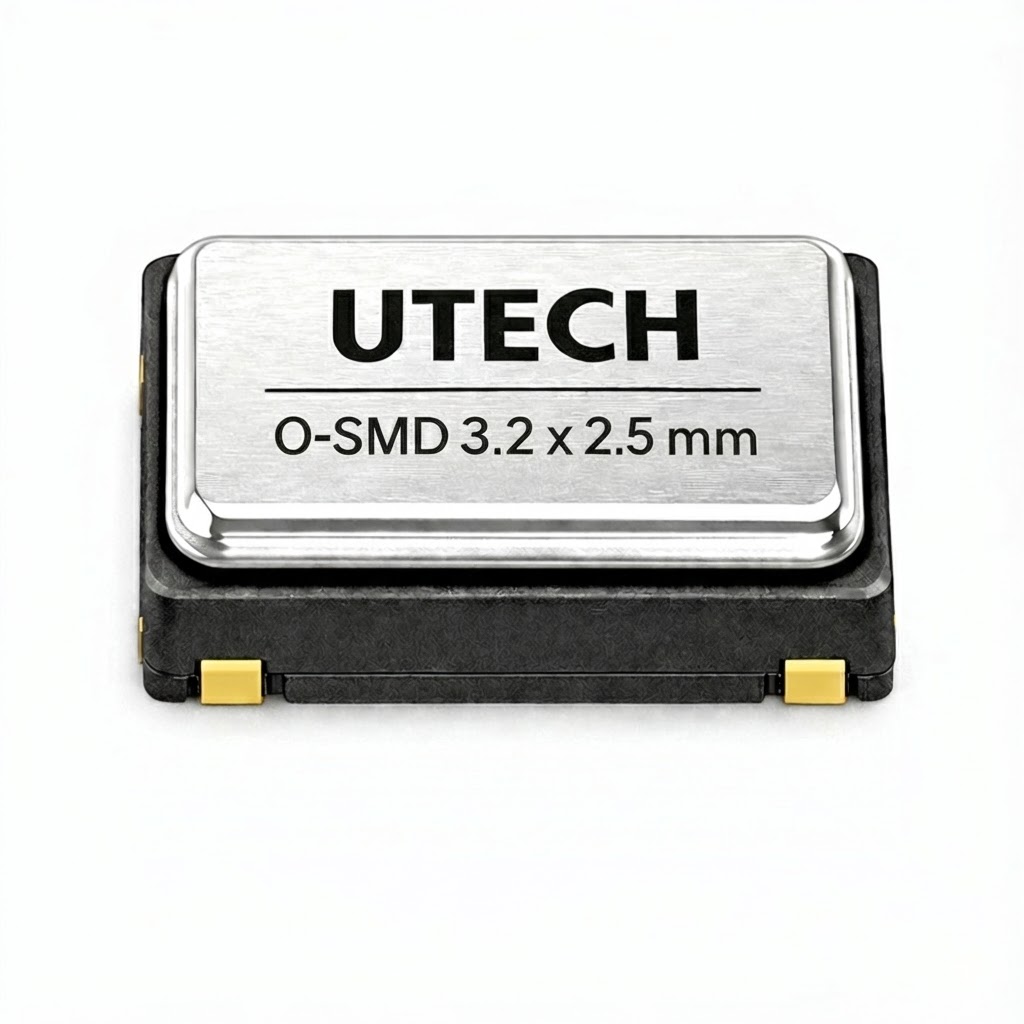

O-SMD3225-M4-50.000000 MHz-3.3-25-4085
Produktstatus:
● AKTIV
UTECH Electronics Technology Co., Ltd.
Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 50.000000 MHz
Power Supply Voltage: 3.3 Volt ±5%
Input Current: 2.5 mA max. (no load)
Frequency Stability *: ±25 ppm
Symmetry: 50% ±5% typ.
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3
* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.
Specifications
| ALL | |
|---|---|
| A 1.00 Manufacturer Name | UTECH |
| A 1.01 Manufacturer Part No. | QOS3050000K33C |
| A 1.02 Description | Quartz Crystal Oscillator |
| A 1.03 Series | QOS3 |
| A 1.04 Dimension & Type | MHz | SMD3225 (3.2 x 2.5 mm) |
| A 1.05 PU | TR3000 |
| A 1.06 Date Created | 2026 |
| OSCILLATOR | |
|---|---|
| 3.01 Nominal Frequency (Fo) | 50.000000 MHz |
| 3.02 Supply Voltage (VDD) | 3.3 |
| 3.03 Input Current | 2.5 mA |
| O 3.04 Frequency Stability Over All * | 25.0 |
| O 3.05 Operating Temp. Range | -40°C ~ +85°C |
| 3.07 Output Logic | HCMOS |
| 3.08 Output Load | 15pF |
| 3.09 “1” Level | 90% VDD min. |
| 3.10 “0” Level | Voltage: 3.3 Volt ±5% |
| O 3.11 Symmetry | - |
| O 3.12 Rise / Fall Time | - |
| O 3.13 Output Disable / Enable Delay Time | - |
| O 3.14 Start-up Time | - |
