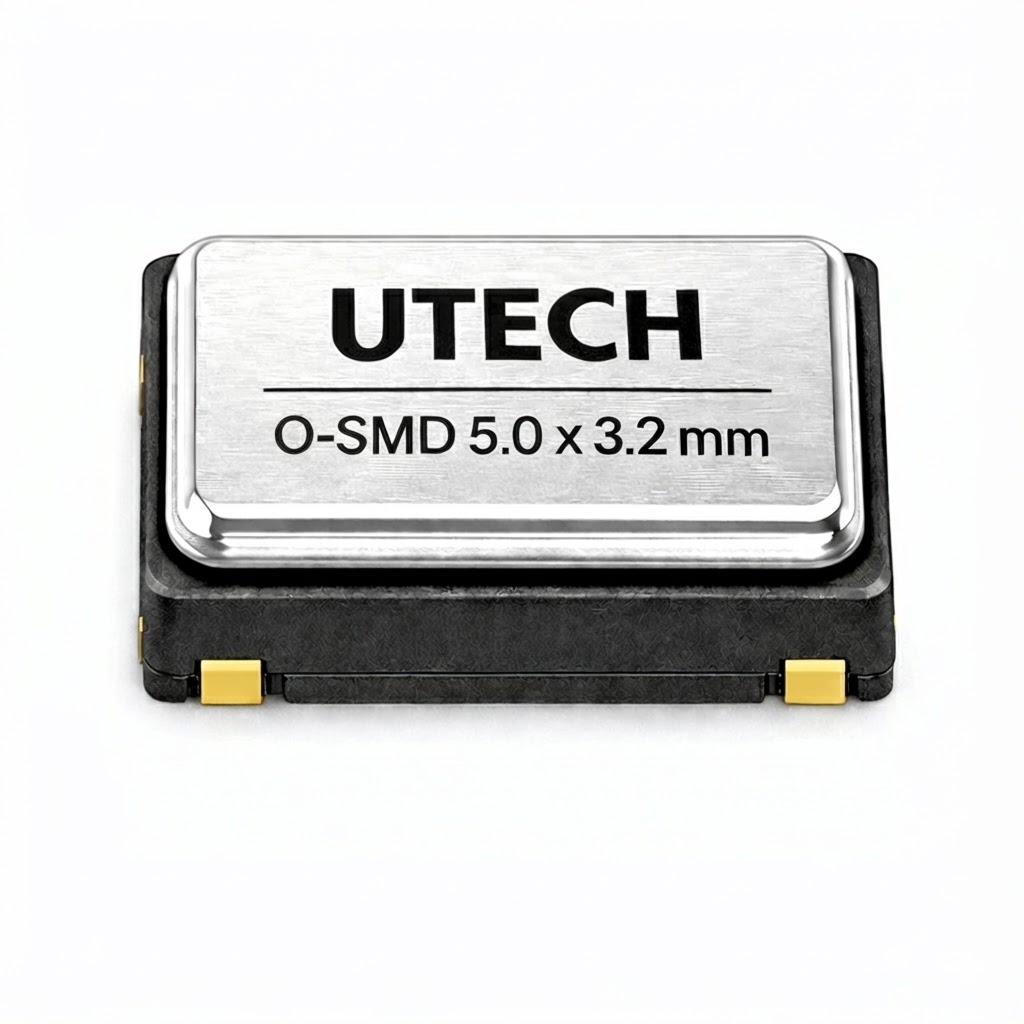

O-SMD5032-M4–36.000000 MHz-3.3-25-4085
Produktstatus:
● AKTIV
UTECH Electronics Technology Co., Ltd.
Typ: SMD-Oscillator
Case size: SMD5032-M4 | QOS5
Frequency: 36.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±25 ppm
Current Consumption: 4.0 mA typ.
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF max.
Pin 1, Tri-State function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3
Package Unit: 1000pcs/reel
* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.
Specifications
| ALL | |
|---|---|
| A 1.00 Manufacturer Name | UTECH |
| A 1.01 Manufacturer Part No. | QOS5036000K33C |
| A 1.02 Description | Quartz Crystal Oscillator |
| A 1.03 Series | QOS5 |
| A 1.04 Dimension & Type | MHz | SMD5032 (5.0 x 3.2 mm) |
| A 1.05 PU | TR1000 |
| A 1.06 Date Created | 2026 |
| OSCILLATOR | |
|---|---|
| 3.01 Nominal Frequency (Fo) | 36.000000 MHz |
| 3.02 Supply Voltage (VDD) | 3.3 |
| 3.03 Input Current | 4.0 mA |
| O 3.04 Frequency Stability Over All * | 25.0 |
| O 3.05 Operating Temp. Range | -40°C ~ +85°C |
| 3.07 Output Logic | HCMOS |
| 3.08 Output Load | 15pF |
| 3.09 “1” Level | 90% VDD min. |
| 3.10 “0” Level | Voltage: 3.3 Volt |
| O 3.11 Symmetry | - |
| O 3.12 Rise / Fall Time | - |
| O 3.13 Output Disable / Enable Delay Time | - |
| O 3.14 Start-up Time | - |
