  2. O-SMD2520-M4–15.000000 MHz-3.3-50-4085
O-SMD2520-M4–15.000000 MHz-3.3-50-4085

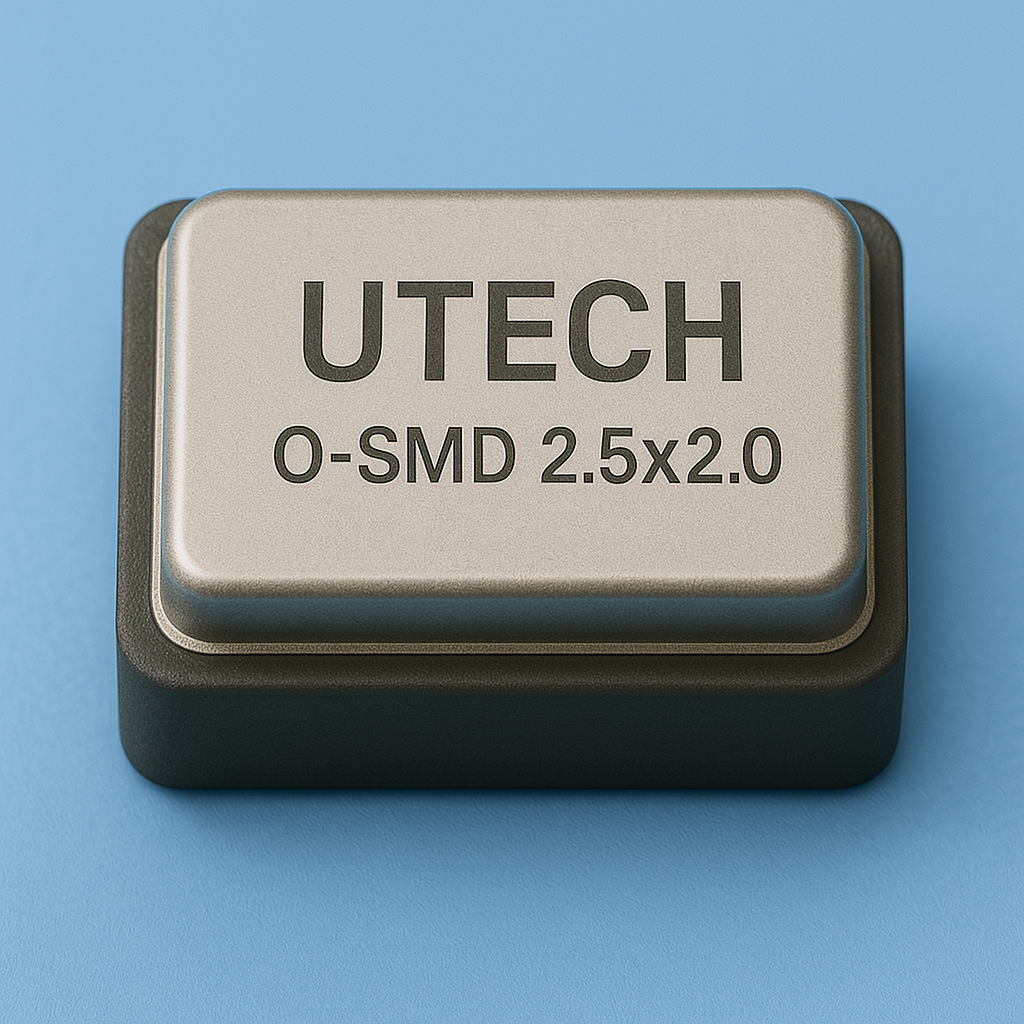

[20-0079] O-SMD2520-M4–15.000000 MHz-3.3-50-4085

https://www.quarzwerk.net/web/image/product.template/8045/image_1920?unique=cbafd41

'-
UTECH Electronics Technology Co., Ltd.
-
Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 15.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3
-
* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.
-
Package Unit: 3000pcs/reel

0.00 EUR 0.0 EUR 0.00 EUR VAT Excluded

0.00 EUR VAT Excluded

Not Available For Sale

  • 3.01 Nominal Frequency (Fo)
  • 3.02 Supply Voltage (VDD)
  • 3.03 Input Current
  • O 3.04 Frequency Stability Over All *
  • O 3.05 Operating Temp. Range
  • 3.07 Output Logic
  • 3.08 Output Load
  • 3.09 “1” Level
  • 3.10 “0” Level
  • O 3.12 Symmetry
  • O 3.13 Rise / Fall Time
  • O 3.14 Output Disable / Enable Delay Time
  • O 3.15 Start-up Time
  • A 1.02 Type
  • Manufacturer
  • O 3.05 Operating Temperature Range

This combination does not exist.

Contact Us


Specifications

OSCILLATOR
3.01 Nominal Frequency (Fo) 15.000000 MHz
3.02 Supply Voltage (VDD) 3,3
3.03 Input Current -
O 3.04 Frequency Stability Over All * 50
O 3.05 Operating Temp. Range -40°C ~ +85°C
3.07 Output Logic -
3.08 Output Load 30pF
3.09 “1” Level -
3.10 “0” Level -
O 3.12 Symmetry -
O 3.13 Rise / Fall Time -
O 3.14 Output Disable / Enable Delay Time -
O 3.15 Start-up Time -
Uncategorized
A 1.02 Type SMD2520
Manufacturer SUZHOU UTECH TECHNOLOGY CO.,LTD
O 3.05 Operating Temperature Range -
