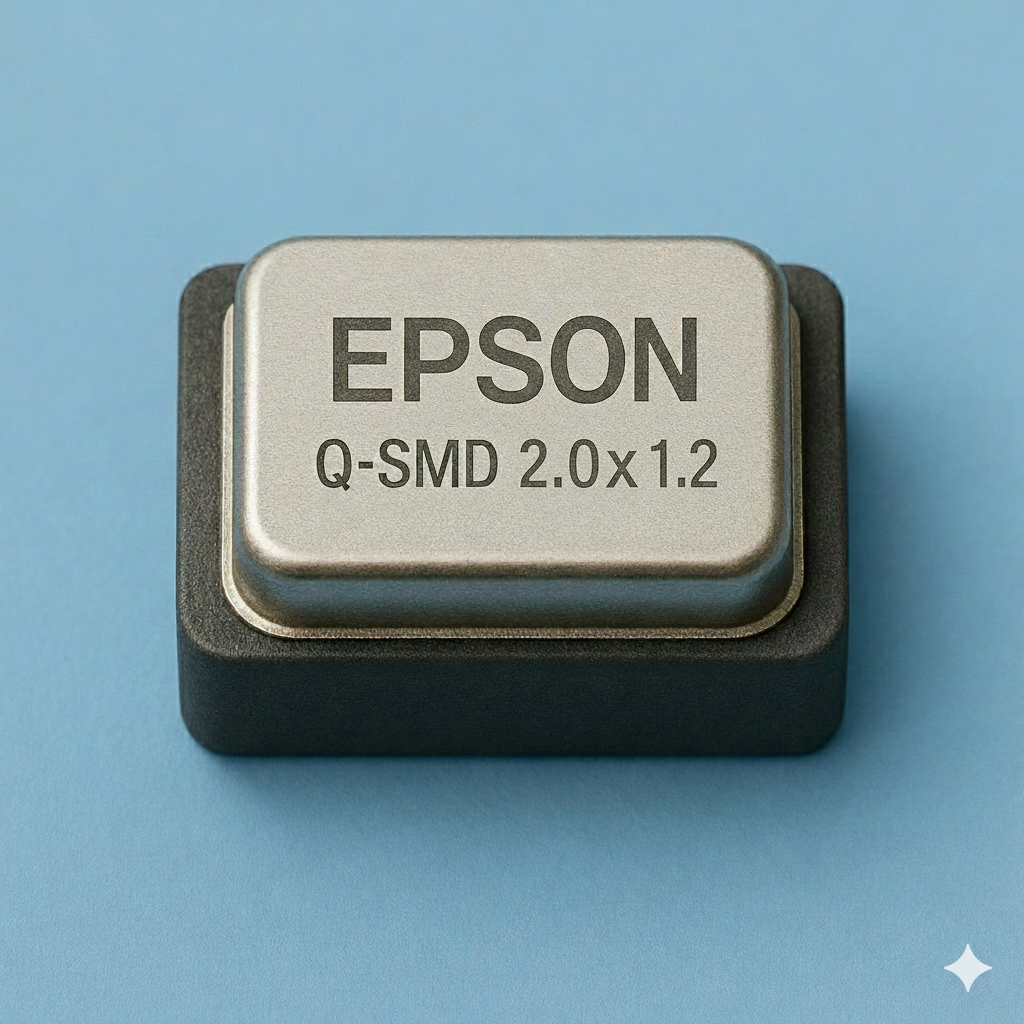

[11-1210] Q-SMD2012-C2-32.768 kHz-9-20-4085-LESR | Epson FC2012AN

Manufacturer: Seiko Epson Corporation
Epson PN: X1A000171000211

Case Size: SMD2012-C2 | Epson FC2012AN
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 9.0 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
……[TC: -0,030ppm/°C² typ., -0,040ppm/°C² max.]

ESR max.:
35000 Ohm at +25°C
50000 Ohm at -40°C to +85°C
60000 Ohm at -40°C to +105°C

Operating Temp.: -40°C/+105°C

Package Unit: 3000pcs/reel

0.00 EUR 0.0 EUR 0.00 EUR VAT Excluded

0.00 EUR VAT Excluded

A 1.00 Manufacturer Name
A 1.03 Type
- Quartz Crystal Resonator
Q 3.01 Nominal frequency (Fo)
3.02 Oscillation Mode
3.03 Load Capacitance (CL)
Q 3.04 Freq. Tol. max. (at +25℃)
Q 3.05 Freq. Stability Vs Temp. max.:
Q 3.06 Operating Temp. Range
Q 3.07 Storage Temp. Range
Q 3.08 Equivalent Res. (ESR)
Q 3.09 Shunt Capacitance
3.10 Drive Level (Typical)
3.11 Drive Level (max)
3.12 Insulation Resistance
3.13 Air-tightness
3.14 Aging
A 1.01 Manufacturer Part No.
A 1.04 Dimension & Type
- SMD2012 (2.0 x 1.2 mm)
Q 1.4 Version

This combination does not exist.

Add to cart

Specifications

ALLE
A 1.00 Manufacturer Name	Seiko Epson Corporation
A 1.03 Type	Quartz Crystal Resonator

QUARZ
Q 3.01 Nominal frequency (Fo)	32.768 kHz
3.02 Oscillation Mode	XY
3.03 Load Capacitance (CL)	9.0 pF
Q 3.04 Freq. Tol. max. (at +25℃)	20 ppm
Q 3.05 Freq. Stability Vs Temp. max.:	-
Q 3.06 Operating Temp. Range	-
Q 3.07 Storage Temp. Range	-
Q 3.08 Equivalent Res. (ESR)	0
Q 3.09 Shunt Capacitance	-
3.10 Drive Level (Typical)	-
3.11 Drive Level (max)	-
3.12 Insulation Resistance	-
3.13 Air-tightness	-
3.14 Aging	-

Uncategorized
A 1.01 Manufacturer Part No.	-
A 1.04 Dimension & Type	SMD2012 (2.0 x 1.2 mm)
Q 1.4 Version	-
