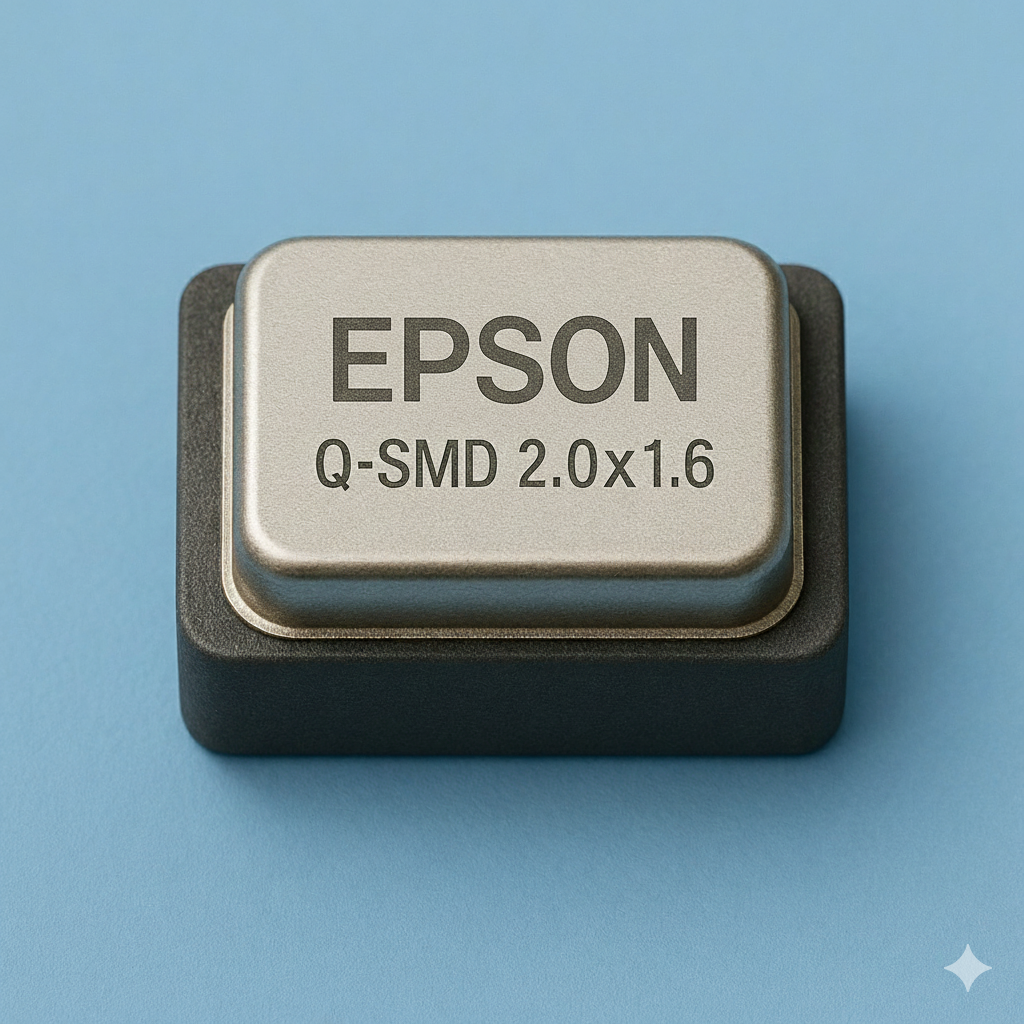

Q-SMD2016-M4-48.000000 MHz-FU-11-10/12-3085 (ESR22R)

[11-0579] Q-SMD2016-M4-48.000000 MHz-FU-11-10/12-3085 (ESR22R)

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 3000pcs/reel

0.0000 EUR 0.0 EUR 0.0000 EUR

0.0000 EUR

Quantity	Unit Price
from 31	0.3500 EUR
from 100	0.2500 EUR
from 1000	0.1850 EUR
from 3000	0.1450 EUR

A 1.00 Manufacturer Name
- EPSON
A 1.03 Type
- Quartz Crystal Resonator
A 1.04 Dimension & Type
Q 3.01 Nominal frequency (Fo)
Q 3.02 Oscillation Mode
Q 3.03 Load Capacitance (CL)
Q 3.04 Freq. Tol. max. (at +25℃)
Q 3.05 Freq. Stability Vs Temp. max.:
Q 3.06 Operating Temp. Range
Q 3.07 Storage Temp. Range
Q 3.10 Drive Level
Q 3.11 Drive Level
Q 3.14 Aging
A 1.01 Manufacturer Part No.
Q 1.4 Version

This combination does not exist.

Specifications

ALLE
A 1.00 Manufacturer Name	EPSON
A 1.03 Type	Quartz Crystal Resonator
A 1.04 Dimension & Type	SMD2016 (2.0 x 1.6 mm)

QUARZ
Q 3.01 Nominal frequency (Fo)	48.000000 MHz
Q 3.02 Oscillation Mode	Fundamental AT
Q 3.03 Load Capacitance (CL)	11.0 pF
Q 3.04 Freq. Tol. max. (at +25℃)	±10 ppm
Q 3.05 Freq. Stability Vs Temp. max.:	±12 ppm
Q 3.06 Operating Temp. Range	-30°C ~ +85°C
Q 3.07 Storage Temp. Range	-55°C ~ +125°C
Q 3.10 Drive Level	10 µW
Q 3.11 Drive Level	200 µW
Q 3.14 Aging	±1 ppm max first year

Uncategorized
A 1.01 Manufacturer Part No.	-
Q 1.4 Version	-
