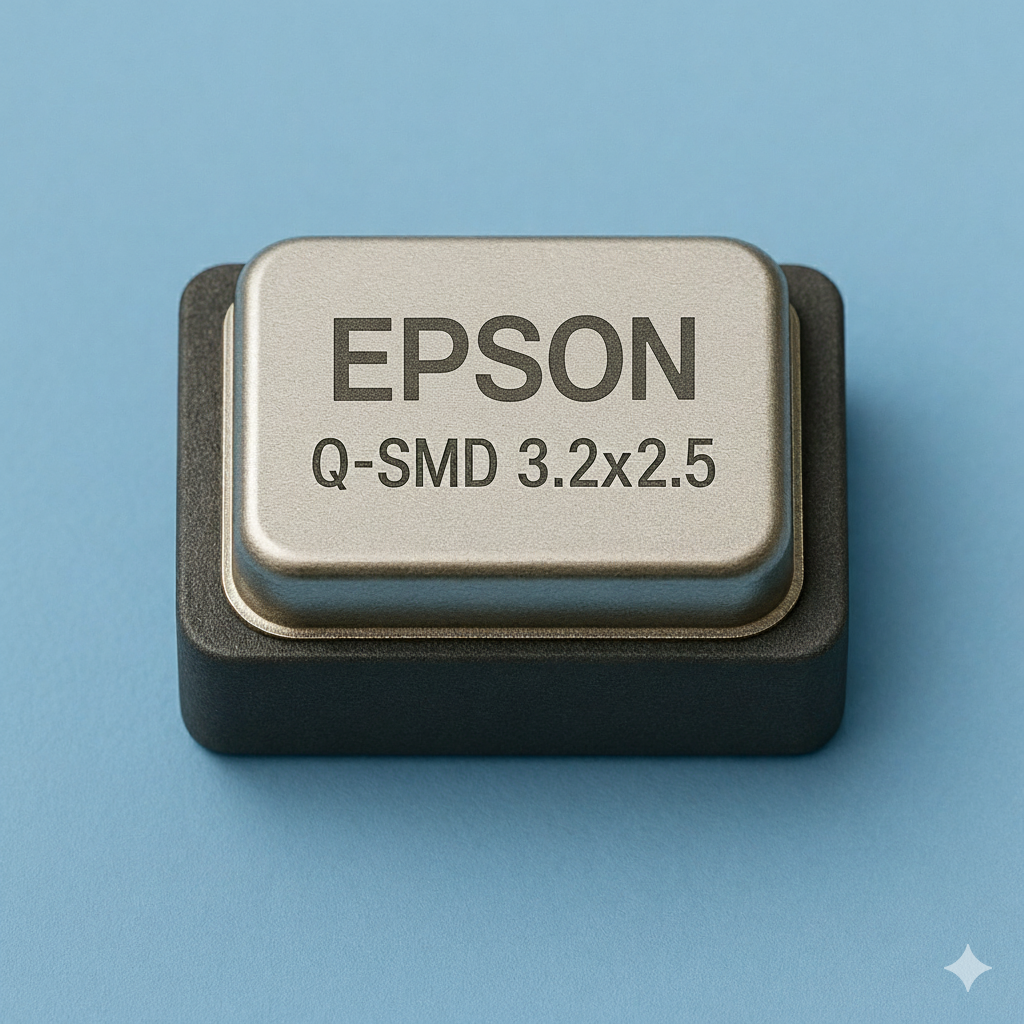

[11-0068] Q-SMD3225-M4-25.000000 MHz-FU-8-10/20-1075 | Epson TSX-3225 (1000pcs/reel) | X1E0000210131xx

Manufakturen: Seiko EPSON Corp
EPSON PN: X1E000021013114

Case Size: SMD3225-M4 | TSX-3225
Frequency: 25.000000 MHz
Mode: fund. AT
Load Capacitance: 8.0 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±20 ppm @ -10/+75°C
Aging: ±1ppm max 1 year
ESR max.: 40 Ohm
Operating Temp.: -10°C/+75°C

Package Unit: 1000pcs/reel

0.0000 EUR 0.0 EUR 0.0000 EUR

0.0000 EUR

Quantity	Unit Price
from 0	0.0980 EUR
from 1	0.0000 EUR
from 30	0.2500 EUR
from 100	0.1750 EUR
from 1000	0.1250 EUR
from 3000	0.0980 EUR

A 1.00 Manufacturer Name
- EPSON
A 1.03 Type
- Quartz Crystal Resonator
A 1.04 Dimension & Type
Q 3.01 Nominal frequency (Fo)
Q 3.02 Oscillation Mode
Q 3.03 Load Capacitance (CL)
Q 3.04 Freq. Tol. max. (at +25℃)
Q 3.05 Freq. Stability Vs Temp. max.:
Q 3.06 Operating Temp. Range
Q 3.07 Storage Temp. Range
Q 3.08 Equivalent Res. (ESR)
Q 3.09 Shunt Capacitance
Q 3.10 Drive Level
Q 3.11 Drive Level
Q 3.12 Insulation Resistance
Q 3.13 Air-tightness
Q 3.14 Aging

This combination does not exist.

Add to cart

Specifications

ALLE
A 1.00 Manufacturer Name	EPSON
A 1.03 Type	Quartz Crystal Resonator
A 1.04 Dimension & Type	SMD3225 (3.2 x 2.5 mm)

QUARZ
Q 3.01 Nominal frequency (Fo)	25.000000 MHz
Q 3.02 Oscillation Mode	Fundamental AT
Q 3.03 Load Capacitance (CL)	8.0 pF
Q 3.04 Freq. Tol. max. (at +25℃)	-
Q 3.05 Freq. Stability Vs Temp. max.:	-
Q 3.06 Operating Temp. Range	-10°C ~ +75°C
Q 3.07 Storage Temp. Range	-55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR)	40
Q 3.09 Shunt Capacitance	-
Q 3.10 Drive Level	-
Q 3.11 Drive Level	-
Q 3.12 Insulation Resistance	-
Q 3.13 Air-tightness	-
Q 3.14 Aging	-
