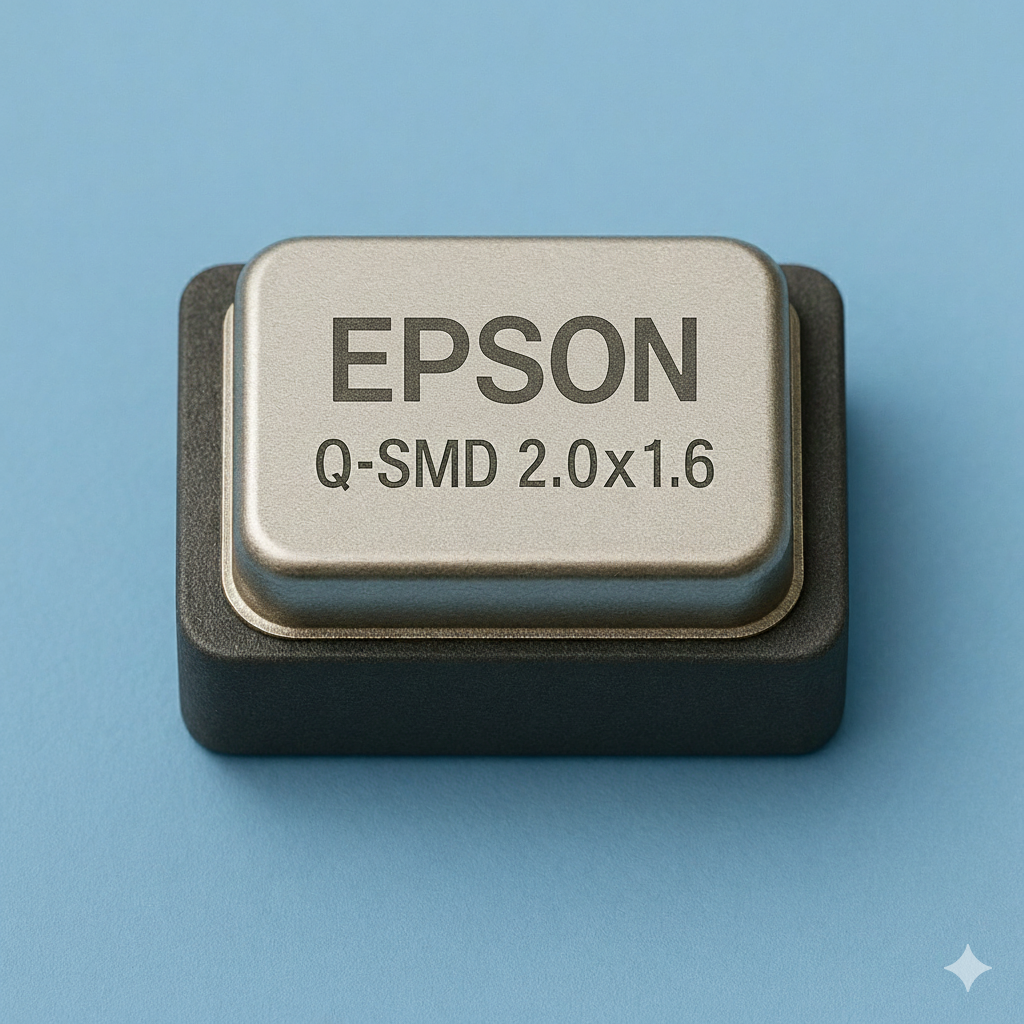

[11-0065] Q-SMD2016-M4-38.400000 MHz-FU-8-10/12-3085 | Epson FA2016ASA

Manufacturer: Seiko Epson Corporation

Part No.: X1E000431000116

Case Size: FA2016ASA (2.0 × 1.6 × 0.68 mm) / SMD2016-M4
Frequency: 38.400000 MHz
Mode: fund. AT
Load Capacitance: 8.0 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±12 ppm
Aging: ±1 ppm max. 1 year
ESR max.: 50 Ohm
Operating Temp.: -30°C/+85°C

RoHS: Pb free - 2011/65/EU (RoHS 2) compliant

Package Unit: 3000 pcs/reel

0.0000 EUR 0.0 EUR 0.0000 EUR

0.0000 EUR

Quantity	Unit Price
from 31	0.3500 EUR
from 100	0.2500 EUR
from 1000	0.1850 EUR
from 3000	0.1450 EUR

A 1.00 Manufacturer Name
- EPSON
A 1.03 Type
- Quartz Crystal Resonator
A 1.04 Dimension & Type
Q 3.01 Nominal frequency (Fo)
Q 3.02 Oscillation Mode
Q 3.03 Load Capacitance (CL)
Q 3.04 Freq. Tol. max. (at +25℃)
Q 3.05 Freq. Stability Vs Temp. max.:
Q 3.06 Operating Temp. Range
Q 3.07 Storage Temp. Range
Q 3.08 Equivalent Res. (ESR)
Q 3.09 Shunt Capacitance
Q 3.10 Drive Level
Q 3.11 Drive Level
Q 3.12 Insulation Resistance
Q 3.13 Air-tightness
Q 3.14 Aging
A 1.01 Manufacturer Part No.
Q 1.4 Version

This combination does not exist.

Add to cart

Specifications

ALLE
A 1.00 Manufacturer Name	EPSON
A 1.03 Type	Quartz Crystal Resonator
A 1.04 Dimension & Type	SMD2016 (2.0 x 1.6 mm)

QUARZ
Q 3.01 Nominal frequency (Fo)	38.400000 MHz
Q 3.02 Oscillation Mode	Fundamental AT
Q 3.03 Load Capacitance (CL)	8.0 pF
Q 3.04 Freq. Tol. max. (at +25℃)	-
Q 3.05 Freq. Stability Vs Temp. max.:	-
Q 3.06 Operating Temp. Range	-30°C ~ +85°C
Q 3.07 Storage Temp. Range	-55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR)	50
Q 3.09 Shunt Capacitance	-
Q 3.10 Drive Level	-
Q 3.11 Drive Level	-
Q 3.12 Insulation Resistance	-
Q 3.13 Air-tightness	-
Q 3.14 Aging	-

Uncategorized
A 1.01 Manufacturer Part No.	-
Q 1.4 Version	-
