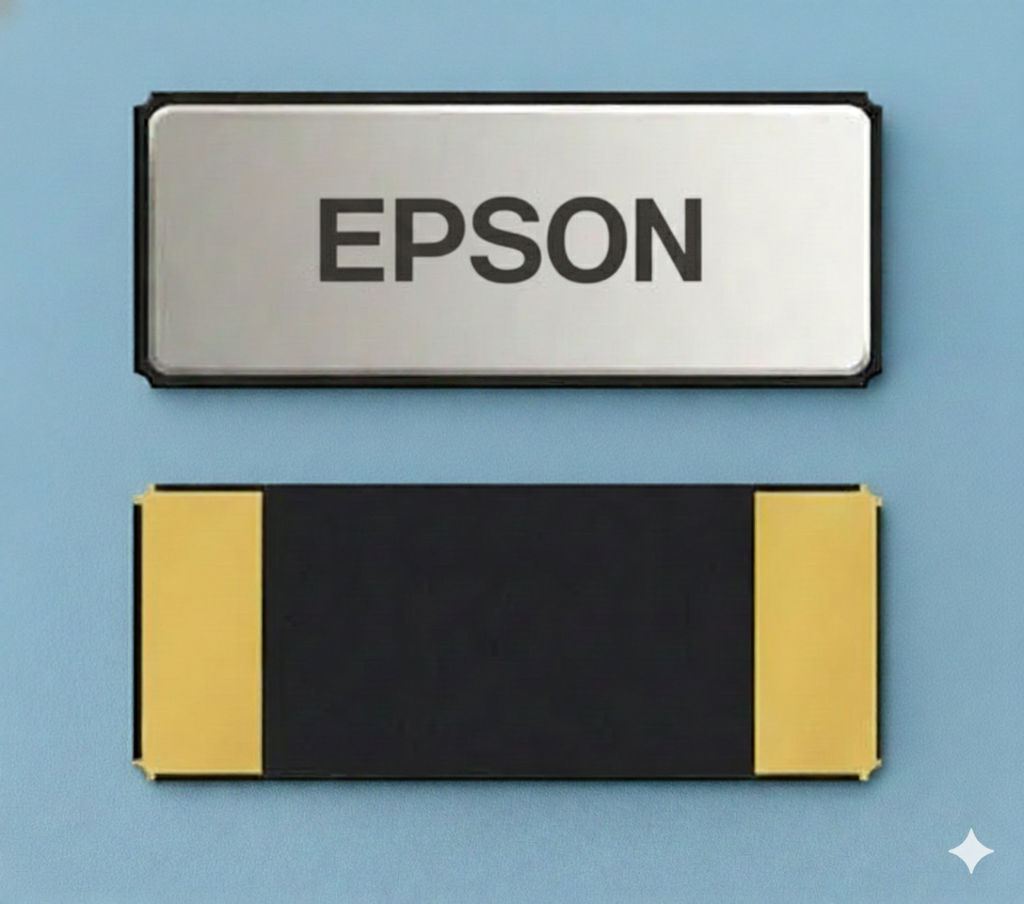

[11-0016] Q-SMD3215-C2-32.768 kHz-12.5-20-4085 | Epson FC-13A

'-
Epson pN: X1A0000910001xx
-
Manufacturer: EPSON
Case Size: FC-13A (SMD3215-C2)
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 12.5 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
……[TC: -0,030ppm/°C² typ., -0,040ppm/°C² max.]
ESR max.: 70000 Ohm
Operating Temp.: -40°C/+85°C
RoHS : Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

-
X1A000091000101 (samples)
X1A000091000111
X1A000091000112 (250 in package)
X1A000091000114 (1000 in package)
X1A000091000100 (3000 in package)

0.0000 EUR 0.0 EUR 0.0000 EUR

0.0000 EUR

Quantity	Unit Price
from 1	0.0000 EUR

A 1.00 Manufacturer Name
- EPSON
A 1.03 Type
- Quartz Crystal Resonator
A 1.04 Dimension & Type
Q 3.01 Nominal frequency (Fo)
Q 3.02 Oscillation Mode
Q 3.03 Load Capacitance (CL)
Q 3.04 Freq. Tol. max. (at +25℃)
Q 3.05 Freq. Stability Vs Temp. max.:
Q 3.06 Operating Temp. Range
Q 3.07 Storage Temp. Range
Q 3.08 Equivalent Res. (ESR)
Q 3.09 Shunt Capacitance
Q 3.10 Drive Level
Q 3.11 Drive Level
Q 3.12 Insulation Resistance
Q 3.13 Air-tightness
Q 3.14 Aging
A 1.01 Manufacturer Part No.
Q 1.4 Version

This combination does not exist.

Add to cart

Specifications

ALLE
A 1.00 Manufacturer Name	EPSON
A 1.03 Type	Quartz Crystal Resonator
A 1.04 Dimension & Type	SMD3215 (3.2 x 1.5 mm)

QUARZ
Q 3.01 Nominal frequency (Fo)	32.768 kHz
Q 3.02 Oscillation Mode	XY
Q 3.03 Load Capacitance (CL)	12.5 pF
Q 3.04 Freq. Tol. max. (at +25℃)	20 ppm
Q 3.05 Freq. Stability Vs Temp. max.:	-
Q 3.06 Operating Temp. Range	-
Q 3.07 Storage Temp. Range	-
Q 3.08 Equivalent Res. (ESR)	0
Q 3.09 Shunt Capacitance	-
Q 3.10 Drive Level	-
Q 3.11 Drive Level	-
Q 3.12 Insulation Resistance	-
Q 3.13 Air-tightness	-
Q 3.14 Aging	-

Uncategorized
A 1.01 Manufacturer Part No.	-
Q 1.4 Version	-
