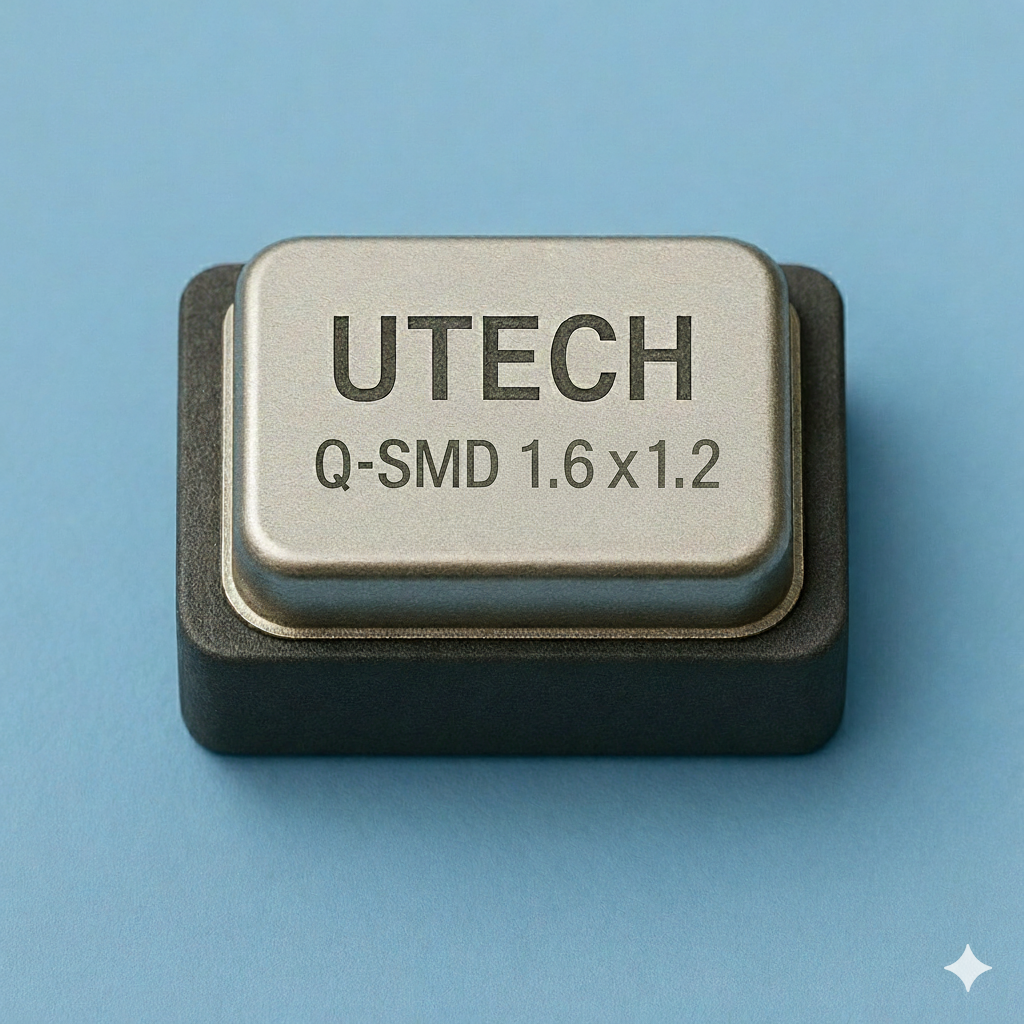

Q-SMD1612-M4-52.000000 MHz-FU-9-10/20-40105

[10-0923] Q-SMD1612-M4-52.000000 MHz-FU-9-10/20-40105

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000

0.0000 EUR 0.0 EUR 0.0000 EUR

0.0000 EUR

Quantity	Unit Price
from 1	0.0000 EUR
from 30	0.0000 EUR
from 100	0.0000 EUR
from 1000	0.0000 EUR
from 3000	0.0000 EUR

A 1.00 Manufacturer Name
- UTECH
A 1.03 Type
- Quartz Crystal Resonator
A 1.03 Date
- 2025-10-20
A 1.04 Dimension & Type
Q 3.01 Nominal frequency (Fo)
Q 3.02 Oscillation Mode
Q 3.03 Load Capacitance (CL)
Q 3.04 Freq. Tol. max. (at +25℃)
Q 3.05 Freq. Stability Vs Temp. max.:
Q 3.06 Operating Temp. Range
Q 3.07 Storage Temp. Range
Q 3.08 Equivalent Res. (ESR)
Q 3.09 Shunt Capacitance
Q 3.10 Drive Level
Q 3.11 Drive Level
Q 3.12 Insulation Resistance
Q 3.13 Air-tightness
Q 3.14 Aging
Q 3.20 Note
A 1.04 VPE
A 1.05 Last Update
- -

This combination does not exist.

Specifications

ALLE
A 1.00 Manufacturer Name	UTECH
A 1.03 Type	Quartz Crystal Resonator
A 1.04 Dimension & Type	SMD1612 (1.6 x 1.2 mm)

QUARZ
Q 3.01 Nominal frequency (Fo)	52.000000 MHz
Q 3.02 Oscillation Mode	Fundamental AT
Q 3.03 Load Capacitance (CL)	9.0 pF
Q 3.04 Freq. Tol. max. (at +25℃)	10 ppm
Q 3.05 Freq. Stability Vs Temp. max.:	±20 ppm @ -40°C ~ +105°C
Q 3.06 Operating Temp. Range	-40°C ~ +105°C
Q 3.07 Storage Temp. Range	-55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR)	80
Q 3.09 Shunt Capacitance	-
Q 3.10 Drive Level	-
Q 3.11 Drive Level	-
Q 3.12 Insulation Resistance	-
Q 3.13 Air-tightness	-
Q 3.14 Aging	±2 ppm max first year
Q 3.20 Note	Motional capacitance C1: 1.54 fF

Uncategorized
A 1.04 VPE	TR3000
A 1.05 Last Update	-
