  2. Q-HC-49SMD-13.575625 MHz-FU-12-30/50-2070
Q-HC-49SMD-13.575625 MHz-FU-12-30/50-2070

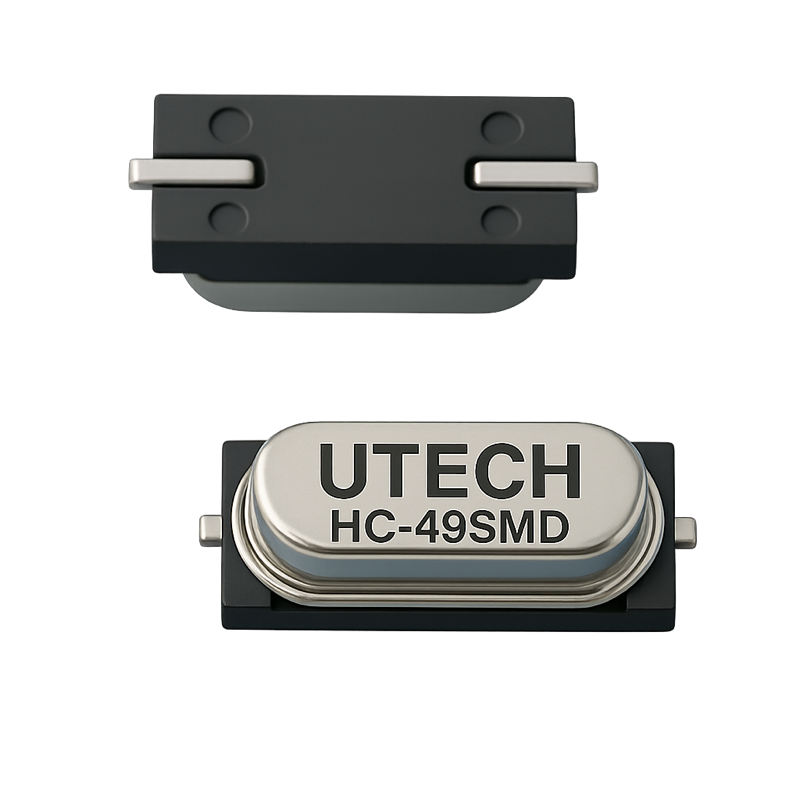

[10-0873] Q-HC-49SMD-13.575625 MHz-FU-12-30/50-2070

https://www.quarzwerk.net/web/image/product.template/8266/image_1920?unique=fac4175

Manufacturer: UTECH Electronics Tech. Co., Ltd.

Series: QRSD
Case size: HC-49SMD3 (11.40 x 4.70 x 4.20)
Frequency: 13.575625 MHz
Mode: fund. AT
Load Capacitance: 12.0 pF
Tolerance at +25°C: ±30 ppm
Tolerance over Temp.: ±50 ppm
Aging: ±3 ppm max. first year, ±10 ppm after 8 years
ESR max.: 40 Ohm

Operating Temp.: -20°C/+70°C

Package Unit: 1000 pcs/reel

0.00 EUR 0.0 EUR 0.00 EUR VAT Excluded

0.00 EUR VAT Excluded

Not Available For Sale

  • A 1.00 Manufacturer Name
  • A 1.03 Type
  • Q 3.01 Nominal frequency (Fo)
  • 3.02 Oscillation Mode
  • 3.03 Load Capacitance (CL)
  • Q 3.04 Freq. Tol. max. (at +25℃)
  • Q 3.05 Freq. Stability Vs Temp. max.:
  • Q 3.06 Operating Temp. Range
  • Q 3.07 Storage Temp. Range
  • Q 3.08 Equivalent Res. (ESR)
  • Q 3.09 Shunt Capacitance
  • 3.10 Drive Level (Typical)
  • 3.11 Drive Level (max)
  • 3.12 Insulation Resistance
  • 3.13 Air-tightness
  • 3.14 Aging
  • A 1.01 Manufacturer Part No.
  • A 1.04 Dimension & Type
  • Q 1.4 Version

This combination does not exist.

Contact Us


Specifications

ALLE
A 1.00 Manufacturer Name SUZHOU UTECH TECHNOLOGY CO.,LTD
A 1.03 Type Quartz Crystal Resonator
QUARZ
Q 3.01 Nominal frequency (Fo) 13.575625 MHz
3.02 Oscillation Mode Fundamental
3.03 Load Capacitance (CL) 12.0 pF
Q 3.04 Freq. Tol. max. (at +25℃) 30 ppm
Q 3.05 Freq. Stability Vs Temp. max.: 50 ppm
Q 3.06 Operating Temp. Range -20°C ~ +70°C
Q 3.07 Storage Temp. Range -55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR) 40
Q 3.09 Shunt Capacitance -
3.10 Drive Level (Typical) -
3.11 Drive Level (max) -
3.12 Insulation Resistance -
3.13 Air-tightness -
3.14 Aging -
Uncategorized
A 1.01 Manufacturer Part No. -
A 1.04 Dimension & Type 49SMD
Q 1.4 Version -
