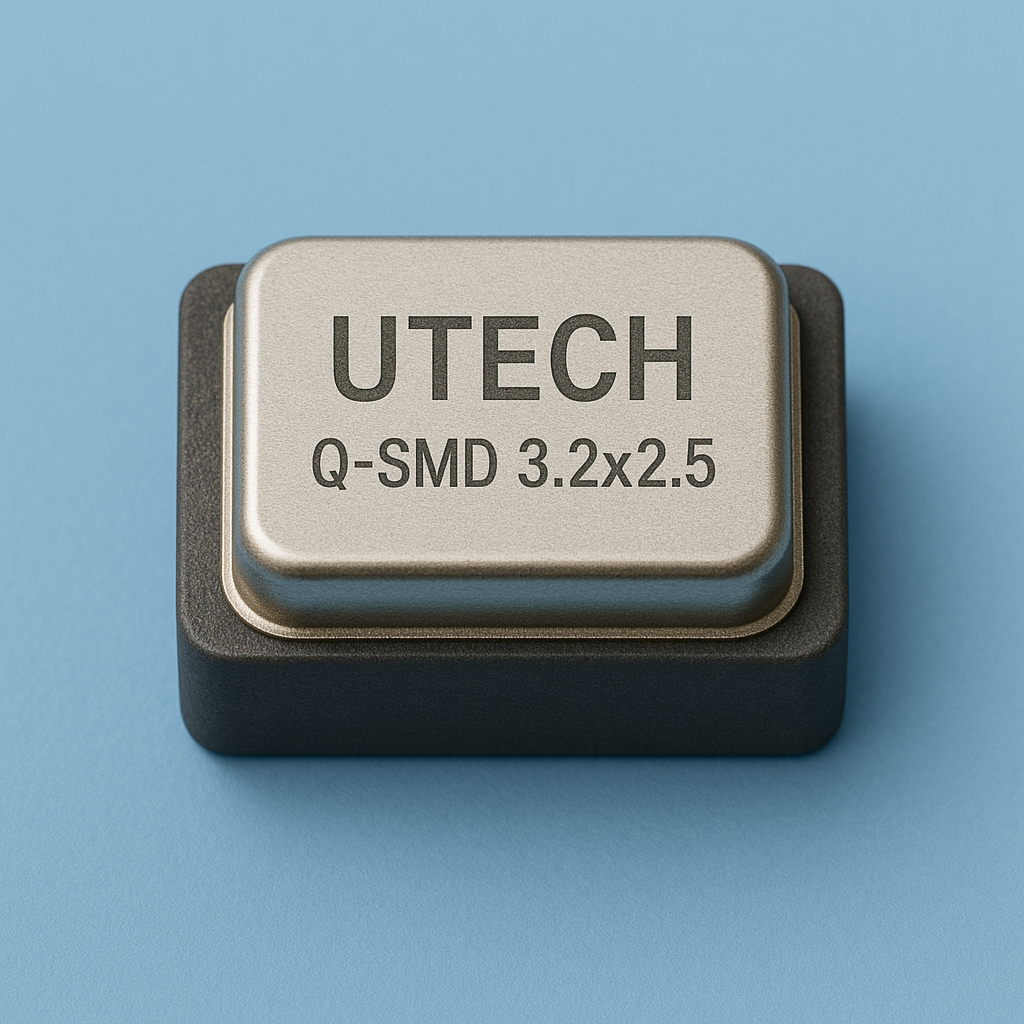

Q-SMD3225-M4-16.666000 MHz-FU-12-30/30-4085

[10-0651] Q-SMD3225-M4-16.666000 MHz-FU-12-30/30-4085

https://www.quarzwerk.net/web/image/product.template/8730/image_1920?unique=cea436c

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD3225-M4
Frequency: 16.666000 MHz
Mode: fund. AT
Load Capacitance: 12 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±1ppm max 1 year
ESR max.: 40 Ohm typ, 60 Ohm max
Operating Temp.: -40°C/+85°C
-
Package Unit: 3000pcs/reel

0.0000 EUR 0.0 EUR 0.0000 EUR

0.0000 EUR

Not Available For Sale

Quantity Unit Price
from 0 0.0980 EUR
from 1 0.0000 EUR
from 30 0.2500 EUR
from 100 0.1750 EUR
from 1000 0.1250 EUR
from 3000 0.0980 EUR
  • A 1.00 Manufacturer Name
  • A 1.03 Type
  • A 1.04 Dimension & Type
  • Q 3.01 Nominal frequency (Fo)
  • Q 3.02 Oscillation Mode
  • Q 3.03 Load Capacitance (CL)
  • Q 3.04 Freq. Tol. max. (at +25℃)
  • Q 3.05 Freq. Stability Vs Temp. max.:
  • Q 3.06 Operating Temp. Range
  • Q 3.07 Storage Temp. Range
  • Q 3.08 Equivalent Res. (ESR)
  • Q 3.09 Shunt Capacitance
  • Q 3.10 Drive Level
  • Q 3.11 Drive Level
  • Q 3.12 Insulation Resistance
  • Q 3.13 Air-tightness
  • Q 3.14 Aging
  • A 1.01 Manufacturer Part No.
  • Q 1.4 Version

This combination does not exist.

Contact Us


Specifications

ALLE
A 1.00 Manufacturer Name UTECH
A 1.03 Type Quartz Crystal Resonator
A 1.04 Dimension & Type SMD3225 (3.2 x 2.5 mm)
QUARZ
Q 3.01 Nominal frequency (Fo) 16.666000 MHz
Q 3.02 Oscillation Mode Fundamental
Q 3.03 Load Capacitance (CL) 12.0 pF
Q 3.04 Freq. Tol. max. (at +25℃) 30 ppm
Q 3.05 Freq. Stability Vs Temp. max.: 30 ppm
Q 3.06 Operating Temp. Range -40°C ~ +85°C
Q 3.07 Storage Temp. Range -55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR) 40
Q 3.09 Shunt Capacitance -
Q 3.10 Drive Level -
Q 3.11 Drive Level -
Q 3.12 Insulation Resistance -
Q 3.13 Air-tightness -
Q 3.14 Aging -
Uncategorized
A 1.01 Manufacturer Part No. -
Q 1.4 Version -
