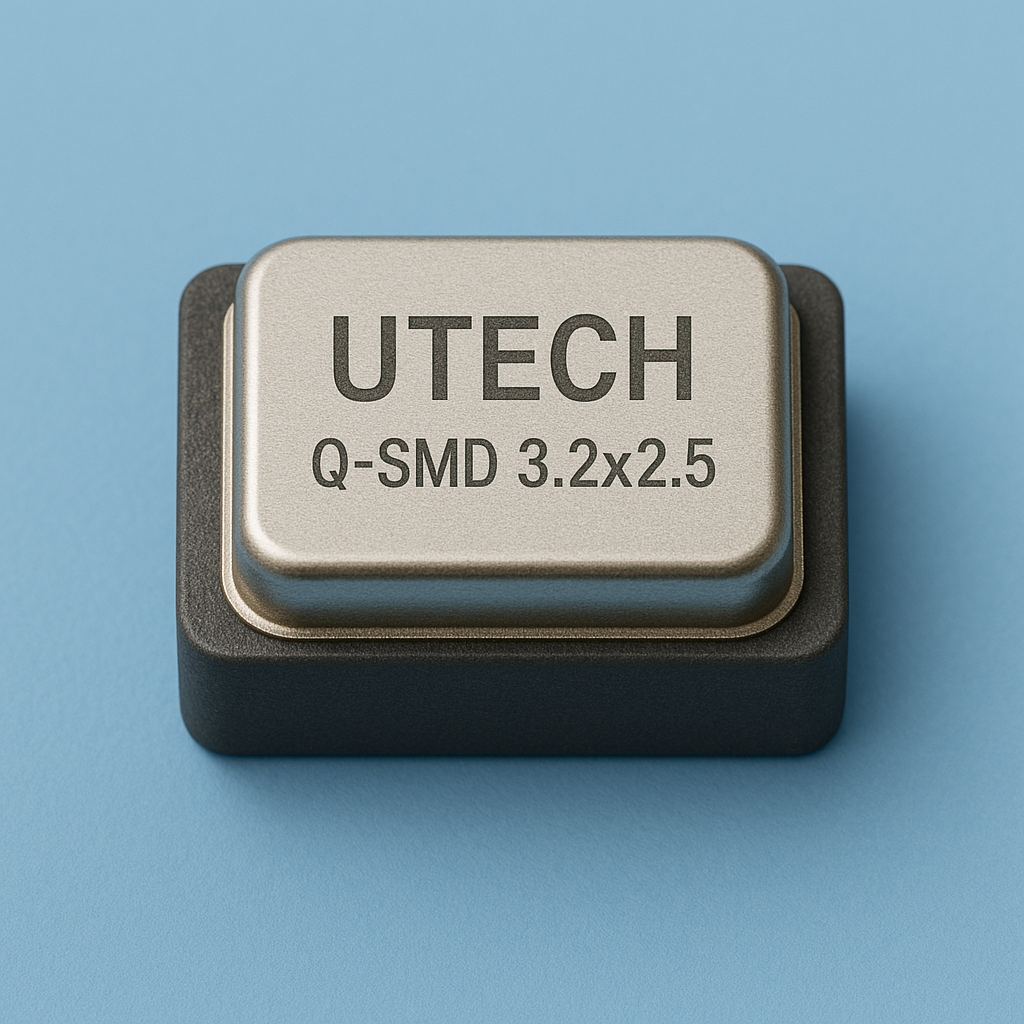

Q-SMD3225-M4-40.000000 MHz-FU-20-9/9-2070

[10-0072] Q-SMD3225-M4-40.000000 MHz-FU-20-9/9-2070

https://www.quarzwerk.net/web/image/product.template/9024/image_1920?unique=11913c7

UTECH Electronics Technology Co., Ltd.

Case Size: SMD3225-M4
Frequency: 40.000000 MHz
Mode: fund. AT-Cut
Load Capacitance: 20.0 pF
Tolerance at +25 °C: ±9 ppm
Tolerance over Temp.: ±9 ppm
ESR max.: 20 Ohm
Operating Temp.: -20°C / +70°C

Package Unit: 3000pcs/reel

0.0000 EUR 0.0 EUR 0.0000 EUR

0.0000 EUR

Not Available For Sale

Quantity Unit Price
from 0 0.0980 EUR
from 1 0.0000 EUR
from 30 0.2500 EUR
from 100 0.1750 EUR
from 1000 0.1250 EUR
from 3000 0.0980 EUR
  • A 1.00 Manufacturer Name
  • A 1.03 Type
  • A 1.04 Dimension & Type
  • Q 3.01 Nominal frequency (Fo)
  • Q 3.02 Oscillation Mode
  • Q 3.03 Load Capacitance (CL)
  • Q 3.04 Freq. Tol. max. (at +25℃)
  • Q 3.05 Freq. Stability Vs Temp. max.:
  • Q 3.06 Operating Temp. Range
  • Q 3.07 Storage Temp. Range
  • Q 3.08 Equivalent Res. (ESR)
  • Q 3.09 Shunt Capacitance
  • Q 3.10 Drive Level
  • Q 3.11 Drive Level
  • Q 3.12 Insulation Resistance
  • Q 3.13 Air-tightness
  • Q 3.14 Aging
  • A 1.01 Manufacturer Part No.
  • Q 1.4 Version

This combination does not exist.

Contact Us


Specifications

ALLE
A 1.00 Manufacturer Name UTECH
A 1.03 Type Quartz Crystal Resonator
A 1.04 Dimension & Type SMD3225 (3.2 x 2.5 mm)
QUARZ
Q 3.01 Nominal frequency (Fo) 40.000000 MHz
Q 3.02 Oscillation Mode Fundamental
Q 3.03 Load Capacitance (CL) 20.0 pF
Q 3.04 Freq. Tol. max. (at +25℃) 9 ppm
Q 3.05 Freq. Stability Vs Temp. max.: 9 ppm
Q 3.06 Operating Temp. Range -20°C ~ +70°C
Q 3.07 Storage Temp. Range -55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR) 20
Q 3.09 Shunt Capacitance -
Q 3.10 Drive Level -
Q 3.11 Drive Level -
Q 3.12 Insulation Resistance -
Q 3.13 Air-tightness -
Q 3.14 Aging -
