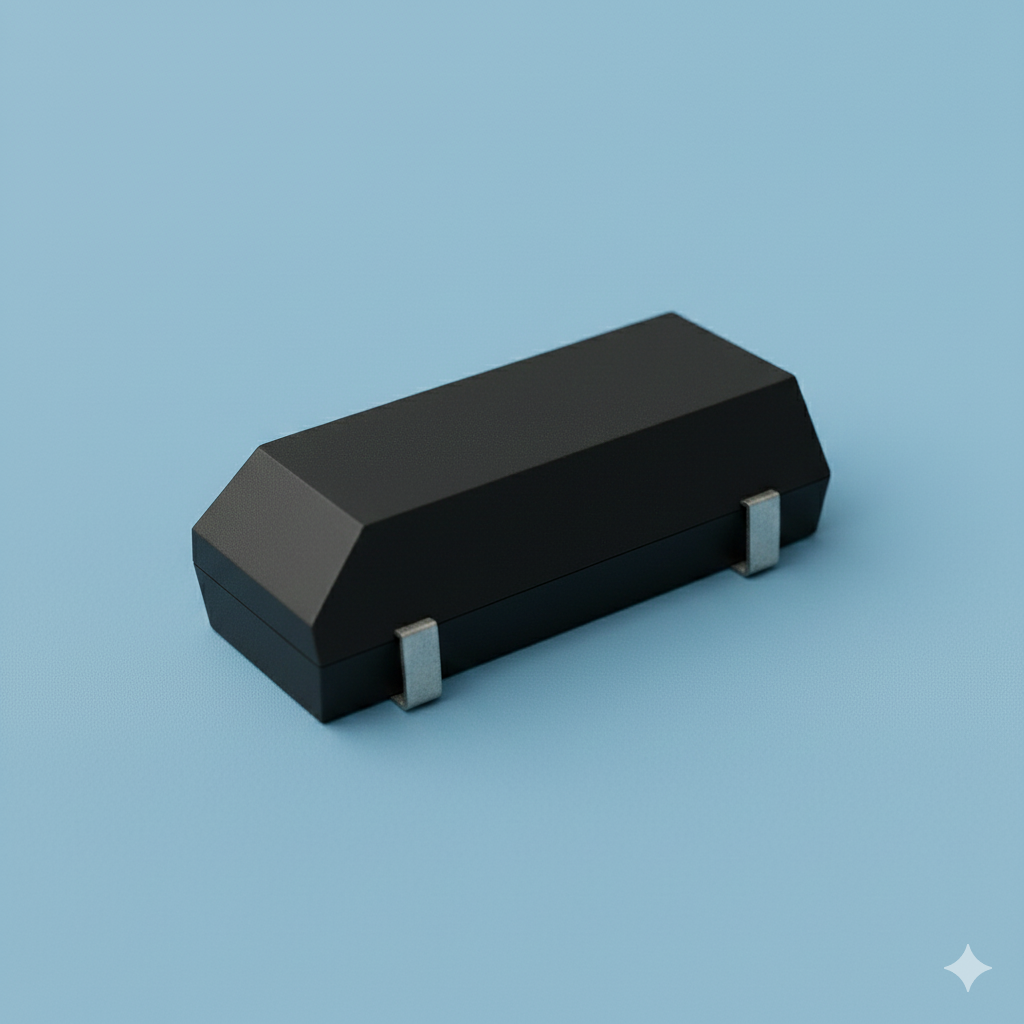

  2. Q-SMD8038-P4-32.768 kHz-12.5-10-4085 | Epson MC-306 (250 pcs/reel)
Q-SMD8038-P4-32.768 kHz-12.5-10-4085 | Epson MC-306 (250 pcs/reel)

[11-0053] Q-SMD8038-P4-32.768 kHz-12.5-10-4085 | Epson MC-306 (250 pcs/reel)

https://www.quarzwerk.net/web/image/product.template/9271/image_1920?unique=502e2b5

Manufacturer: EPSON

Epson P/N: Q13MC3061001812

Case Size: MC-306 (SMD8038-P4)
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 12.5 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
……[TC: -0,030ppm/°C² typ., -0,040ppm/°C² max.]
ESR max.: 50000 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 250 pcs/reel

0.00 EUR 0.0 EUR 0.00 EUR VAT Excluded

0.00 EUR VAT Excluded

Not Available For Sale

  • A 1.00 Manufacturer Name
  • A 1.03 Type
  • Q 3.01 Nominal frequency (Fo)
  • 3.02 Oscillation Mode
  • 3.03 Load Capacitance (CL)
  • Q 3.04 Freq. Tol. max. (at +25℃)
  • Q 3.05 Freq. Stability Vs Temp. max.:
  • Q 3.06 Operating Temp. Range
  • Q 3.07 Storage Temp. Range
  • Q 3.08 Equivalent Res. (ESR)
  • Q 3.09 Shunt Capacitance
  • 3.10 Drive Level (Typical)
  • 3.11 Drive Level (max)
  • 3.12 Insulation Resistance
  • 3.13 Air-tightness
  • 3.14 Aging
  • A 1.01 Manufacturer Part No.
  • A 1.04 Dimension & Type
  • Q 1.4 Version

This combination does not exist.

Contact Us


Specifications

ALLE
A 1.00 Manufacturer Name Seiko Epson Corporation
A 1.03 Type Quartz Crystal Resonator
QUARZ
Q 3.01 Nominal frequency (Fo) 32.768 kHz
3.02 Oscillation Mode XY
3.03 Load Capacitance (CL) 12.5 pF
Q 3.04 Freq. Tol. max. (at +25℃) 10 ppm
Q 3.05 Freq. Stability Vs Temp. max.: -
Q 3.06 Operating Temp. Range -
Q 3.07 Storage Temp. Range -
Q 3.08 Equivalent Res. (ESR) 0
Q 3.09 Shunt Capacitance -
3.10 Drive Level (Typical) -
3.11 Drive Level (max) -
3.12 Insulation Resistance -
3.13 Air-tightness -
3.14 Aging -
Uncategorized
A 1.01 Manufacturer Part No. -
A 1.04 Dimension & Type SMD8038
Q 1.4 Version -
