Hero – Kompakt ohne Animation

Quarze • Oszillatoren • RTC

Produkte Suchen

Filter entfernen

A 1.00 Manufacturer Name

Q 3.01 Nominal frequency (Fo)

Q 3.03 Load Capacitance (CL)

Q 3.04 Freq. Tol. max. (at +25℃)

Q 3.05 Freq. Stability Vs Temp. max.:

Q 3.06 Operating Temp. Range

Q 3.07 Storage Temp. Range

Q 3.08 Equivalent Res. (ESR)

Q 3.10 Drive Level

Stichwörter

IoT

WireLess

Wearable Devices

QUARZE
OSZILLATOREN
RTC

[14-0001] Q-SMD1610-C2-32.768 kHz-12.5-10-4085 '- RIVER, TFX-04, SMD1610-C2, 32.768 kHz, CL=12.5pF, ±10ppm @+25°C, ESR=90kOhm max., -40/+85°C 0,00 EUR 0.0 EUR	[14-1110] Q-SMD1610-C2-32.768 kHz-12.5-20-4085 (ESR max. 60 kOhm - LowESR) Manufacturer: RIVER ELETEC CORPORATION Case size: SMD1610-C2 (1.6 x 1.0 x 0.50 mm) \| TFX-04C Frequency: 32.768 kHz Load Capacitance: 12.5 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×20-6 ppm ESR max.: 60 kOhm Operating Temp.: -40°C/+85°C Package Unit: 5000 pcs/Reel 0,00 EUR 0.0 EUR	[14-1111] Q-SMD1610-C2-32.768 kHz-12.5-20-4085 (ESR max. 70 kOhm) Manufacturer: RIVER ELETEC CORPORATION Case size: SMD1610-C2 (1.6 x 1.0 x 0.50 mm) \| TXF-04 Frequency: 32.768 kHz Load Capacitance: 12.5 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×20-6 ppm ESR max.: 70 kOhm Operating Temp.: -40°C/+85°C Package Unit: 5000 pcs/Reel 0,00 EUR 0.0 EUR
[14-0002] Q-SMD1610-C2-32.768 kHz-12.5-20-4085 (ESR max. 90 kOhm) Manufacturer: RIVER ELETEC CORPORATION Case size: SMD1610-C2 (1.6 x 1.0 x 0.50 mm) \| TXF-04C Frequency: 32.768 kHz Load Capacitance: 9.0 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×20-6 ppm ESR max.: 90 kOhm Operating Temp.: -40°C/+85°C Package Unit: 5000 pcs/Reel 0,00 EUR 0.0 EUR	[14-0021] Q-SMD1610-C2-32.768 kHz-7-20-4085 Manufacturer: RIVER ELETEC CORPORATION Typ: TXF-04 Case size: SMD1610-C2 (1.6 x 1.0 x 0.50 mm) Frequency: 32.768 kHz Load Capacitance: 7.0 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×20-6 ppm ESR max.: 90 kOhm Operating Temp.: -40°C/+85°C Quantity: 3000 pcs/Reel 0,00 EUR 0.0 EUR	[14-0003] Q-SMD1610-C2-32.768 kHz-9-10-4085 '- RIVER, TXF-04, SMD1610-C2, 32.768 kHz, CL=12.5pF, ±10ppm @+25°C, ESR=90kOhm max., -40/+85°C 0,00 EUR 0.0 EUR
[14-1120] Q-SMD1610-C2-32.768 kHz-9-20-4085 (ESR max. 60 kOhm - LowESR) Manufacturer: RIVER ELETEC CORPORATION Case size: SMD1610-C2 (1.6 x 1.0 x 0.50 mm) \| TXF-04C (Low-ESR) Frequency: 32.768 kHz Load Capacitance: 12.5 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×20-6 ppm ESR max.: 60 kOhm Operating Temp.: -40°C/+85°C Package Unit: 5000 pcs/Reel 0,00 EUR 0.0 EUR	[14-1121] Q-SMD1610-C2-32.768 kHz-9-20-4085 (ESR max. 70 KOhm) RIVER ELETEC CORPORATION Case size: SMD1610-C2 (1.6 x 1.0 x 0.50 mm) \| TXF-04 Frequency: 32.768 kHz Load Capacitance: 9.0 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×20-6 ppm ESR max.: 70 kOhm Operating Temp.: -40°C/+85°C Quantity: 5000 pieces/Reel 0,00 EUR 0.0 EUR	[14-0004] Q-SMD1610-C2-32.768 kHz-9-20-4085 (ESR max. 90 kOhm) Manufacturer: RIVER ELETEC CORPORATION Case size: SMD1610-C2 (1.6 x 1.0 x 0.50 mm) \| TFX-04 Frequency: 32.768 kHz Load Capacitance: 9.0 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×20-6 ppm ESR max.: 90 kOhm Operating Temp.: -40°C/+85°C Quantity: 5000 pcs/Reel 0,00 EUR 0.0 EUR
[14-0028] Q-SMD1612-M4-24.000000 MHz-FU-10-10/30-4085 \| River FCX-07L Manufacturer: RIVER ELETEC CORPORATION Ordering No.: C7L-24000-100-ER4-150-W Case Size: SMD1612-M4 \| FCX-07L (1.6 × 1.2 × 0.30 mm) Frequency: 24.000000 MHz Mode: fund. AT Load Capacitance: 10.0 pF Tolerance at +25 °C: ±10 ppm Tolerance over Temp.: ±30 ppm ESR: 150 Ohm max, 50 Ohm typ. Operating Temp.: -40°C/+85°C Package Unit: 3000 pcs/reel 0,00 EUR 0.0 EUR	[14-0022] Q-SMD1612-M4-26.000000 MHz-FU-8-10/10-2070 '- UTECH Electronics Technology Co., Ltd. Case size: SMD2016-M4 Frequency: 26.000000 MHz Mode: fund. AT Load Capacitance: 8 pF Tolerance at +25 °C: ±10 ppm Tolerance over Temp.: ±10 ppm Aging: ±3 ppm max. 1 year ESR max.: 100 Ohm Operating Temp.: -20°C/+70°C 0,00 EUR 0.0 EUR	[14-0023] Q-SMD1612-M4-26.000000 MHz-FU-8-10/10-4085 '- UTECH Electronics Technology Co., Ltd. Case size: SMD2016-M4 Frequency: 26.000000 MHz Mode: fund. AT Load Capacitance: 8 pF Tolerance at +25 °C: ±10 ppm Tolerance over Temp.: ±10 ppm Aging: ±3 ppm max. 1 year ESR max.: 100 Ohm Operating Temp.: -20°C/+70°C 0,00 EUR 0.0 EUR
[14-0025] Q-SMD1612-M4-27.120000 MHz-FU-8-20/25-4085 '- River Electronics (S) Pte Ltd - Case Size: SMD1612-M4 / FCX-06 Frequency: 27.120000 MHz Mode: fund. AT Load Capacitance: 8 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: ±25 ppm Aging: ±1ppm max. 1 year ESR max.: 60 Ohm Operating Temp.: -40°C/+85°C RoHS: Pb free - 2011/65/EU (RoHS 2) compliant - Package Unit: 3000pcs/reel 0,00 EUR 0.0 EUR	[14-0029] Q-SMD1612-M4-30.320000 MHz-FU-6-20/50-40105 \| FCX-07L Hersteller: RIVER ELETEC CORPORATION Bestell-Nr.:.: J14157-S001 Bauform: SMD1612-M4 / FCX-07L Frequenz: 30.320000 MHz Modus: fund. AT Last Capazität: 6.0 pF Frequenztoleranz bei +25 °C: ±20 ppm Frequenztoleranz über den Arbeitstemperaturbereich: ±50 ppm Resonanzwiderstand ESR max.: 70 Ohm Arbeitstemperaturbereich:: -40°C/+105°C Verpackungseinheit: 3000 Stück gegurtet auf Rolle 0,00 EUR 0.0 EUR	[14-0005] Q-SMD2012-C2-32.768 kHz-12.5-10-4085 '- RIVER, TXF-04, SMD1610-C2, 32.768 kHz, CL=12.5pF, ±10ppm @+25°C, ESR=90kOhm max., -40/+85°C 0,00 EUR 0.0 EUR
[14-0011] Q-SMD2012-C2-32.768 kHz-12.5-20-4085 (ESR 60 kOhm max.) '- RIVER, TXF-04, SMD1610-C2, 32.768 kHz, CL=12.5pF, ±10ppm @+25°C, ESR=90kOhm max., -40/+85°C 0,00 EUR 0.0 EUR	[14-1301] Q-SMD2012-C2-32.768 kHz-12.5-20-4085 (ESR 70 kOhm max.) RIVER ELETEC CORPORATION Typ: TFX-03 Case size: SMD2012-C2 (2.0 x 1.2 x 0.60 mm) Frequency: 32.768 kHz Load Capacitance: 12.5 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×10-6 ppm ESR max.: 70 kOhm Operating Temp.: -40°C/+85°C Quantity: 3000 pcs/reel 0,00 EUR 0.0 EUR	[14-0006] Q-SMD2012-C2-32.768 kHz-12.5-20-4085 (ESR 90 kOhm max.) RIVER ELETEC CORPORATION Typ: TFX-03 Case size: SMD2012-C2 (2.0 x 1.2 x 0.60 mm) Frequency: 32.768 kHz Load Capacitance: 12.5 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×10-6 ppm ESR max.: 90 kOhm Operating Temp.: -40°C/+85°C Quantity: 3000 pcs/reel 0,00 EUR 0.0 EUR
[14-1207] Q-SMD2012-C2-32.768 kHz-4-10-4085 River Electronics (S) Pte Ltd TR3000 0,00 EUR 0.0 EUR	[14-1206] Q-SMD2012-C2-32.768 kHz-6-20-4085 RIVER ELETEC CORPORATION Typ: TFX-03 Case size: SMD2012-C2 (2.0 x 1.2 x 0.60 mm) Frequency: 32.768 kHz Load Capacitance: 6.0 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×10-6 ppm ESR max.: 90 kOhm Operating Temp.: -40°C/+85°C Quantity: 3000 pcs/reel 0,00 EUR 0.0 EUR	[14-1201] Q-SMD2012-C2-32.768 kHz-6-20-4085 (Low ESR) '- RIVER ELETEC CORPORATION - Typ: TXF-03C Case size: SMD2012-C2 (2.0 x 1.2 x 0.60 mm) Frequency: 32.768 kHz Load Capacitance: 6.0 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×10-6 ppm ESR max.: 50 kOhm Operating Temp.: -40°C/+85°C - Quantity: 3000 pieces/Reel 0,00 EUR 0.0 EUR
[14-0009] Q-SMD2012-C2-32.768 kHz-7-10-4085 '- RIVER, TXF-04, SMD1610-C2, 32.768 kHz, CL=12.5pF, ±10ppm @+25°C, ESR=90kOhm max., -40/+85°C 0,00 EUR 0.0 EUR	[14-0010] Q-SMD2012-C2-32.768 kHz-7-20-4085 '- RIVER ELETEC CORPORATION - Typ: TXF-03 - Case size: SMD2012-C2 (2.0 x 1.2 x 0.60 mm) Frequency: 32.768 kHz Load Capacitance: 7.0 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×10-6 ppm ESR max.: 90 kOhm Operating Temp.: -40°C/+85°C - Quantity: 3000 pieces/Reel 0,00 EUR 0.0 EUR	[14-1202] Q-SMD2012-C2-32.768 kHz-7-20-4085 (Low ESR) '- RIVER ELETEC CORPORATION - Typ: TFX-03C Case size: SMD2012-C2 (2.0 x 1.2 x 0.60 mm) Frequency: 32.768 kHz Load Capacitance: 7.0 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×10-6 ppm ESR max.: 50 kOhm Operating Temp.: -40°C/+85°C - Quantity: 3000 pieces/Reel 0,00 EUR 0.0 EUR
[14-0013] Q-SMD2012-C2-32.768 kHz-7-20-4085 (Low-profile) - EOL 04-05-2021, fw '- RIVER ELETEC CORPORATION Typ: TFX-03L - Case size: SMD2012-C2 (2.0 x 1.2 x 0.35 mm) Frequency: 32.768 kHz Load Capacitance: 7.0 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: -(0.03±0.01)×10-6 ppm ESR max.: 60 kOhm Operating Temp.: -40°C/+85°C - Quantity: 3000 pieces/Reel 0,00 EUR 0.0 EUR	[14-0007] Q-SMD2012-C2-32.768 kHz-9-10-4085 '- RIVER, TXF-04, SMD1610-C2, 32.768 kHz, CL=12.5pF, ±10ppm @+25°C, ESR=90kOhm max., -40/+85°C 0,00 EUR 0.0 EUR	[14-0012] Q-SMD2012-C2-32.768 kHz-9-20-4085 '- RIVER, TFX-04, SMD1610-C2, 32.768 kHz, CL=12.5pF, ±10ppm @+25°C, ESR=90kOhm max., -40/+85°C 0,00 EUR 0.0 EUR
[14-0008] Q-SMD2012-C2-32.768 kHz-9-20-4085 '- RIVER, TXF-04, SMD1610-C2, 32.768 kHz, CL=12.5pF, ±10ppm @+25°C, ESR=90kOhm max., -40/+85°C 0,00 EUR 0.0 EUR	[14-0636] Q-SMD2016-M4-32.000000 MHz-FU-12-10/20-4085 RIVER ELETEC CORPORATION Case Size: SMD2016-M4 Frequency: 32.000000 MHz Mode: fund. AT Load Capacitance: 12.0 pF Tolerance at +25 °C: ±10 ppm Tolerance over Temp.: ±20 ppm Aging: ±2ppm max. 1 year ESR max.: 60 Ohm Shunt Capacitance: 4 pF max. Operating Temp.: -40°C/+85°C Drive Level: 10 mW (Typical), 200 mW max. Package Unit: 3000 pcs/reel 1,20 EUR 1.2 EUR	[14-0019] Q-SMD2016-M4-48.000000 MHz-FU-7-10/22-3085 '- UTECH, SMD2016-M4, 48.0000 MHz, fund., CL: 7pF, ±10ppm at +25°C, ±12ppm over Temp., ESR: 50 Ohm max. -30°C ~+85°C 1,20 EUR 1.2 EUR

Seiko Epson Corporation

SUZHOU UTECH TECHNOLOGY CO.,LTD

CITIZEN FINEDEVICE CO.,LTD

RIVER ELETEC CORPORATION

Dow Enterprise Co., Ltd

-55°C ~ +125°C

10 µW

10 µW (typical)

10 µW to 300 µW (typical: 10 µW)

10 mW

IoT

WireLess

Wearable Devices

Filter entfernen

Produkte Suchen

Produkte Suchen

[14-0001] Q-SMD1610-C2-32.768 kHz-12.5-10-4085

[14-1110] Q-SMD1610-C2-32.768 kHz-12.5-20-4085 (ESR max. 60 kOhm - LowESR)

[14-1111] Q-SMD1610-C2-32.768 kHz-12.5-20-4085 (ESR max. 70 kOhm)

[14-0002] Q-SMD1610-C2-32.768 kHz-12.5-20-4085 (ESR max. 90 kOhm)

[14-0021] Q-SMD1610-C2-32.768 kHz-7-20-4085

[14-0003] Q-SMD1610-C2-32.768 kHz-9-10-4085

[14-1120] Q-SMD1610-C2-32.768 kHz-9-20-4085 (ESR max. 60 kOhm - LowESR)

[14-1121] Q-SMD1610-C2-32.768 kHz-9-20-4085 (ESR max. 70 KOhm)

[14-0004] Q-SMD1610-C2-32.768 kHz-9-20-4085 (ESR max. 90 kOhm)

[14-0028] Q-SMD1612-M4-24.000000 MHz-FU-10-10/30-4085 | River FCX-07L

[14-0022] Q-SMD1612-M4-26.000000 MHz-FU-8-10/10-2070

[14-0023] Q-SMD1612-M4-26.000000 MHz-FU-8-10/10-4085

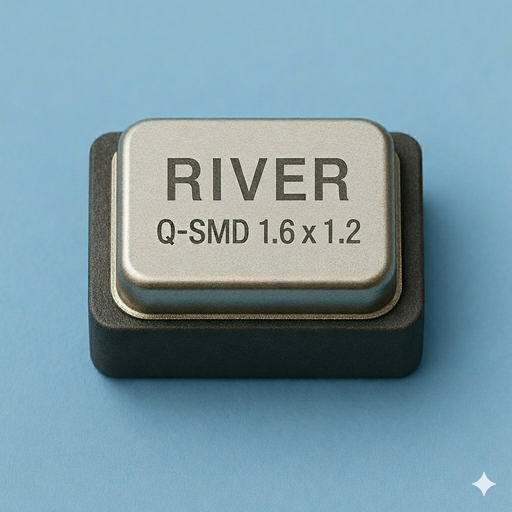

[14-0025] Q-SMD1612-M4-27.120000 MHz-FU-8-20/25-4085

[14-0029] Q-SMD1612-M4-30.320000 MHz-FU-6-20/50-40105 | FCX-07L

[14-0005] Q-SMD2012-C2-32.768 kHz-12.5-10-4085

[14-0011] Q-SMD2012-C2-32.768 kHz-12.5-20-4085 (ESR 60 kOhm max.)

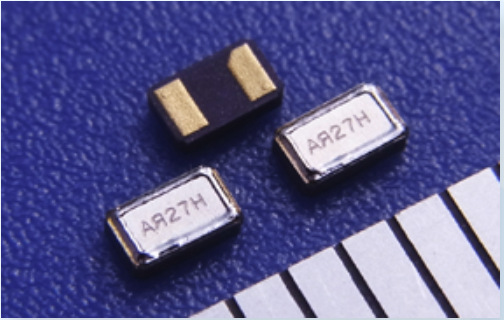

[14-1301] Q-SMD2012-C2-32.768 kHz-12.5-20-4085 (ESR 70 kOhm max.)

[14-0006] Q-SMD2012-C2-32.768 kHz-12.5-20-4085 (ESR 90 kOhm max.)

[14-1207] Q-SMD2012-C2-32.768 kHz-4-10-4085

[14-1206] Q-SMD2012-C2-32.768 kHz-6-20-4085

[14-1201] Q-SMD2012-C2-32.768 kHz-6-20-4085 (Low ESR)

[14-0009] Q-SMD2012-C2-32.768 kHz-7-10-4085

[14-0010] Q-SMD2012-C2-32.768 kHz-7-20-4085

[14-1202] Q-SMD2012-C2-32.768 kHz-7-20-4085 (Low ESR)

[14-0013] Q-SMD2012-C2-32.768 kHz-7-20-4085 (Low-profile) - EOL 04-05-2021, fw

[14-0007] Q-SMD2012-C2-32.768 kHz-9-10-4085

[14-0012] Q-SMD2012-C2-32.768 kHz-9-20-4085

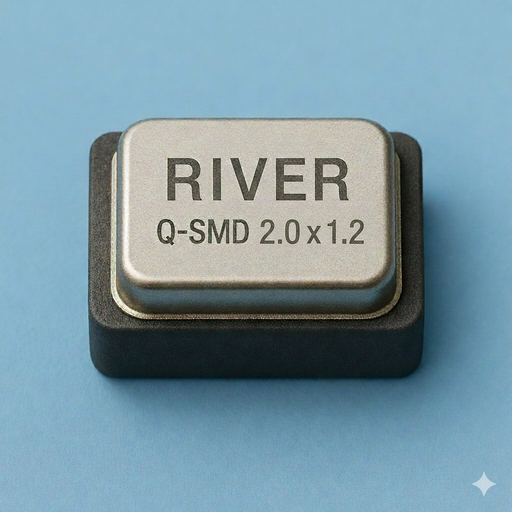

[14-0008] Q-SMD2012-C2-32.768 kHz-9-20-4085

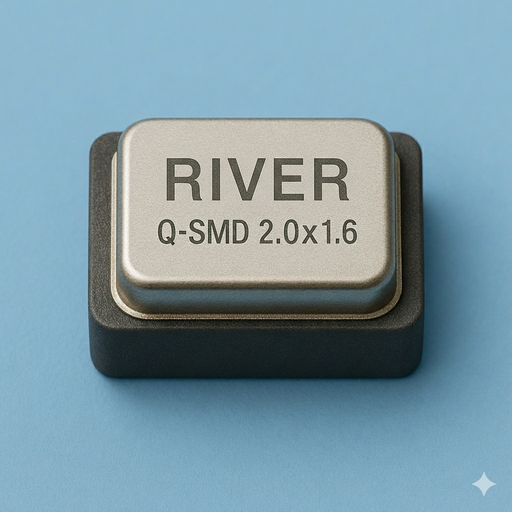

[14-0636] Q-SMD2016-M4-32.000000 MHz-FU-12-10/20-4085

[14-0019] Q-SMD2016-M4-48.000000 MHz-FU-7-10/22-3085
