Manufacturer: Utech Technology Co., Ltd.
-
Series: Oscillator SMD3225-M4
Type: QOS3
Dimension (mm): 3.2 x 2.5 x 1.0
Frequency: 7.372800 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Load(Impedance): 15 pF ±1.5pF
CMOS/TTL, Tristate
Icc = 6 mA max., 3 mA typ.
Frequency Tolerance OA: ±50 ppm*
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
-
Package Unit: 3000pcs/reel
-
*(Incl. Freq. Tolerance, Temp., Supply Voltage and Load)

SUZHOU UTECH TECHNOLOGY CO.,LTD

'-
Manufacturer: Utech Technology Co., Ltd.
-
Series: Oscillator SMD3225-M4
Type: QOS3
Dimension (mm): 3.2 x 2.5 x 1.0
Frequency: 96.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Load(Impedance): 15 pF ±1.5pF
CMOS/TTL, Tristate
Icc = 10 mA max., 7 mA typ.
Frequency Tolerance OA: ±25 ppm*
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
-
Package Unit: 3000pcs/reel
-
*(Incl. Freq. Tolerance, Temp., Supply Voltage and Load)

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS3
Case size: SMD3225-M4
Frequency: 98.304000 MHz
Power Supply Voltage: 1.8 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000 pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

'-
UTECH, Oscillator, SMD5032-M4, QOS5, 48.000000 MHz, 3.3V, ±30ppm, -40/+85°C, CMOS/TTL, Tristate, Current consumption: 7mA max.

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator
Case size: SMD5032-M4 | QOS5
Frequency: 14.745600 MHz
Power Supply Voltage: 5.0 Volt
Frequency Stability *: ±50 ppm
Current Consumption: 4.0 mA typ.
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF max.
Pin 1, Tri-State function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 1000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage
change, output load change, aging, shock and vibration.

'-

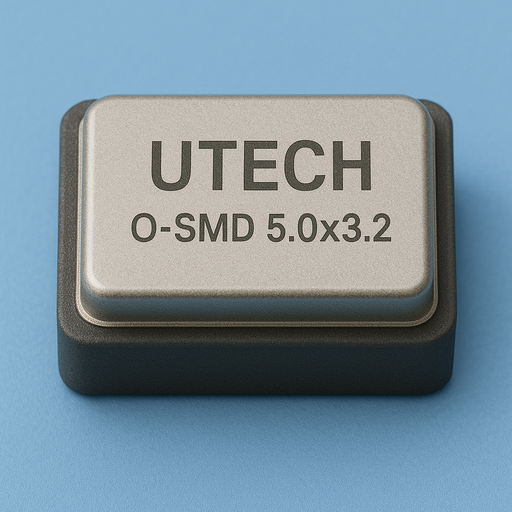

UTECH Electronics Technology Co., Ltd.
Typ: SMD-Oscillator QOS5
Case size: SMD5032-M4
Frequency: 16.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability * : ±50 ppm
Operating Temp.: -20°C/+70°C
Output Load (HCOMS): 15pF typ.
Pin 1, Tri-state function:
    Pin 1=H or open ... Output active at Pin3
    Pin 1=L ... high impedance at Pin3
-
* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR1000

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS5
Case size: SMD5032-M4
Frequency: 50.000000 MHz
Power Supply Voltage: 1.6 to 3.6 Volt
Frequency Stability *: ±50 ppm
Current Cosumption: 3mA max.
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF max.
Rise & Fall Time: ≤ 4 ns
Start-up Time: ≤ 3 ms
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 500pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS5
Case size: SMD5032-M4
Frequency: 24.576000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability * : ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF typ.
Pin 1, Tri-state function:
    Pin 1=H or open ... Output active at Pin3
    Pin 1=L ... high impedance at Pin3

Package: 1000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

'-
UTECH Electronics Technology Co., Ltd.
Series: Oscillator SMD5032-M4
Type: QOS5 (CMOS)
Dimension (mm): 5.0 x 3.2 x 1.0
Frequency: 25.000000 MHz
Supply Voltage (VDD): +1.8 VDC ±10%
Frequency Tolerance: ±50 ppm
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
E/D: High = active
Package Unit: 500pcs/reel

'-
UTECH, Oscillator, SMD5032-M4, 25.000000 MHz, 3.3V, ±25ppm, -40/+85°C, CMOS/TTL

'-
UTECH Electronics Technology Co., Ltd.
-
Series: Oscillator SMD5032-M4
Type: kHz / AT characteristic
Dimension (mm): 5.0 x 3.2 x 1.0
Frequency: 32.768 kHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±20 ppm (incl. Aging 10 years)
Supply Current max.: 4.9 mA
Output Load: LVCMOS
Start-up Time max.: 4 mS
Output Symmetry: 50% ±5%
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
E/D: High = active
-
Package Unit: 500pcs/reel

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator
Case size: SMD5032-M4 | QOS5
Frequency: 36.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±25 ppm
Current Consumption: 4.0 mA typ.
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF max.
Pin 1, Tri-State function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 1000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

'-
UTECH Electronics Technology Co., Ltd.
Typ: SMD-Oscillator QOS5
Case size: SMD5032-M4
Frequency: 50.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3
-
* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

'-
UTECH Electronics Technology Co., Ltd.
-
Typ: SMD-Oscillator QOS5
Case size: SMD5032-M4
Frequency: 8.000000 MHz
Power Supply Voltage: 1.6 to 3.6 Volt
Frequency Stability *: ±50 ppm
Current Consumption: 7mA max. / 3mA Standby (Power Down)
Symmetry: 45% to 55%
Rise & Fall Time: ≤ 4 ns
Output Disable / Enable Time: ≤ 100 ns
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF max.
Rise & Fall Time: ≤ 4 ns
Start-up Time: ≤ 3 ms
Pin 1, Tri-State function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3
-
Package Unit: 500pcs/reel
-
* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

'-
UTECH Electronics Technology Co., Ltd.
Typ: SMD-Oscillator QOS3
Case size: SMD3225-M4
Frequency: 25.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±25 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3
-
* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

'-
UTECH, Oscillator, SMD5032-M4, 5.000000 MHz, 5.0V, ±100ppm, -40/+85°C, CMOS/TTL, Tristate

'-
UTECH, Oscillator, SMD7050-M4, 16.000000 MHz, 3.3V, ±50ppm, -40/+85°C, CMOS/TTL

'-
Manufacturer: UTECH Electronics Technology Co., Ltd.
-
Series: Oscillator SMD7050-M4
Dimension (mm): 7.0 x 5.0 x 1.5
Frequency: 1.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±50 ppm
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
E/D: High = active
-
Package Unit: 1000pcs/reel

Manufacturer: Utech Electronics Technology Co., Ltd.

Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 10.000000 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 20 mA max.
Frequency Tolerance: ±15 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms

Package Unit: 1000 pcs/reel

'-
Manufacturer: UTECH Electronics Technology Co., Ltd.
-
Series: Oscillator SMD7050-M4
Dimension (mm): 7.0 x 5.0 x 1.5
Frequency: 12.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±20 ppm
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
E/D: High = active
-
Package Unit: 500pcs/reel

Manufacturer: Utech Electronics Technology Co., Ltd.

Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 12.000000 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 20 mA max.
Frequency Tolerance: ±100 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms

Package Unit: 1000 pcs/reel

'-

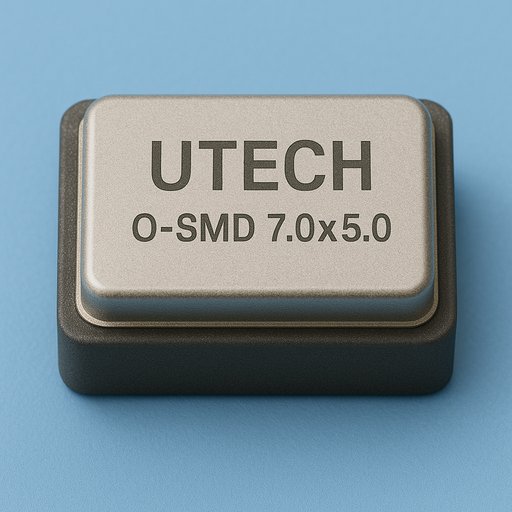

Manufacturer: UTECH Electronics Technology Co., Ltd.
-
Series: Oscillator SMD7050-M4
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 120.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±50 ppm
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
E/D: High = active
Package Unit: 500pcs/reel

Manufacturer: Utech Electronics Technology Co., Ltd.

Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 125.000000 MHz
Supply Voltage (VDD): 3.3 VDC ±10%
Input Current: 20 mA max.
Frequency Tolerance: ±100 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms

Package Unit: 1000pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.3
Frequency: 14.745600 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 10 mA max. at 15pF Load
Frequency Tolerance: ±100 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms
Package Unit: 500pcs/reel

Manufacturer: Utech Electronics Technology Co., Ltd.

Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 8.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Input Current: 20 mA max.
Frequency Tolerance: ±50 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms

Package Unit: 500pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Type: QOS7
-
Series: Oscillator SMD7050-M4
Dimension (mm): 7.0 x 5.0 x 1.3
Frequency: 16.000000 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 20 mA max. at 15pF Load
Frequency Tolerance: ±100 ppm
Output Logic / Output Load: HCMOS / 15 pF typ.
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 6 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms
Package Unit: 1000pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 16.000000 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 20 mA max.
Frequency Tolerance: ±50 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms
Package Unit: 1000pcs/reel
