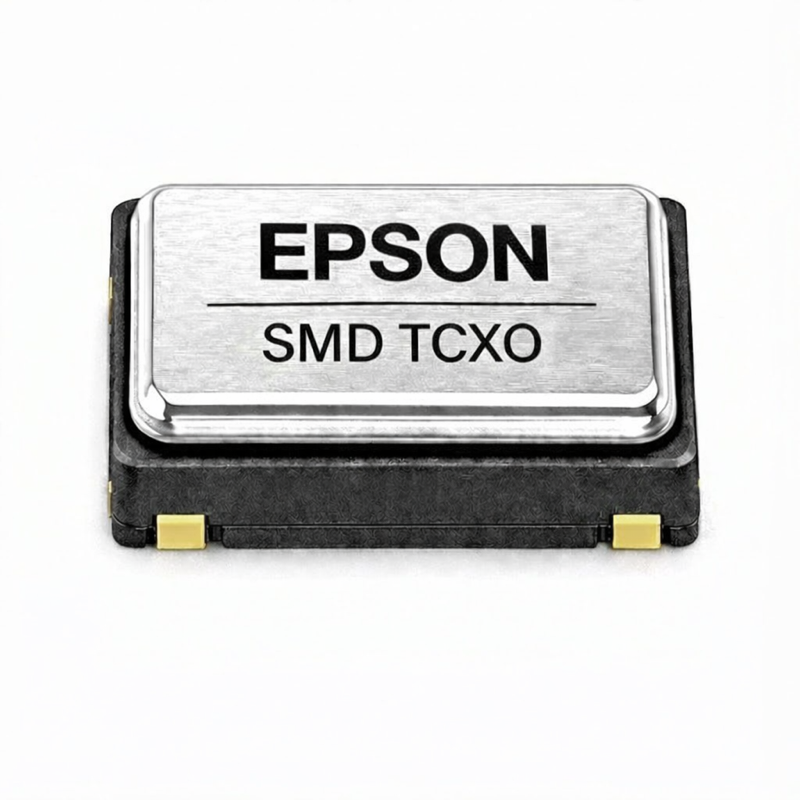

O-TCXO-SMD2016-M4-48.000000 MHz-1.8-1.5-4085-CSW

• A 1.00 Manufacturer Name
  • EPSON
• A 1.02 Description
  • Temperature Compensated Crystal Oscillator
• A 1.05 VPE TR2000
• A 1.06 Date Created
  • 12.02.2026
• T 3.12 Frequency Stability Vs Supply Voltage (±5%)
  • ±0.1 ppm max.
• T 3.13 Frequency Stability Vs Load (±10%)
  • ±0.1 ppm max (Load ±10%)
• T 3.14 Output Load
  • 15 pF
• T 3.15 Aging
  • ±1.5 ppm at +25°C first year, ±5.0 ppm at +25°C 10 years
• T 3.01 Nominal Frequency (Fo)
  • 48.000000 MHz
• T 3.02 Oscillation Mode
  • Fundamental
• T 3.03 Supply Voltage (Vdd)
  • 1.8 V
• T 3.04 Input Current
  • 2.0 mA max.
• T 3.05 Output Waveform
  • CSW - Clipped sine wave
• T 3.07 Duty Cycle
  • 45% ~ 55%
• T 3.08 a. Frequency Tolerance Before Reflow (at +25℃)
  • ±0.5 ppm
• T 3.09 Frequency Stability Vs Temperature Range
  • ±0.5 ppm @ -40°C ~ +85°C
• T 3.10 Operating Temperature Range
  • -40°C ～ +85℃
• T 3.08 b Frequency Tolerance After Reflow (at +25℃)
  • ±1.5 ppm
• A 1.03 Series TG2016SMN
