  2. Q-SMD2012-C2-32.768 kHz-9-20-4085 | Epson FC-12M

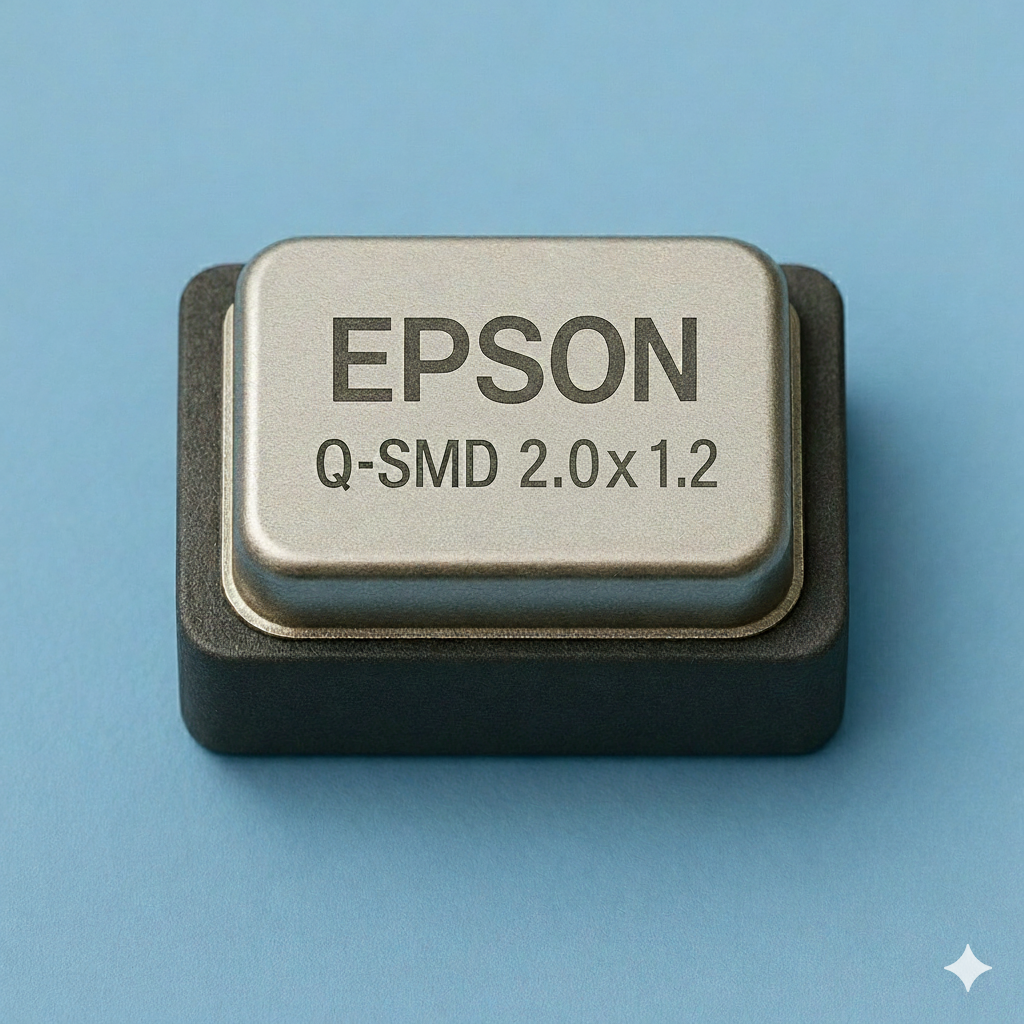

Q-SMD2012-C2-32.768 kHz-9-20-4085 | Epson FC-12M

[11-1201] Q-SMD2012-C2-32.768 kHz-9-20-4085 | Epson FC-12M

https://www.quarzwerk.net/web/image/product.template/8408/image_1920?unique=96f3f8d

'-
Manufacturer: Seiko Epson Corp.
-
pN: X1A000061000800
-
Case Size: SMD2012-C2 | FC - 12M
-
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 9.0 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
……[-0,040ppm/°C² max.]
ESR max.: 90000 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 3000pcs/reel
-

0,00 EUR 0.0 EUR 0,00 EUR Exklusive Mwst.

0,00 EUR Exklusive Mwst.

Not Available For Sale

  • A 1.00 Manufacturer Name
  • A 1.01 Type
  • Q 3.01 Nominal frequency (Fo)
  • Q 3.02 Oscillation Mode
  • Q 3.03 Load Capacitance (CL)
  • Q 3.04 Freq. Tol. max. (at +25℃)
  • Q 3.05 Freq. Stability Vs Temp. max.:
  • Q 3.06 Operating Temp. Range
  • Q 3.07 Storage Temp. Range
  • Q 3.08 Equivalent Res. (ESR)
  • Q 3.09 Shunt Capacitance C0
  • Q 3.10 Drive Level
  • Q 3.11 Drive Level
  • Q 3.12 Insulation Resistance
  • Q 3.13 Air-tightness
  • Q 3.14 Aging
  • A 1.01 Manufacturer Part No.
  • A 1.04 Dimension & Type
  • Q 1.4 Version---

Diese Kombination existiert nicht.

Kontaktieren Sie uns


Spezifikationen​

ALLE
A 1.00 Manufacturer Name Seiko Epson Corporation
A 1.01 Type Quartz Crystal Resonator
QUARZ
Q 3.01 Nominal frequency (Fo) 32.768 kHz
Q 3.02 Oscillation Mode XY
Q 3.03 Load Capacitance (CL) 9.0 pF
Q 3.04 Freq. Tol. max. (at +25℃) ±20 ppm max.
Q 3.05 Freq. Stability Vs Temp. max.: -
Q 3.06 Operating Temp. Range -
Q 3.07 Storage Temp. Range -
Q 3.08 Equivalent Res. (ESR) 0 Ω max.
Q 3.09 Shunt Capacitance C0 -
Q 3.10 Drive Level -
Q 3.11 Drive Level -
Q 3.12 Insulation Resistance -
Q 3.13 Air-tightness -
Q 3.14 Aging -
Nicht kategorisiert
A 1.01 Manufacturer Part No. -
A 1.04 Dimension & Type SMD2012 (2.0 x 1.2 mm)
Q 1.4 Version--- -
