  2. Q-SMD2520-M4-16.000000 MHz-FU-6-10/12-2075 | Epson FA-20H
Q-SMD2520-M4-16.000000 MHz-FU-6-10/12-2075 | Epson FA-20H

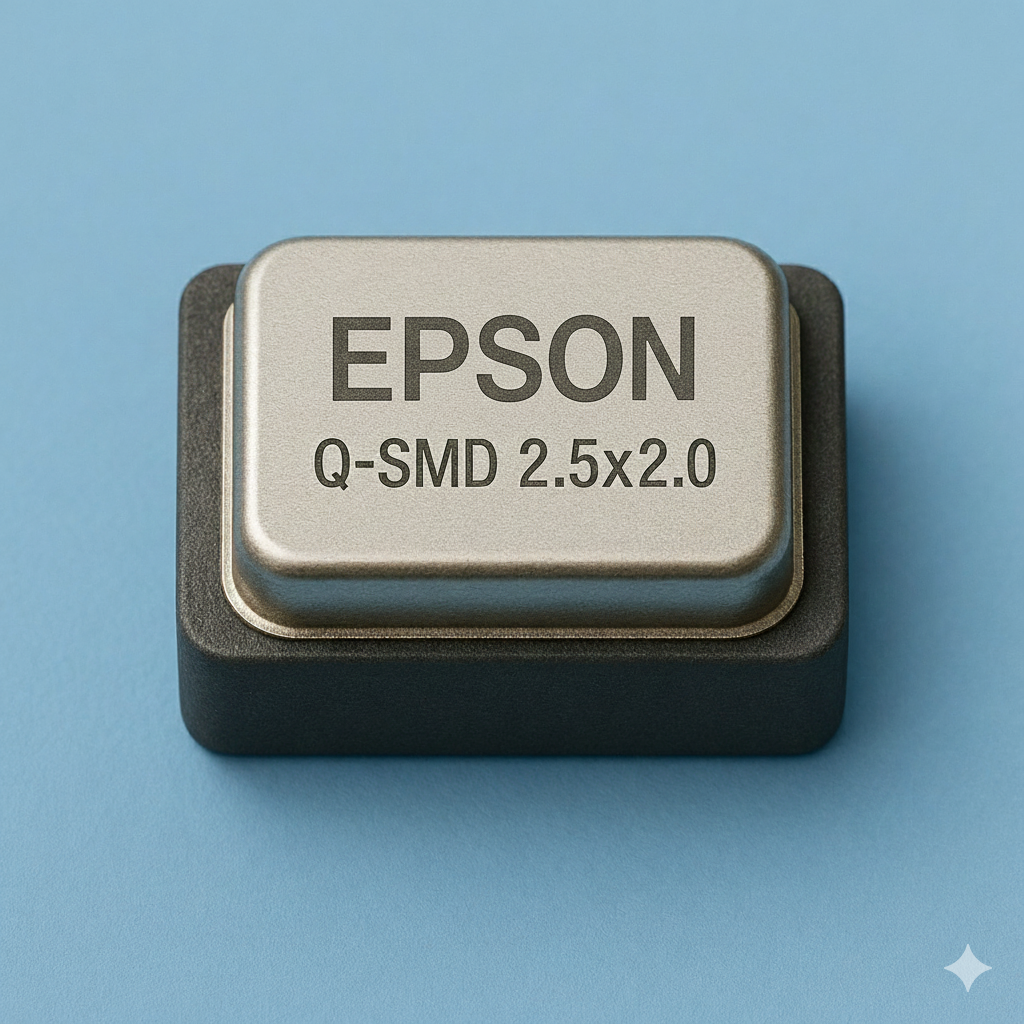

[11-0032] Q-SMD2520-M4-16.000000 MHz-FU-6-10/12-2075 | Epson FA-20H

https://www.quarzwerk.net/web/image/product.template/8509/image_1920?unique=2c269ea

'-
Manufacturer: EPSON
-
Q24FA20H00352xx
-
Case Size: SMD2520-M4 | FA-20H
Frequency: 16.000000 MHz
Mode: fund. AT
Load Capacitance: 9 pF
Tolerance at +25°C: ±10 ppm
Tolerance over Temp.: ±10 ppm at -20/+75°C
Aging: ±1 ppm max 1 year
ESR max.: 80 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 3000pcs/reel
-
Q24FA20H0035201 (samples)
Q24FA20H0035212 (250 in package)
Q24FA20H0035214 (1000 in package)
Q24FA20H0035218 (5000 in package)

0,00 EUR 0.0 EUR 0,00 EUR Exklusive Mwst.

0,00 EUR Exklusive Mwst.

Not Available For Sale

Menge Stückpreis
ab 30 0,25 EUR
  • A 1.00 Manufacturer Name
  • A 1.01 Type
  • Q 3.01 Nominal frequency (Fo)
  • Q 3.02 Oscillation Mode
  • Q 3.03 Load Capacitance (CL)
  • Q 3.04 Freq. Tol. max. (at +25℃)
  • Q 3.05 Freq. Stability Vs Temp. max.:
  • Q 3.06 Operating Temp. Range
  • Q 3.07 Storage Temp. Range
  • Q 3.08 Equivalent Res. (ESR)
  • Q 3.09 Shunt Capacitance C0
  • Q 3.10 Drive Level
  • Q 3.11 Drive Level
  • Q 3.12 Insulation Resistance
  • Q 3.13 Air-tightness
  • Q 3.14 Aging
  • A 1.01 Manufacturer Part No.
  • A 1.04 Dimension & Type
  • Q 1.4 Version---

Diese Kombination existiert nicht.

Kontaktieren Sie uns


Spezifikationen​

ALLE
A 1.00 Manufacturer Name Seiko Epson Corporation
A 1.01 Type Quartz Crystal Resonator
QUARZ
Q 3.01 Nominal frequency (Fo) 16.000000 MHz
Q 3.02 Oscillation Mode Fundamental AT
Q 3.03 Load Capacitance (CL) 6.0 pF
Q 3.04 Freq. Tol. max. (at +25℃) -
Q 3.05 Freq. Stability Vs Temp. max.: -
Q 3.06 Operating Temp. Range -20°C ~ +75°C
Q 3.07 Storage Temp. Range -55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR) 80 Ω max.
Q 3.09 Shunt Capacitance C0 -
Q 3.10 Drive Level -
Q 3.11 Drive Level -
Q 3.12 Insulation Resistance -
Q 3.13 Air-tightness -
Q 3.14 Aging -
Nicht kategorisiert
A 1.01 Manufacturer Part No. -
A 1.04 Dimension & Type SMD2520 (2.5 x 2.0 mm)
Q 1.4 Version--- -
