Case Size: SMD6035-M2 (2PAD)
Frequency: 7.372800 MHz
Mode: fund. AT
Load Capacitance: 12 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 80 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 1000pcs/reel

UTECH Electronics Technology Co., Ltd.

Marking:
Y24
Logo / Date code

Case Size: SMD6035-M4
Frequency: 10,368000 MHz
Mode: fund. AT
Load Capacitance: 10.0 pF Tolerance at +25 °C: ±10 ppm -
Tolerance over Temp.: ±10 ppm
> +-5 ppm max. over 0°C/+55°C
> +-10 ppm max. over +55°C/+65°C

Condition of unwanted responce: RN/Rr>2,5
Shunt Capacitance: C0 = 1,16 pF ± 20%
Motional Capacitance: C1 = 3,6 fF ± 15%
Pulling Sensitivity: S = 14,5 ppm/pF ± 20%
Aging: ±3ppm after 1 year, ± 5 ppm after 8 years
ESR max.: 60 Ohm
Operating Temp.: -10°C/+70 °C

Other Requirements: V42310-Z100-A1/-A6

Package Unit: 1000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR1000

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD6035-M4 | QRS6
Frequency: 12.000000 MHz
Mode: fund. AT
Load Capacitance: 20 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3ppm max 1 year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD6035-M4
Frequency: 12.000000 MHz
Mode: fund. AT
Load Capacitance: ?? pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±2ppm max 1 year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-

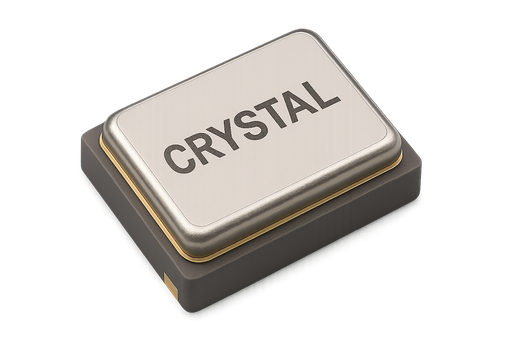

Case Size: SMD6035-M4 (4PAD)
Frequency: 13.567500 MHz
Mode: fund. AT
Load Capacitance: 20 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 45 Ohm
Operating Temp.: -20°C/+70°C
-
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

'-
Case Size: SMD6035-M4 (4PAD)
Frequency: 13.567500 MHz
Mode: fund. AT
Load Capacitance: 20 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 45 Ohm
Operating Temp.: -20°C/+70°C
-
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

'-
Case Size: SMD6035-M4 (4PAD)
Frequency: 13.567500 MHz
Mode: fund. AT
Load Capacitance: 20 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 45 Ohm
Operating Temp.: -20°C/+70°C
-
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

UTECH TECHNOLOGY CO.,LTD

Case Size: SMD6035-M4 (4PAD)
Frequency: 16.000000 MHz
Mode: fund. AT
Load Capacitance: 20.0 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±100 ppm
Aging max.: ±5 ppm / 1 year
ESR max.: 50 Ohm
Operating Temp.: -40°C/+125°C

Package Unit: 1000pcs/reel

RoHS: Pb free - 2011/65/EU (RoHS 2) compliant

'-
UTECH Electronics Technology Co., Ltd.
Bauform: SMD6035-M4 (4PAD)
Frequency: 16.000000 MHz
Mode: fund. AT
Load Capacitance: 20 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 60 Ohm
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
Operating Temp.: -40°C/+85°C
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD6035-M4 (4PAD)
Frequency: 20.000000 MHz
Mode: fund. AT
Load Capacitance: 12 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85°C
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD6035-M4
Frequency: 20.736000 MHz
Mode: fund. AT
Load Capacitance: 15 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±10 ppm
Aging: ±3ppm max 1 year
ESR max.: 80 Ohm
Operating Temp.: -20°C/+70°C
-
Package Unit: 1000pcs/reel

UTECH Electronics Technology Co., Ltd.

Case Size: SMD6035-M4 (4PAD)
Frequency: 24.000000 MHz
Mode: fund. AT
Load Capacitance: 18.0 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 50 Ohm
Operating Temp.: -40°C/+85°C
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant

Package Unit: 1000 pcs/reel

UTECH Electronics Technology Co., Ltd.
Bauform: SMD6035-C2 (2PAD)
Frequency: 24.576000 MHz
Mode: fund. AT
Load Capacitance: 30 pF
Tolerance at +25 °C: ±5 ppm
Tolerance over Temp.: ±10 ppm
Aging max.: ±2 ppm / 1 year
ESR max.: 50 Ohm
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
Operating Temp.: -20°C/+70°C
Package Unit: 1000pcs/reel

'-
Case Size: SMD6035-M4 (4PAD)
Frequency: 24.576000 MHz
Mode: fund. AT
Load Capacitance: 30 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±5 ppm
Aging max.: ±2 ppm / 1 year
ESR max.: 50 Ohm
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
Operating Temp.: -10°C/+60°C
-
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD6035-M4 (4PAD)
Frequency: 25.000000 MHz
Mode: fund. AT
Load Capacitance: 18 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 50 Ohm
Operating Temp.: -40°C/+85°C
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD6035-M4 (4PAD)
Frequency: 25.000000 MHz
Mode: fund. AT
Load Capacitance: 18 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 50 Ohm
Operating Temp.: -40°C/+85°C
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

'-
Case Size: SMD6035-M4 (4PAD)
Frequency: 8.000000 MHz
Mode: fund. AT
Load Capacitance: 18 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: ±20 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 72 Ohm
Operating Temp.: -20°C/+70°C
-
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

Bauform: SMD6035-M4
Frequency: 9,216000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±30 ppm
ESR max.: 80 Ohm
Operating Temp.: -20 / +70 °C

UTECH Technology Co., Ltd.

Case Size: SMD6035 Adapter SMD3225-M4
Frequency: 10,368000 MHz
Mode: fund. AT
Load Capacitance: 15.0 pF
Tolerance at +25 °C: ±10ppm
Tolerance over Temp.:
... ±5ppm @ -10/+60°C
... ±10ppm @ -20/+70°C
Aging: ±1ppm max 1st year
ESR max.: 120 Ohm
Operating Temp.: -20°C/+70 °C

Package Unit: 3000pcs/reel

------------------------------------------------------------
Adapterplatine bestückt mit 10-0117 | AVM 124QFS213
------------------------------------------------------------

UTECH Technology Co., Ltd.

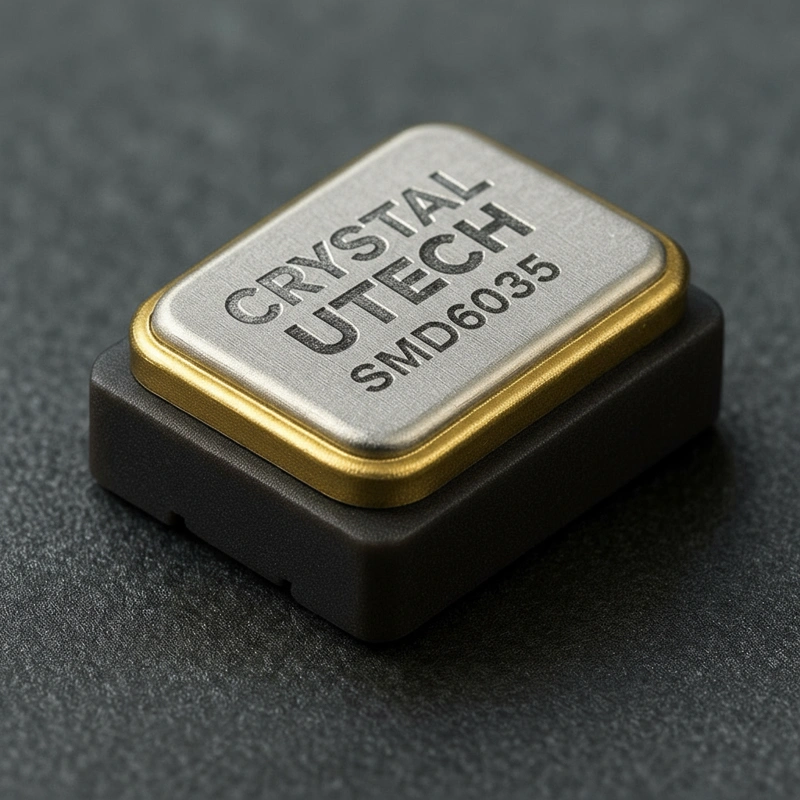

Case Size: SMD6035 Adapter SMD3225-M4
Frequency: 20.736000 MHz
Mode: fund. AT
Load Capacitance: 15.0 pF
Tolerance at +25 °C: ±10ppm
Tolerance over Temp.:
... ±5ppm @ -10/+60°C
... ±10ppm @ -20/+70°C
Aging: ±1ppm max 1st year
ESR max.: 120 Ohm
Operating Temp.: -20°C/+70 °C

Package Unit: 3000pcs/reel

------------------------------------------------------------
Adapterplatine bestückt mit 10-0446 | AVM 124QFS145
------------------------------------------------------------

'-
Manufacturer: EPSON
Typ: MC-146
Case size: SMD7015-C4
Frequency: 32.768 kHz
Load Capacitance: 12.5 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: -(0.04)×10^-6 ppm max.
ESR max.: 65 kOhm
Operating Temp.: -40°C/+85°C
Quantity: 3000 pieces/Reel

'-
Manufacturer: EPSON
Typ: MC-146
Case size: SMD7015-C4
Frequency: 32.768 kHz
Load Capacitance: 12.5 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: -(0.04)×10^-6 ppm max.
ESR max.: 65 kOhm
Operating Temp.: -40°C/+85°C
Quantity: 3000 pieces/Reel

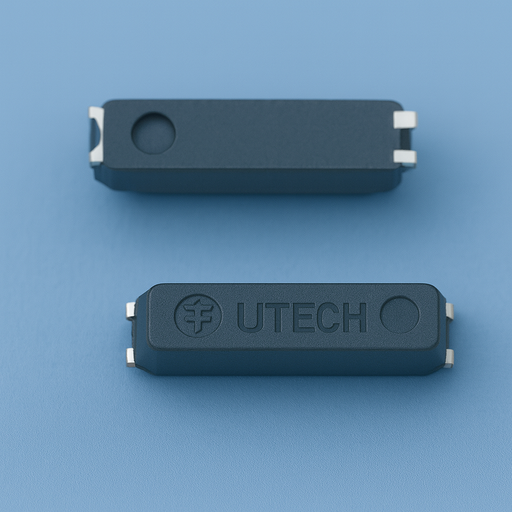

Manufacturer: UTECH

Case Size: QTS7 (SMD7015-P4)
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 12.5 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)^2
ESR max.: 65000 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 9000pcs/reel

Bauform: SMD7015-C4
Frequency: 32,768000 kHz
Mode: XY
Load Capacitance: 12,5 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ± -0.04ppm/ _C2 ppm
ESR max.: 65000 Ohm
Operating Temp.: -40 / +85 °C

'-
Manufacturer: YOKETAN
-
Case size: SMD7015-P4 / T7
Frequency: 32.768 kHz
Load Capacitance: 12.5 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
……[TC: -0,030ppm/°C² typ., -0,040ppm/°C² max.]
ESR max.: 65 kOhm
Operating Temp.: -40°C/+85°C
-
Quantity: 3000 pieces/Reel
-
===============================
Country of Origin: TAIWAN
Customs-Tariff-Code: 8541600
===============================

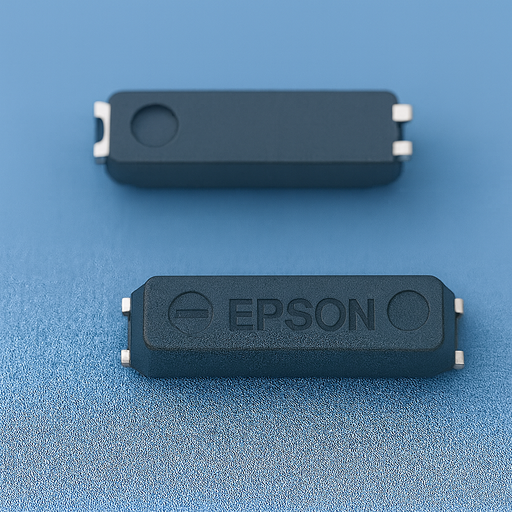

Manufacturer: EPSON

Epson P/N: Q13MC1461000214

Case Size: MC-146 (SMD7015-P4)
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 12.5 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
[TC: -0,030ppm/°C² typ., -0,040ppm/°C² max.]
ESR max.: 65000 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 1000pcs/reel

Manufacturer: EPSON

Epson P/N: Q13MC1461000200

Case Size: MC-146 (SMD7015-P4)
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 9.0 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
[TC: -0,030ppm/°C² typ., -0,040ppm/°C² max.]
ESR max.: 65000 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 3000pcs/reel

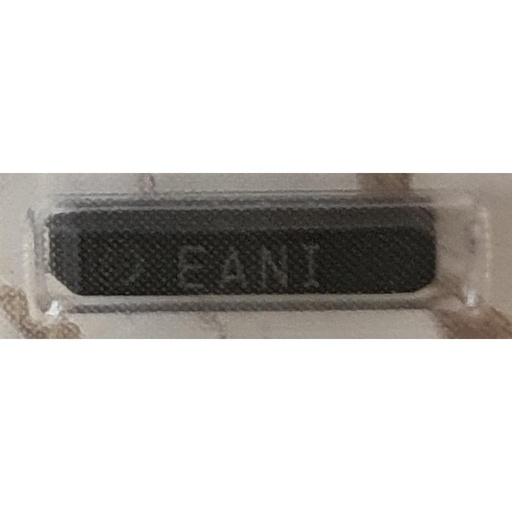

Seiko Instruments Inc

Case Size: SMD7015-P4
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 12.50 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
[TC: (-0,033 ±10%) x 10 -6/°C²]
ESR max.: 65000 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 3000pcs/reel

'-
Manufacturer: EPSON
Typ: MC-146
Case size: SMD7015-C4
Frequency: 32.768 kHz
Load Capacitance: 12.5 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: -(0.04)×10^-6 ppm max.
ESR max.: 65 kOhm
Operating Temp.: -40°C/+85°C
Quantity: 3000 pieces/Reel
