SUZHOU UTECH TECHNOLOGY CO.,LTD

Series: Oscillator SMD3225-M4 Type: kHz / AT characteristic
Dimension (mm): 3.2 x 2.5 x 1.00
Frequency: 32.768 kHz
Supply Voltage (VDD): +1.8 VDC ±10%
Frequency Tolerance: ±25 ppm "Over All" *
Supply Current max.: 10 mA
Output Load: LVCMOS
Start-up Time max.: 5 mS
Output Symmetry: 50% ±5%
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
E/D: High = active

Package Unit: 3000pcs/reel

* Definition Tolerance „Over All“: Including at +25°C, Over
Temperature Range, Supply Voltage Change, Shock and Vibration,
Aging 1st year

'-
UTECH Electronics Technology Co., Ltd.
-
Series: Oscillator SMD3225-M4 Type: kHz / AT characteristic
Dimension (mm): 3.2 x 2.5 x 1.00
Frequency: 32.768 kHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±20 ppm "Over All" *
Supply Current max.: 10 mA
Output Load: LVCMOS
Start-up Time max.: 5 mS
Output Symmetry: 50% ±5%
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
E/D: High = active
-
Package Unit: 500pcs/reel
-
* Definition Tolerance „Over All“: Including at +25°C, Over
Temperature Range, Supply Voltage Change, Shock and Vibration,
Aging 1st year

UTECH Electronics Technology Co., Ltd.

Series: Oscillator SMD3225-M4 Type: kHz / AT characteristic
Dimension (mm): 3.2 x 2.5 x 1.00
Frequency: 32.768 kHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±20 ppm
Supply Current max.: 10 mA
Output Load: LVCMOS
Start-up Time max.: 5 mS
Output Symmetry: 50% ±5%
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
E/D: High = active

Package Unit: 3000pcs/reel

* Definition Tolerance „Over All“: Including at +25°C, Over
Temperature Range, Supply Voltage Change, Shock and Vibration,
Aging 1st year

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 3000pcs/reel

Manufacturer: Epson Electronics
Part No.: Q33636E41012700

Typ: SMD-Oscillator SG-636PCE
Case size: SMD 10.5 x 5.8 x 0.10
Frequency: 33.330000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability: ±100 ppm
Operating Temp.: -20°C/+70°C

Package Unit: 1000pcs/reel

Manufacturer: UTECH TECHNOLOGY CO.,LTD

Series: Oscillator SMD3225-M4
Dimension (mm): 3.2 x 2.5 x 1.0
Frequency: 36.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±30 ppm OA
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
E/D: High = active

Package Unit: 3000pcs/reel

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS3
Case size: SMD3225-M4
Frequency: 4.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

Manufacturer: UTECH Electronics Technology Co., Ltd.

Series: Oscillator SMD3225-M4
Dimension (mm): 3.2 x 2.5 x 1.0
Frequency: 40.000000 MHz
Supply Voltage (VDD): +1.8 VDC ±10%
Frequency Tolerance: ±30 ppm
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
standby function: stop
standby current max.: 10μA
phase jitter 12 kHz ~ 20.0 MHz: < 1.0 ps RMS

Package Unit: 3000pcs/reel

UTECH TECHNOLOGY CO.,LTD

Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 40.000000 MHz
Power Supply Voltage: 1.8~3.6 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+105°C
Output Load (HCOMS): 30pF max., 15pF typ.

Pin #1: Tri-State | Pin #2: GND | Pin #3: Output | Pin#4: VCC

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C,
operating temperature range, input voltage change,
output load change, aging, shock and vibration.

Epson Electronics
X1G005961004115
SG3225CAN 40.000000MHZ TJHA

Typ: SMD-Oscillator SG3225CAN TJA
Case size: SMD 3.2 x 2.5 x 0.105
Frequency: 40.000000 MHz
Power Supply Voltage: 1.6 to 3.6 Volt
Frequency Stability: ±50 ppm
Operating Temp.: -40°C/+7105°C

Package Unit: 2000pcs/reel

UTECH TECHNOLOGY CO.,LTD

Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 40.000000 MHz
Power Supply Voltage: 2.5 Volt
Frequency Stability *: ±30 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.

Pin #1: Tri-State | Pin #2: GND | Pin #3: Output | Pin#4: VCC

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C,
operating temperature range, input voltage change,
output load change, aging, shock and vibration.

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS3
Case size: SMD3225-M4
Frequency: 48.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

'-
UTECH, Oscillator, SMD5032-M4, 5.000000 MHz, 5.0V, ±100ppm, -40/+85°C, CMOS/TTL, Tristate

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 5.000000 MHz
Power Supply Voltage: 5.0 Volt ±10%
Frequency Stability *: ±25 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.

Pin #1: Tri-State | Pin #2: GND | Pin #3: Output | Pin#4: VCC

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

'-
UTECH Electronics Technology Co., Ltd.
-
Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 5.000000 MHz
Power Supply Voltage: 5.0 Volt ±10%
Frequency Stability *: ±5 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
-
Pin #1: Tri-State | Pin #2: GND | Pin #3: Output | Pin#4: VCC
-
Package Unit: 3000pcs/reel
-
* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

Manufacturer: Epson Electronics
Part No.: Q33310N70003400

EAI PART NUMBER: SG-310SCN 50.0000MB

Typ: SMD-Oscillator SG-310SCN B
Case size: SMD3225-M4
Frequency: 50.000000 MHz
Power Supply Voltage: 2.7 ~ 3.6 Volt
Frequency Stability: ±50 ppm
Operating Temp.: -20°C/+70°C
Output Load: CMOS

Package Unit: 2000pcs/reel

Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 50.000000 MHz
Power Supply Voltage: 3.3 Volt ±5%
Input Current: 5.0 mA (2.5 mA max. no load)
Frequency Stability *: ±20 ppm
Symmetry: 50% ±5% typ.
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 3000pcs/reel

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 50.000000 MHz
Power Supply Voltage: 3.3 Volt ±5%
Input Current: 2.5 mA max. (no load)
Frequency Stability *: ±25 ppm
Symmetry: 50% ±5% typ.
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

'-
UTECH Electronics Technology Co., Ltd.
-
Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 50.000000 MHz
Power Supply Voltage: 3.3 Volt ±5%
Input Current: 25 mA max.
Frequency Stability *: ±50 ppm
Symmetry: 50% ±5% typ.
Operating Temp.: -40°C/+105°C
Output Load (HCOMS): 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3
-
* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 3000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 6.000000 MHz
Power Supply Voltage: 5.0 Volt ±5%
Input Current: 30 mA max.
Frequency Stability *: ±50 ppm
Symmetry: 50% ±5% typ.
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF typ.
Pin 1, Tri-state function:
.... Pin 1=H or open ... Output active at Pin3
.... Pin1=L ... high impedance at Pin3
-
* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

'-
Manufacturer: Utech Technology Co., Ltd.
-
Series: Oscillator SMD3225-M4
Type: QOS3
Dimension (mm): 3.2 x 2.5 x 1.0
Frequency: 7.372800 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Load(Impedance): 15 pF ±1.5pF
CMOS/TTL, Tristate
Icc = 6 mA max., 3 mA typ.
Frequency Tolerance OA: ±50 ppm*
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
-
Package Unit: 3000pcs/reel
-
*(Incl. Freq. Tolerance, Temp., Supply Voltage and Load)

SUZHOU UTECH TECHNOLOGY CO.,LTD

'-

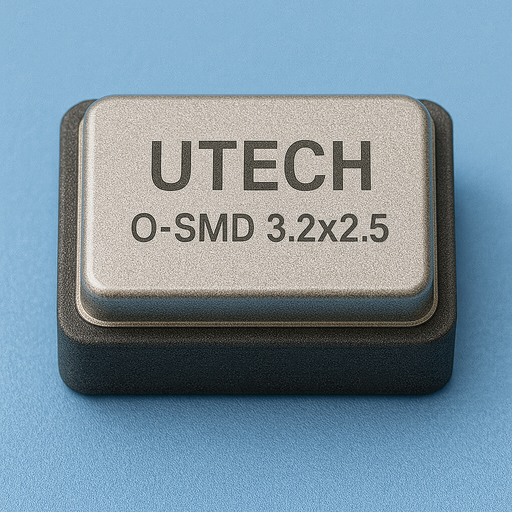

Manufacturer: Utech Technology Co., Ltd.
-
Series: Oscillator SMD3225-M4
Type: QOS3
Dimension (mm): 3.2 x 2.5 x 1.0
Frequency: 96.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Load(Impedance): 15 pF ±1.5pF
CMOS/TTL, Tristate
Icc = 10 mA max., 7 mA typ.
Frequency Tolerance OA: ±25 ppm*
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
-
Package Unit: 3000pcs/reel
-
*(Incl. Freq. Tolerance, Temp., Supply Voltage and Load)

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS3
Case size: SMD3225-M4
Frequency: 98.304000 MHz
Power Supply Voltage: 1.8 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000 pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.
