  2. O-SMD2520-M4-32.000000 MHz-1.6~3.6-25-2070 | FCXO-05
O-SMD2520-M4-32.000000 MHz-1.6~3.6-25-2070 | FCXO-05

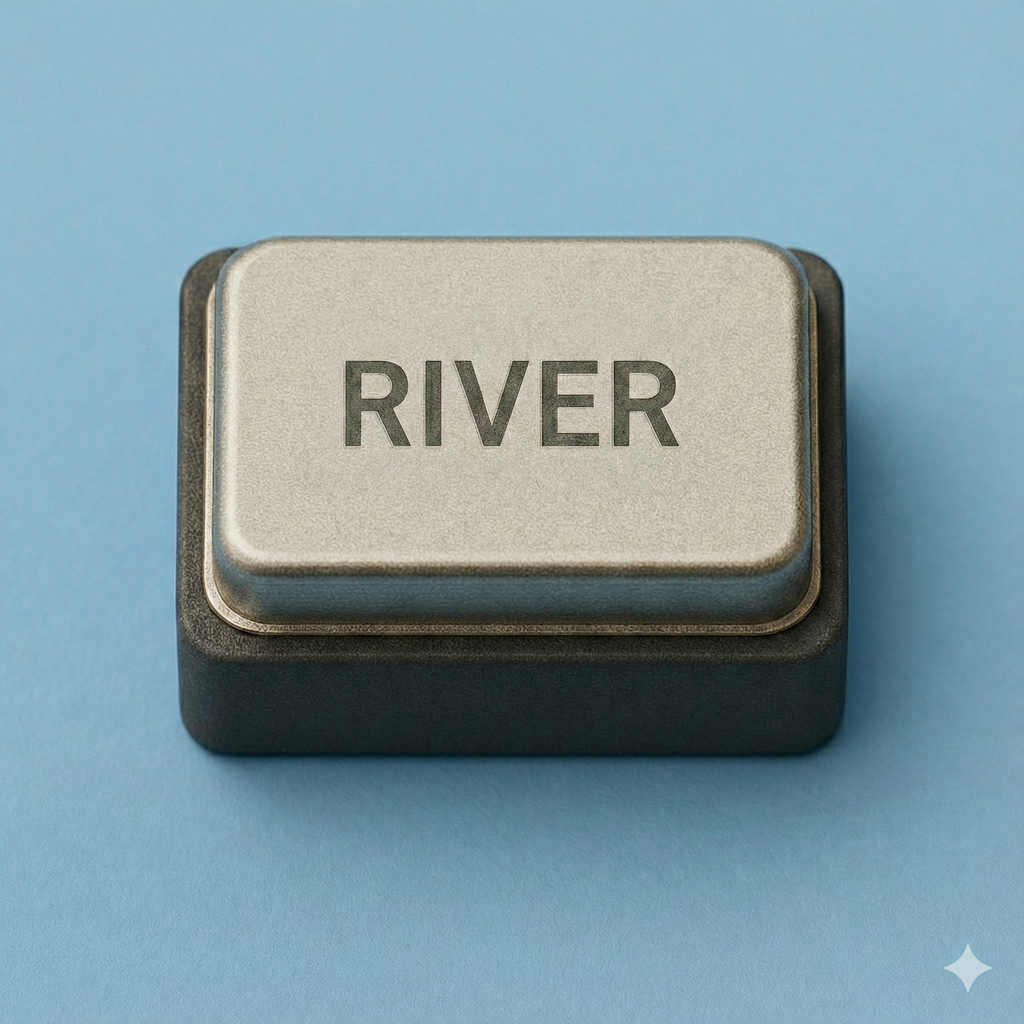

[24-0066] O-SMD2520-M4-32.000000 MHz-1.6~3.6-25-2070 | FCXO-05

https://www.quarzwerk.net/web/image/product.template/8030/image_1920?unique=cbafd41

'-
Manufacturer: RIVER ELECTRONICS (S) PTE. LTD.
-
Typ: SMD Oscillator FCXO-05
Case size: SMD2520-M4
Frequency: 32.000000 MHz (fund.)
Power Supply Voltage: +1.62 Volt to +3.63 Volt DC
Frequency Stability: ±25 ppm (tolerance "over all" including Frequency tolerance +25±3°C)
Operating Temp.: -20°C/+70°C
Storage Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF max. / 2TTL
-
Current consumption: 3mA Max. at VCC=3.3V
Stand-by current: 2.7μA Max. at VCC=3.3V

Package Unit: 3000pcs/reel

0,00 EUR 0.0 EUR 0,00 EUR Exklusive Mwst.

0,00 EUR Exklusive Mwst.

Not Available For Sale

  • O 3.01 Nominal Frequency (Fo)
  • O 3.02 Supply Voltage (VDD)
  • O 3.03 Input Current
  • O 3.04 Frequency Stability Over All *
  • O 3.05 Operating Temp. Range
  • O 3.07 Output Logic
  • O 3.08 Output Load
  • O 3.09 “1” Level
  • O 3.10 “0” Level
  • O 3.12 Symmetry
  • O 3.13 Rise / Fall Time
  • O 3.14 Output Disable / Enable Delay Time
  • O 3.15 Start-up Time
  • löschen --- A 1.02 Type
  • löschen --- A Manufacturer
  • löschen --- O 3.05 Operating Temperature Range

Diese Kombination existiert nicht.

Kontaktieren Sie uns


Spezifikationen​

OSCILLATOR
O 3.01 Nominal Frequency (Fo) 32.000000 MHz
O 3.02 Supply Voltage (VDD) 1.6 ~ 3.6 V
O 3.03 Input Current 3.0 mA ---
O 3.04 Frequency Stability Over All * 25
O 3.05 Operating Temp. Range -20°C ~ +70°C
O 3.07 Output Logic TTL
O 3.08 Output Load 15pF
O 3.09 “1” Level -
O 3.10 “0” Level ≤ 10 % VDD
O 3.12 Symmetry -
O 3.13 Rise / Fall Time -
O 3.14 Output Disable / Enable Delay Time -
O 3.15 Start-up Time -
Nicht kategorisiert
löschen --- A 1.02 Type O-SMD2520
löschen --- A Manufacturer RIVER
löschen --- O 3.05 Operating Temperature Range -
