  2. O-SMD1612-M4-20.000000 MHz-1.60~3.63-25-4085 | FCXO-07
O-SMD1612-M4-20.000000 MHz-1.60~3.63-25-4085 | FCXO-07

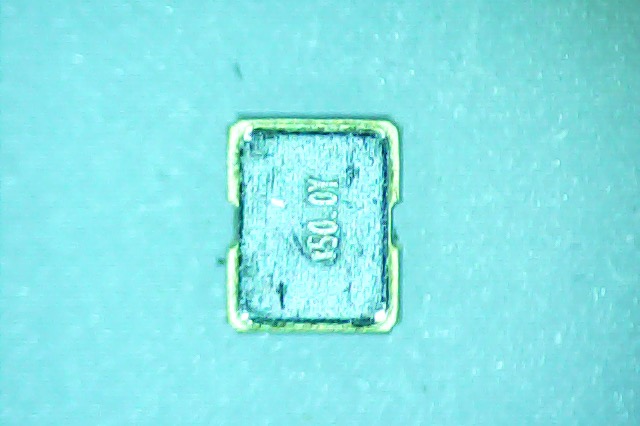

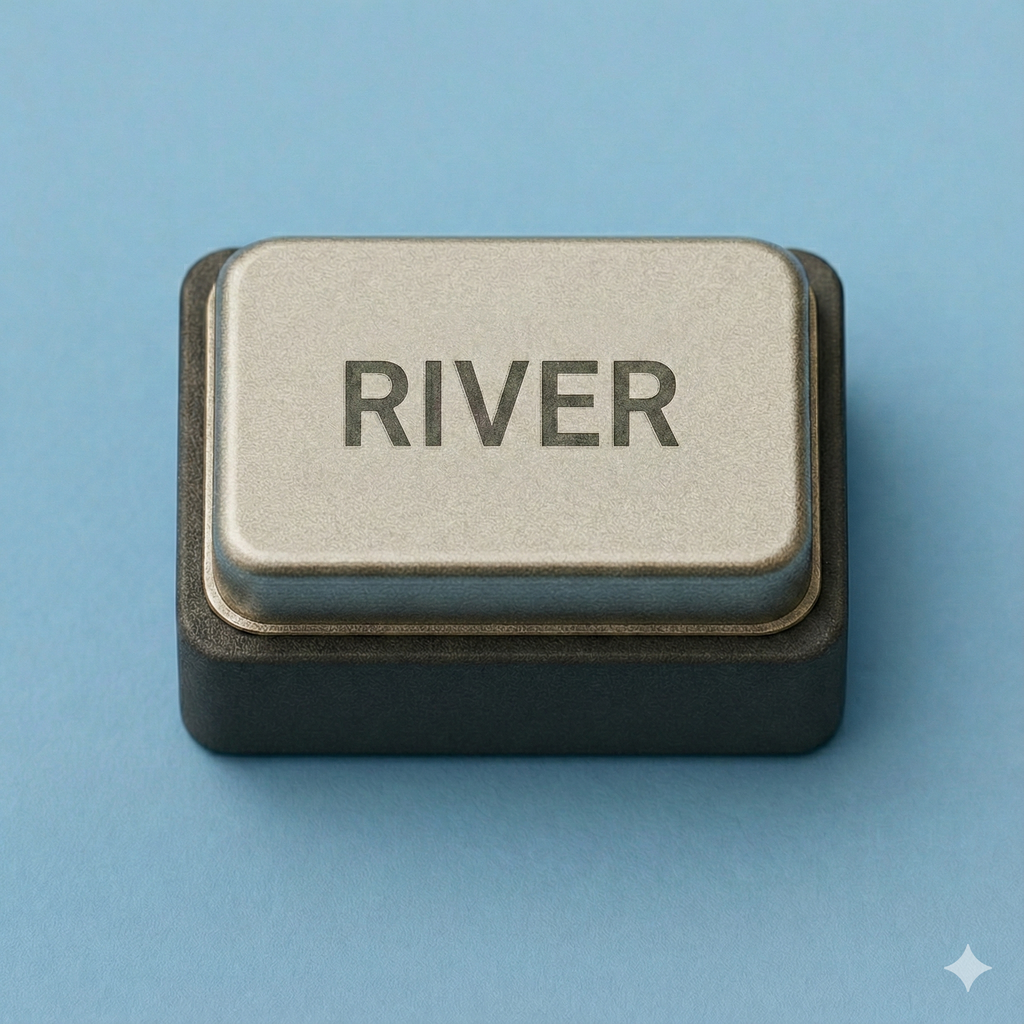

[24-0001] O-SMD1612-M4-20.000000 MHz-1.60~3.63-25-4085 | FCXO-07

https://www.quarzwerk.net/web/image/product.template/7991/image_1920?unique=9df905a

'-
RIVER Electronics (S) Pte Ltd
-
Typ: SMD-Oscillator HCMOS
Case size: SMD1612-M4 | FCXO-07 (1.6 × 1.2 × 0.7 mm Max./4.1 mg)
Frequency: 20.000000 MHz
Power Supply Voltage: 1.60V ~ 3.63V
Frequency Stability *: ±25 ppm
Operating Temp.: -40°C/+85°C
Pin 1, Stand-by function: Pin 1=H or open ... Output active at
Pin3 / Pin1=L ... high impedance at Pin3
-
* ±10ppm at +25°C; ±15ppm at -40°C/+85°C

0,00 EUR 0.0 EUR 0,00 EUR Exklusive Mwst.

0,00 EUR Exklusive Mwst.

Not Available For Sale

  • O 3.01 Nominal Frequency (Fo)
  • O 3.02 Supply Voltage (VDD)
  • O 3.03 Input Current
  • O 3.04 Frequency Stability Over All *
  • O 3.05 Operating Temp. Range
  • O 3.07 Output Logic
  • O 3.08 Output Load
  • O 3.09 “1” Level
  • O 3.10 “0” Level
  • O 3.12 Symmetry
  • O 3.13 Rise / Fall Time
  • O 3.14 Output Disable / Enable Delay Time
  • O 3.15 Start-up Time
  • löschen --- A 1.02 Type
  • löschen --- A Manufacturer
  • löschen --- O 3.05 Operating Temperature Range

Diese Kombination existiert nicht.

Kontaktieren Sie uns


Spezifikationen​

OSCILLATOR
O 3.01 Nominal Frequency (Fo) 20.000000 MHz
O 3.02 Supply Voltage (VDD) 1.60 ~ 3.63 V
O 3.03 Input Current -
O 3.04 Frequency Stability Over All * 25
O 3.05 Operating Temp. Range -40°C ~ +85°C
O 3.07 Output Logic HCMOS
O 3.08 Output Load -
O 3.09 “1” Level -
O 3.10 “0” Level ≤ 10 % VDD
O 3.12 Symmetry -
O 3.13 Rise / Fall Time -
O 3.14 Output Disable / Enable Delay Time -
O 3.15 Start-up Time -
Nicht kategorisiert
löschen --- A 1.02 Type O-SMD1612
löschen --- A Manufacturer RIVER
löschen --- O 3.05 Operating Temperature Range -
