  2. O-SMD2016-M4-8.000000 MHz-3.3-30-4085

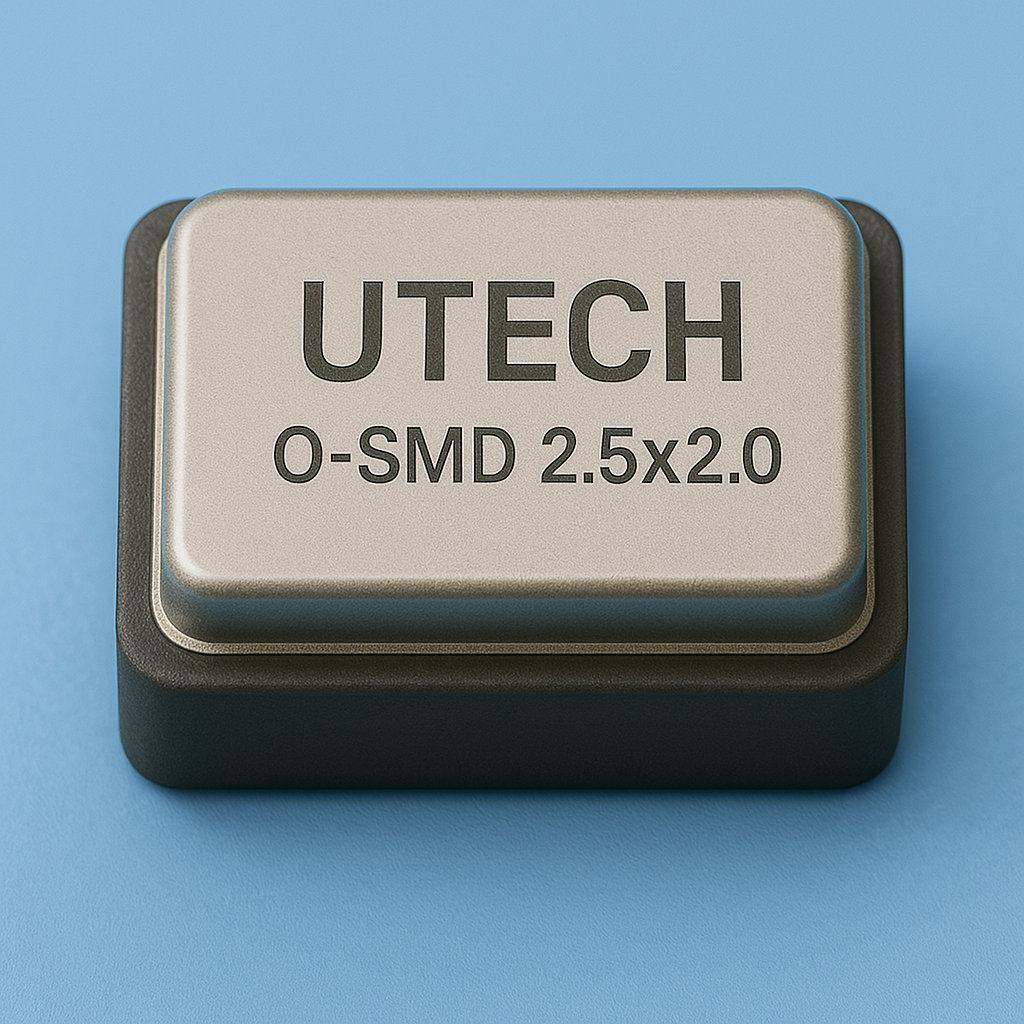

O-SMD2016-M4-8.000000 MHz-3.3-30-4085

[20-0135] O-SMD2016-M4-8.000000 MHz-3.3-30-4085

https://www.quarzwerk.net/web/image/product.template/8015/image_1920?unique=cbafd41

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator HCMOS - QOS1
Case size: SMD2016-M4
Frequency: 8.000000 MHz
Power Supply Voltage: 3.3 Volt ±10%
Frequency Stability *: ±30 ppm
Operating Temp.: -40°C/+85°C
Output Enable: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high imp. at Pin3

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

Ursprungsland: China

0,00 EUR 0.0 EUR 0,00 EUR Exklusive Mwst.

0,00 EUR Exklusive Mwst.

Not Available For Sale

  • O 3.01 Nominal Frequency (Fo)
  • O 3.02 Supply Voltage (VDD)
  • O 3.03 Input Current
  • O 3.04 Frequency Stability Over All *
  • O 3.05 Operating Temp. Range
  • O 3.07 Output Logic
  • O 3.08 Output Load
  • O 3.09 “1” Level
  • O 3.10 “0” Level
  • O 3.12 Symmetry
  • O 3.13 Rise / Fall Time
  • O 3.14 Output Disable / Enable Delay Time
  • O 3.15 Start-up Time
  • löschen --- A 1.02 Type
  • löschen --- A Manufacturer
  • löschen --- O 3.05 Operating Temperature Range

Diese Kombination existiert nicht.

Kontaktieren Sie uns


Spezifikationen​

OSCILLATOR
O 3.01 Nominal Frequency (Fo) 8.000000 MHz
O 3.02 Supply Voltage (VDD) 3.3 V
O 3.03 Input Current -
O 3.04 Frequency Stability Over All * 30
O 3.05 Operating Temp. Range -40°C ~ +85°C
O 3.07 Output Logic HCMOS
O 3.08 Output Load -
O 3.09 “1” Level -
O 3.10 “0” Level ≤ 10 % VDD
O 3.12 Symmetry -
O 3.13 Rise / Fall Time -
O 3.14 Output Disable / Enable Delay Time -
O 3.15 Start-up Time -
Nicht kategorisiert
löschen --- A 1.02 Type O-SMD2016
löschen --- A Manufacturer SUZHOU UTECH TECHNOLOGY CO.,LTD
löschen --- O 3.05 Operating Temperature Range -
