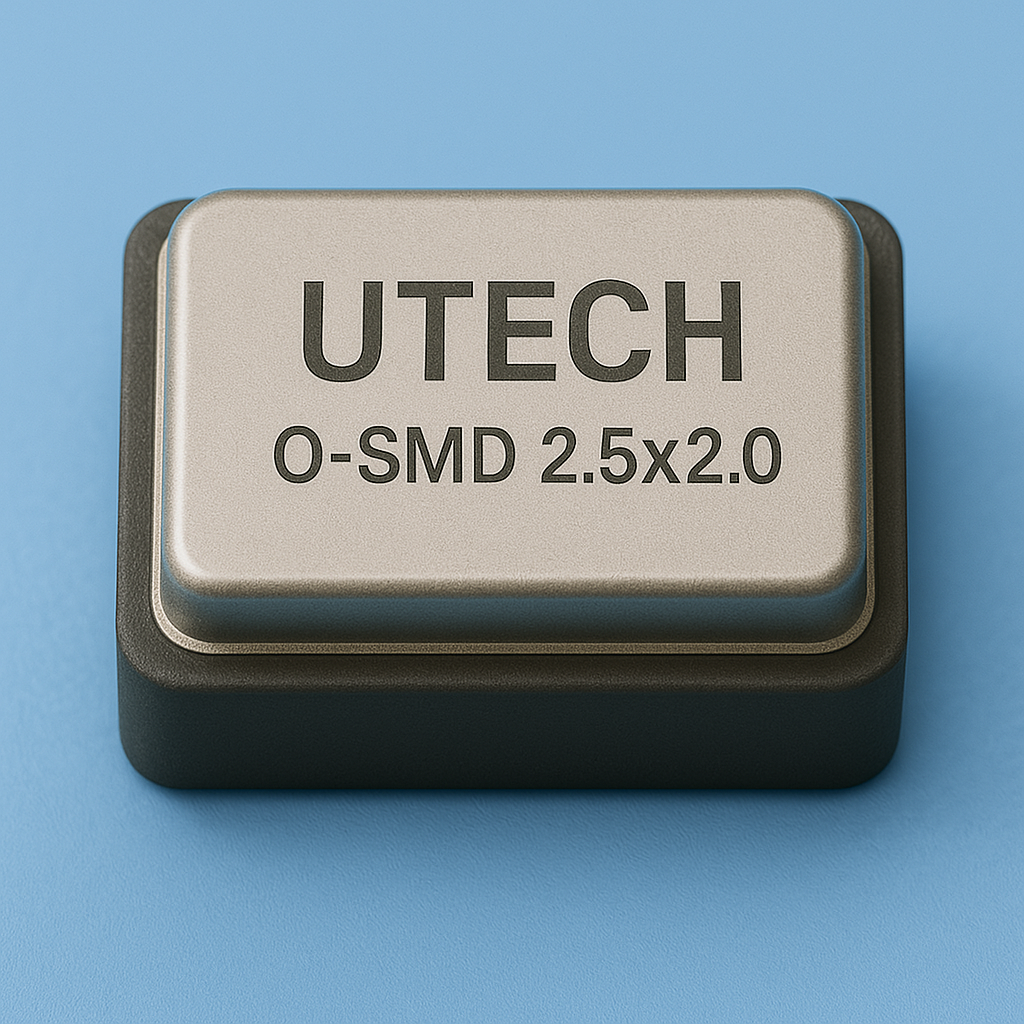

O-SMD2520-M4-13.560000 MHz-3.3-25-4085-LEGIC

[20-0020] O-SMD2520-M4-13.560000 MHz-3.3-25-4085-LEGIC

https://www.quarzwerk.net/web/image/product.template/8043/image_1920?unique=cbafd41

'-
Manufacturer: Utech Technology Co., Ltd.
Series: Oscillator SMD2520-M4
Type: QOS2
Dimension (mm): 2.5 x 2.0 x 0.90
Frequency: 13.560000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Load(Impedance): 15 pF ±1.5pF
CMOS/TTL, Tristate
Icc = 7mA max.
Frequency Tolerance: ±25 ppm*
Aging: ±5ppm max. per year (at +25°C ±5°C)
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Package Unit: 1000pcs/reel
-
*(Incl. Freq. Tolerance, Temp., Supply Voltage and Load)

0,00 EUR 0.0 EUR 0,00 EUR Exklusive Mwst.

0,00 EUR Exklusive Mwst.

Not Available For Sale

  • O 3.01 Nominal Frequency (Fo)
  • O 3.02 Supply Voltage (VDD)
  • O 3.03 Input Current
  • O 3.04 Frequency Stability Over All *
  • O 3.05 Operating Temp. Range
  • O 3.07 Output Logic
  • O 3.08 Output Load
  • O 3.09 “1” Level
  • O 3.10 “0” Level
  • O 3.12 Symmetry
  • O 3.13 Rise / Fall Time
  • O 3.14 Output Disable / Enable Delay Time
  • O 3.15 Start-up Time
  • löschen --- A 1.02 Type
  • löschen --- A Manufacturer
  • löschen --- O 3.05 Operating Temperature Range

Diese Kombination existiert nicht.

Kontaktieren Sie uns


Spezifikationen​

OSCILLATOR
O 3.01 Nominal Frequency (Fo) 13.560000 MHz
O 3.02 Supply Voltage (VDD) 3.3 V
O 3.03 Input Current 7.0 mA
O 3.04 Frequency Stability Over All * 25
O 3.05 Operating Temp. Range -40°C ~ +85°C
O 3.07 Output Logic CMOS
O 3.08 Output Load 15 pF
O 3.09 “1” Level -
O 3.10 “0” Level ≤ 10 % VDD
O 3.12 Symmetry -
O 3.13 Rise / Fall Time -
O 3.14 Output Disable / Enable Delay Time -
O 3.15 Start-up Time -
Nicht kategorisiert
löschen --- A 1.02 Type O-SMD2520
löschen --- A Manufacturer SUZHOU UTECH TECHNOLOGY CO.,LTD
löschen --- O 3.05 Operating Temperature Range -
