  2. O-SMD7050-M4-6.000000 MHz-5.0-100-2070

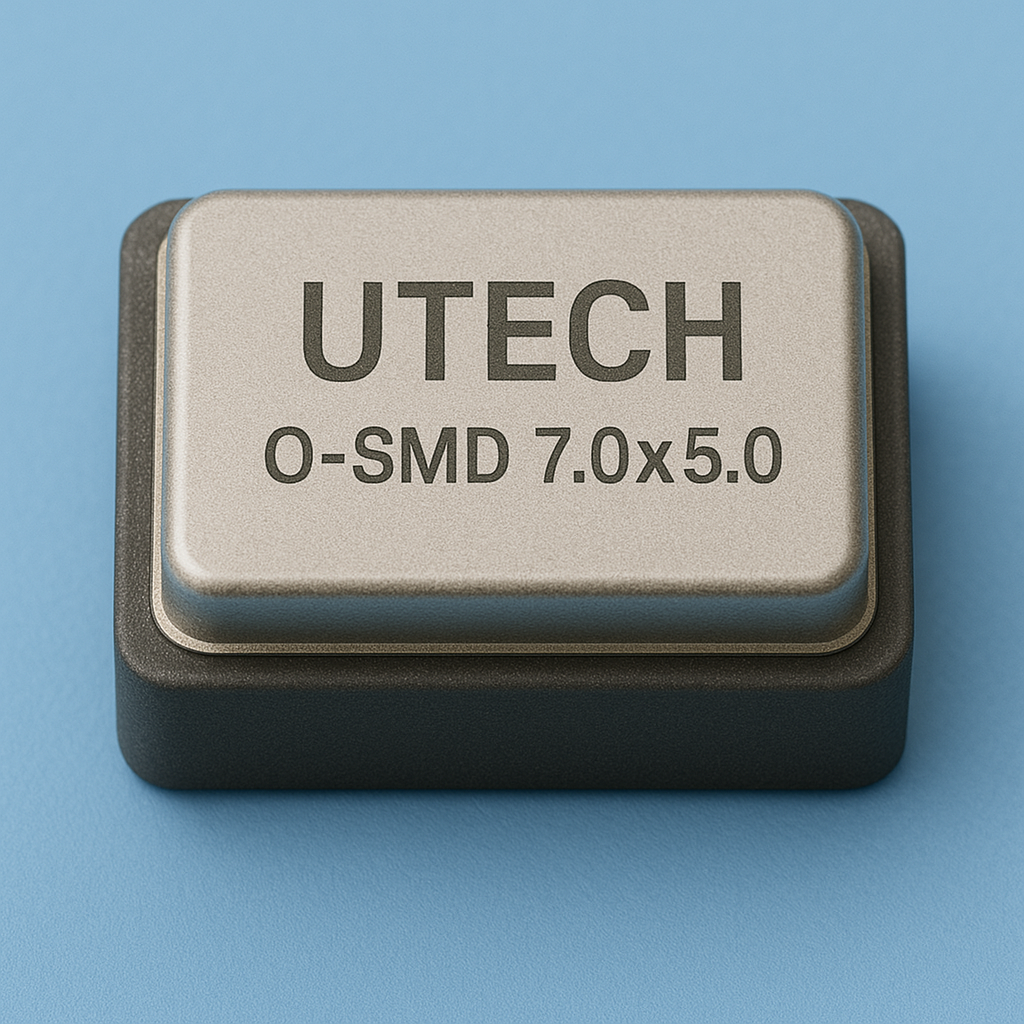

O-SMD7050-M4-6.000000 MHz-5.0-100-2070

[20-0019] O-SMD7050-M4-6.000000 MHz-5.0-100-2070

https://www.quarzwerk.net/web/image/product.template/8166/image_1920?unique=3a3cab3

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD7050-M4
Type: QOS7
Dimension (mm): 7.0 x 5.0 x 1.0
Frequency: 16.000000 MHz
Supply Voltage (VDD): +5.0 VDC ±10%
Input Current: 20 mA max.
Frequency Tolerance: ±50 ppm
Output Logic / Output Load: HCMOS / 1 ~10 TTL / 30 pF max
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
Symmetry: 50% ±10%
Rise & Fall Time: ≤ 5 ns
Output Disable / Enable Time: ≤ 100 ns
Start-up Time: ≤ 5 ms
Package Unit: 1000pcs/reel

0,00 EUR 0.0 EUR 0,00 EUR Exklusive Mwst.

0,00 EUR Exklusive Mwst.

Not Available For Sale

  • O 3.01 Nominal Frequency (Fo)
  • O 3.02 Supply Voltage (VDD)
  • O 3.03 Input Current
  • O 3.04 Frequency Stability Over All *
  • O 3.05 Operating Temp. Range
  • O 3.07 Output Logic
  • O 3.08 Output Load
  • O 3.09 “1” Level
  • O 3.10 “0” Level
  • O 3.12 Symmetry
  • O 3.13 Rise / Fall Time
  • O 3.14 Output Disable / Enable Delay Time
  • O 3.15 Start-up Time
  • löschen --- A 1.02 Type
  • löschen --- A Manufacturer
  • löschen --- O 3.05 Operating Temperature Range

Diese Kombination existiert nicht.

Kontaktieren Sie uns


Spezifikationen​

OSCILLATOR
O 3.01 Nominal Frequency (Fo) 6.000000 MHz
O 3.02 Supply Voltage (VDD) 5.0 V
O 3.03 Input Current 20.0 mA
O 3.04 Frequency Stability Over All * 100
O 3.05 Operating Temp. Range -20°C ~ +70°C
O 3.07 Output Logic HCMOS
O 3.08 Output Load 30 pF
O 3.09 “1” Level -
O 3.10 “0” Level Voltage (VDD): +5.0 VDC ±10%
O 3.12 Symmetry -
O 3.13 Rise / Fall Time Fall Time: ≤ 5 ns
O 3.14 Output Disable / Enable Delay Time -
O 3.15 Start-up Time ≤ 5 ms max.
Nicht kategorisiert
löschen --- A 1.02 Type O-SMD7050
löschen --- A Manufacturer SUZHOU UTECH TECHNOLOGY CO.,LTD
löschen --- O 3.05 Operating Temperature Range -
