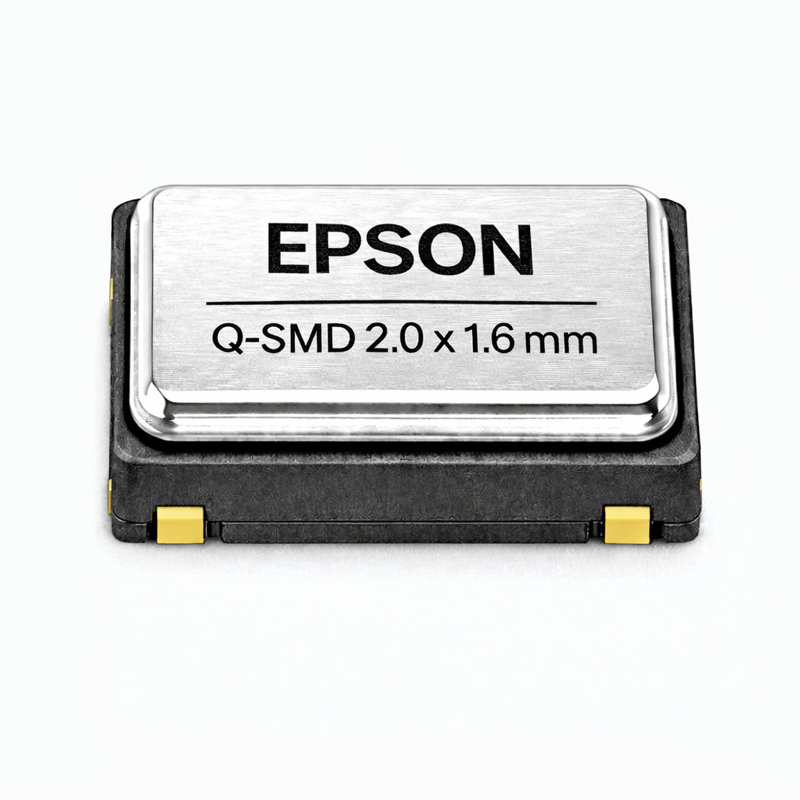

Q-SMD2016-M4-39.000000 MHz-FU-8-10/10-2075 | Epson FA-128

[11-0076]

Q-SMD2016-M4-39.000000 MHz-FU-8-10/10-2075 | Epson FA-128

Produktstatus:

SEIKO EPSON CVORPORATION

FA-238 / Q-SMD2016
TR3000

Menge	Stückpreis
ab 1	0,0000 EUR
ab 31	0,1800 EUR
ab 100	0,1600 EUR
ab 1000	0,1200 EUR
ab 3000	0,1000 EUR

A 1.00 Manufacturer Name
- EPSON
A 1.01 Manufacturer Part No.
A 1.02 Description
- Quartz Crystal Resonator
A 1.03 Series
A 1.04 Dimension & Type
- MHz | SMD2016 (2.0 x 1.6 mm)
Q 3.01 Nominal frequency (Fo)
Q 3.02 Oscillation Mode
Q 3.03 Load Capacitance (CL)
Q 3.04 Freq. Tol. max. (at +25℃)
Q 3.05 Freq. Stability Vs Temp. max.
Q 3.06 Operating Temp. Range
Q 3.07 Storage Temp. Range
Q 3.08 Equivalent Res. (ESR)
Q 3.09 Shunt Capacitance C0 (pf max.)
Q 3.10 Motional Capacitance C1 (fF max.)
Q 3.11 Drive Level (Typical)
Q 3.12 Drive Level (Max.)
Q 3.13 Insulation Resistance
Q 3.14 Air-tightness
Q 3.15 Aging

Diese Kombination existiert nicht.

In den Warenkorb

Dokumente

FA-128_Q22FA12800713_en.pdf

Spezifikationen

ALLGEMEIN
A 1.00 Manufacturer Name	EPSON
A 1.01 Manufacturer Part No.	Q22FA1280071314
A 1.02 Description	Quartz Crystal Resonator
A 1.03 Series	FA-128
A 1.04 Dimension & Type	MHz \| SMD2016 (2.0 x 1.6 mm)

QUARZ
Q 3.01 Nominal frequency (Fo)	39.000000 MHz
Q 3.02 Oscillation Mode	Fundamental AT
Q 3.03 Load Capacitance (CL)	8.0 pF
Q 3.04 Freq. Tol. max. (at +25℃)	-
Q 3.05 Freq. Stability Vs Temp. max.	-
Q 3.06 Operating Temp. Range	-20ºC to +75ºC
Q 3.07 Storage Temp. Range	-55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR)	60 Ω max.
Q 3.09 Shunt Capacitance C0 (pf max.)	0.79
Q 3.10 Motional Capacitance C1 (fF max.)	3.05
Q 3.11 Drive Level (Typical)	1 µW to 100 µW (Recommended: 10 µW)
Q 3.12 Drive Level (Max.)	-
Q 3.13 Insulation Resistance	-
Q 3.14 Air-tightness	-
Q 3.15 Aging	-
