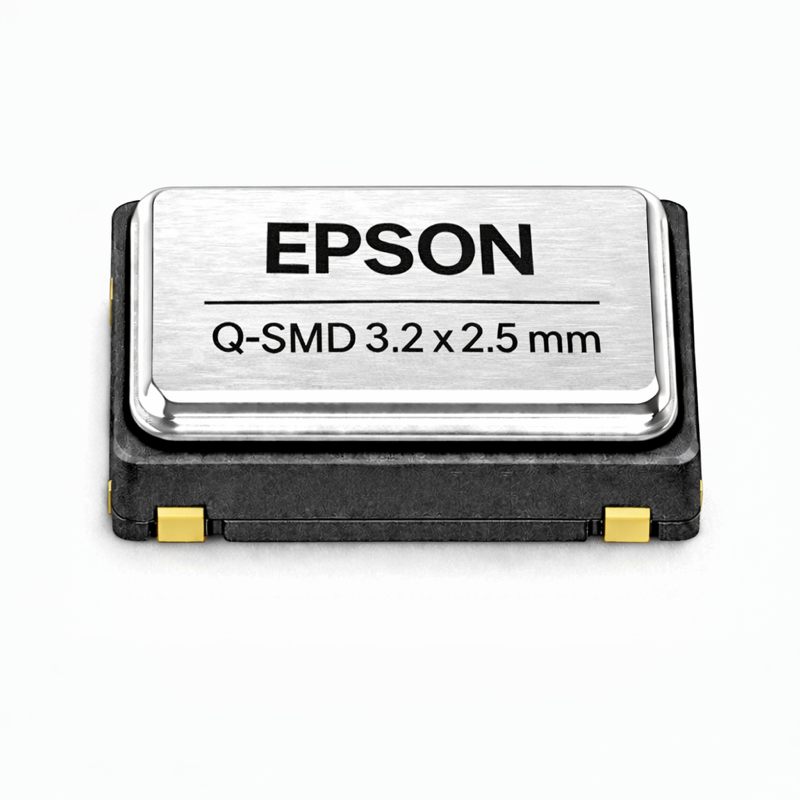

Q-SMD3225-M4-48.000000 MHz-FU-7-10/10-2075 | Epson TSX-3225

[11-0071]

Q-SMD3225-M4-48.000000 MHz-FU-7-10/10-2075 | Epson TSX-3225

Produktstatus:

SUZHOU UTECH TECHNOLOGY CO.,LTD
QRS3
TR3000

0,0000 EUR

Menge	Stückpreis
ab 1	0,0000 EUR
ab 31	0,1400 EUR
ab 100	0,1200 EUR
ab 1000	0,0900 EUR
ab 3000	0,0800 EUR

A 1.00 Manufacturer Name
- EPSON
A 1.01 Manufacturer Part No.
A 1.02 Description
- Quartz Crystal Resonator
A 1.04 Dimension & Type
A 1.05 VPE
A 1.07 Last Update
- -
Q 3.01 Nominal frequency (Fo)
Q 3.02 Oscillation Mode
Q 3.03 Load Capacitance (CL)
Q 3.04 Freq. Tol. max. (at +25℃)
Q 3.05 Freq. Stability Vs Temp. max.:
Q 3.06 Operating Temp. Range
Q 3.07 Storage Temp. Range
Q 3.08 Equivalent Res. (ESR)
Q 3.09 Shunt Capacitance C0 (pf max.)
Q 3.10 Motional Capacitance C1 (fF max.)
Q 3.11 Drive Level (Typical)
Q 3.12 Drive Level (Max.)
Q 3.13 Insulation Resistance
Q 3.14 Air-tightness
Q 3.15 Aging

Diese Kombination existiert nicht.

In den Warenkorb

Spezifikationen

ALLGEMEIN
A 1.01 Manufacturer Part No.	X1E0000210866 oder X1E0000210866xx
A 1.00 Manufacturer Name	EPSON
A 1.02 Description	Quartz Crystal Resonator
A 1.04 Dimension & Type	SMD3225 (3.2 x 2.5 mm)
A 1.05 VPE	TR3000
A 1.07 Last Update	-

QUARZ
Q 3.01 Nominal frequency (Fo)	48.000000 MHz
Q 3.02 Oscillation Mode	Fundamental AT
Q 3.03 Load Capacitance (CL)	7.0 pF
Q 3.04 Freq. Tol. max. (at +25℃)	±10 ppm max.
Q 3.05 Freq. Stability Vs Temp. max.:	±10 ppm max.
Q 3.06 Operating Temp. Range	-20ºC to +75ºC
Q 3.07 Storage Temp. Range	-55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR)	40 Ω max.
Q 3.09 Shunt Capacitance C0 (pf max.)	2.07
Q 3.10 Motional Capacitance C1 (fF max.)	7.32
Q 3.11 Drive Level (Typical)	-
Q 3.12 Drive Level (Max.)	-
Q 3.13 Insulation Resistance	-
Q 3.14 Air-tightness	-
Q 3.15 Aging	±1 ppm max first year
