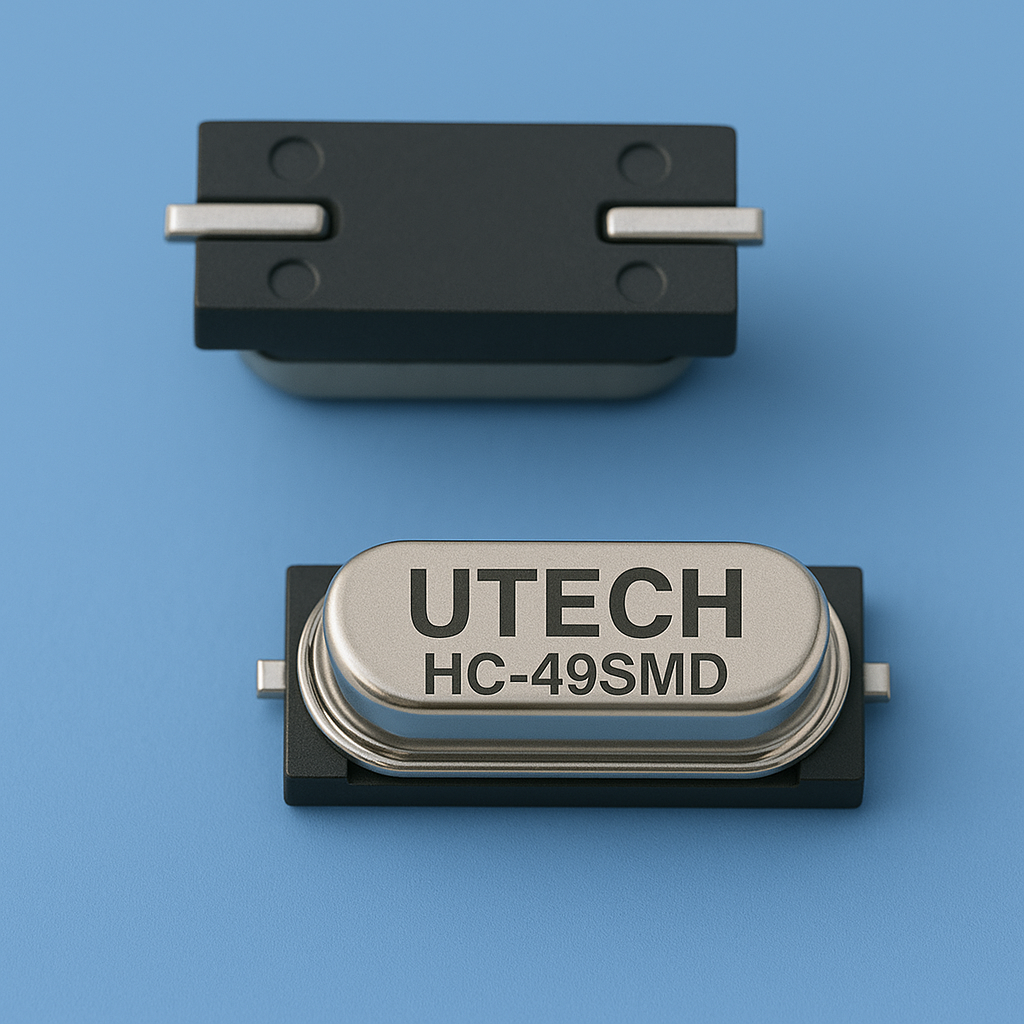

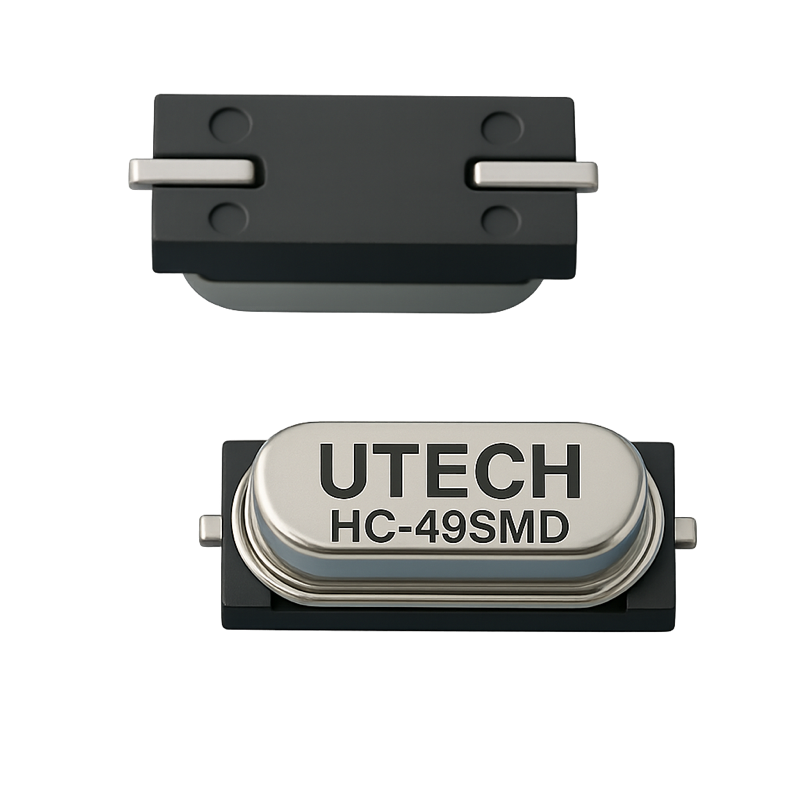

Q-HC-49SMD3-10.368000 MHz-FU-10-10/10-1060

• A 1.00 Manufacturer Name
  • UTECH
• A 1.01 Manufacturer Part No. - QRSN010368C10A
• A 1.02 Description
  • Quartz Crystal Resonator
• A 1.03 Series QRSN
• A 1.04 Dimension & Type
  • MHz | 49SMD
• A 1.05 PU TR1000
• A 1.06 Date Created
  • -
• A 1.07 Last Update
  • -
• Q 3.01 Nominal frequency (Fo) 10.368000 MHz
• Q 3.02 Oscillation Mode Fundamental
• Q 3.03 Load Capacitance (CL) 10.0 pF
• Q 3.04 Freq. Tol. max. (at +25℃) ±10 ppm max.
• Q 3.05 Freq. Stability Vs Temp. max. ±10 ppm max.
• Q 3.06 Operating Temp. Range -10°C ~ +60°C
• Q 3.07 Storage Temp. Range -55°C ~ +125°C
• Q 3.08 Equivalent Res. (ESR) 40 Ω max.
• Q 3.09 Shunt Capacitance C0 (pf max.) 5 pF max.
• Q 3.10 Motional Capacitance C1 (fF max.) -
• Q 3.11 Drive Level (Typical) 10 µW
• Q 3.12 Drive Level (Max.) 500 µW
• Q 3.13 Insulation Resistance More than 500 MΩ @ DC 100V
• Q 3.14 Air-tightness Less than 1´10-9 Pa m3/s (Helium leak detector)
• Q 3.15 Aging ±3 ppm max first year
