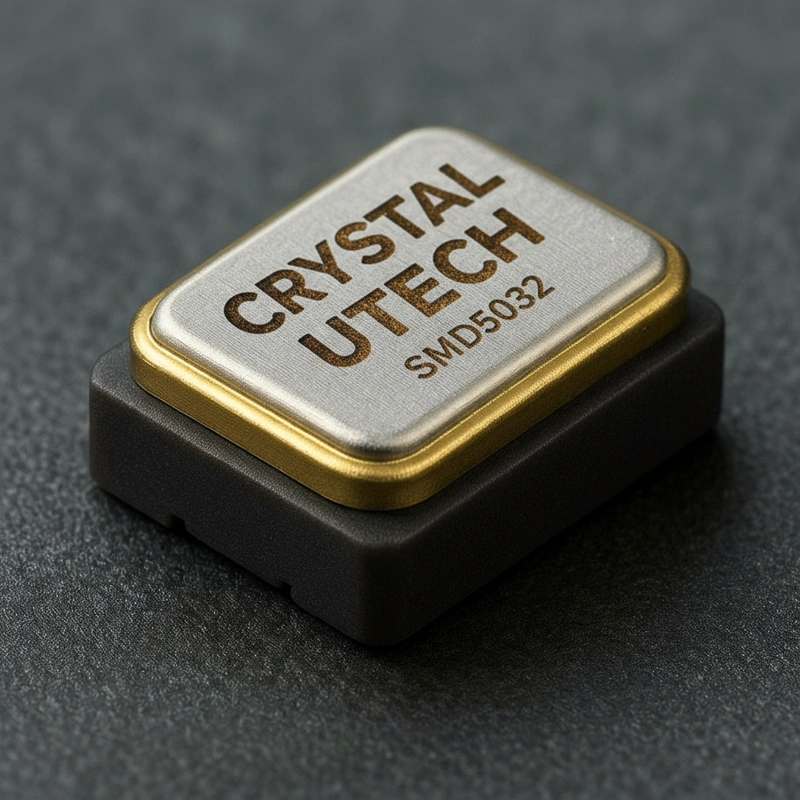

Q-SMD5032-M4-10.000000 MHz-FU-16-10/20-4085

[10-0304] Q-SMD5032-M4-10.000000 MHz-FU-16-10/20-4085

'-
UTECH, SMD5032-M4, 10.000000 MHz, fund., 16pF, ±10ppm@+25°C, ±20ppm over Temp., ESR max.: 60 Ohm, -40/+85°C

0,00 EUR 0.0 EUR 0,00 EUR Exklusive Mwst.

0,00 EUR Exklusive Mwst.

Menge	Stückpreis
ab 1	0,00 EUR

A 1.00 Manufacturer Name
A 1.01 Type
- Quartz Crystal Resonator
Q 3.01 Nominal frequency (Fo)
Q 3.02 Oscillation Mode
Q 3.03 Load Capacitance (CL)
Q 3.04 Freq. Tol. max. (at +25℃)
Q 3.05 Freq. Stability Vs Temp. max.:
Q 3.06 Operating Temp. Range
Q 3.07 Storage Temp. Range
Q 3.08 Equivalent Res. (ESR)
Q 3.09 Shunt Capacitance C0
Q 3.10 Drive Level
Q 3.11 Drive Level
Q 3.12 Insulation Resistance
Q 3.13 Air-tightness
Q 3.14 Aging
A 1.01 Manufacturer Part No.
A 1.04 Dimension & Type
- pls define
Q 1.4 Version---

Diese Kombination existiert nicht.

In den Warenkorb

Spezifikationen

ALLE
A 1.00 Manufacturer Name	SUZHOU UTECH TECHNOLOGY CO.,LTD
A 1.01 Type	Quartz Crystal Resonator

QUARZ
Q 3.01 Nominal frequency (Fo)	10.000000 MHz
Q 3.02 Oscillation Mode	Fundamental
Q 3.03 Load Capacitance (CL)	16.0 pF
Q 3.04 Freq. Tol. max. (at +25℃)	±10 ppm max.
Q 3.05 Freq. Stability Vs Temp. max.:	±20 ppm max.
Q 3.06 Operating Temp. Range	-40°C ~ +85°C
Q 3.07 Storage Temp. Range	-55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR)	60 Ω max.
Q 3.09 Shunt Capacitance C0	-
Q 3.10 Drive Level	-
Q 3.11 Drive Level	-
Q 3.12 Insulation Resistance	-
Q 3.13 Air-tightness	-
Q 3.14 Aging	-

Nicht kategorisiert
A 1.01 Manufacturer Part No.	-
A 1.04 Dimension & Type	pls define
Q 1.4 Version---	-
