  2. Q-SMD2520-M4-24.000000 MHz-FU-12-10/15-3085

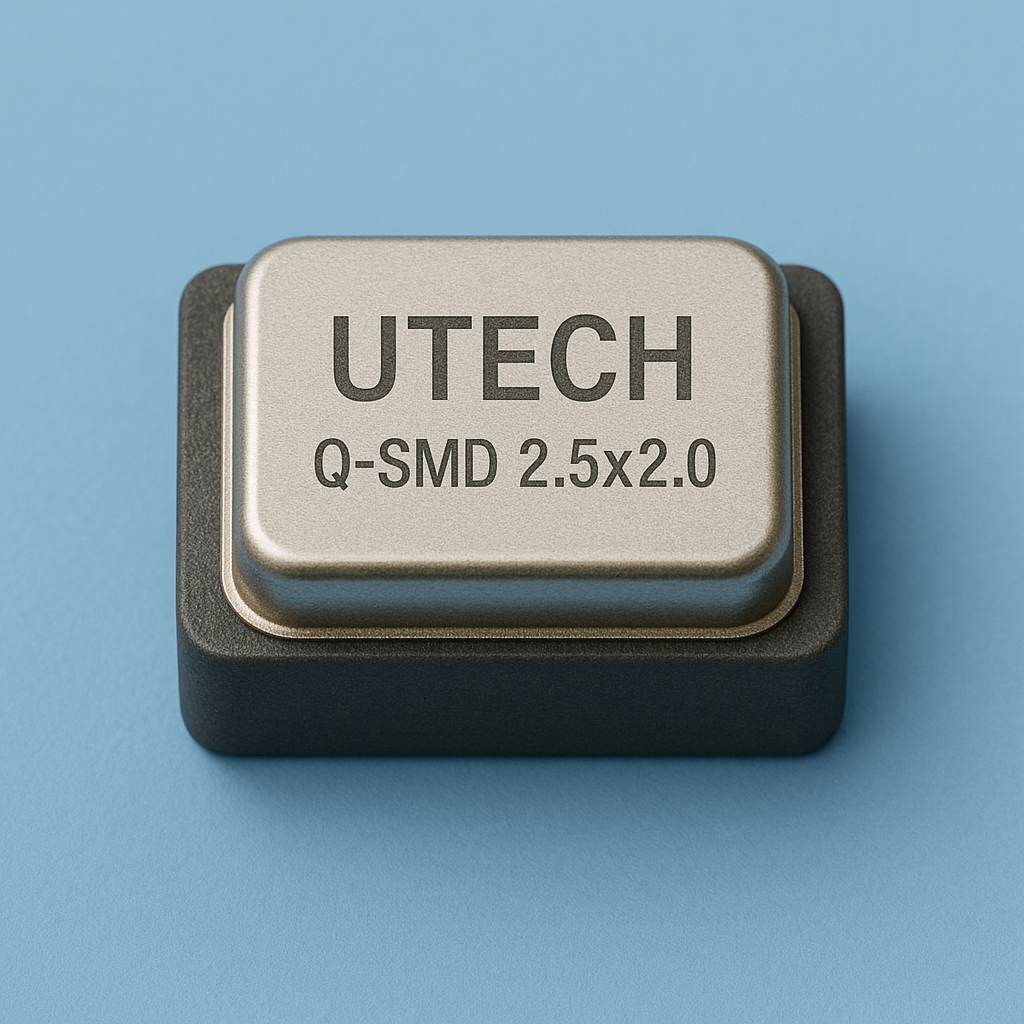

Q-SMD2520-M4-24.000000 MHz-FU-12-10/15-3085

[10-0792] Q-SMD2520-M4-24.000000 MHz-FU-12-10/15-3085

https://www.quarzwerk.net/web/image/product.template/8520/image_1920?unique=140e1ad

UTECH Electronics Technology Co., Ltd.

Case Size: SMD2520-M4
Frequency: 24.000000 MHz
Mode: fund. AT
Load Capacitance: 12.0 pF
Tolerance at +25°C: ±10 ppm
Tolerance over Temp.: ±15 ppm
Aging: ±1 ppm max 1 year
ESR max.: 60 Ohm
Operating Temp.: -30°C/+85°C

Package Unit: 3000pcs/reel

0,00 EUR 0.0 EUR 0,00 EUR Exklusive Mwst.

0,00 EUR Exklusive Mwst.

Not Available For Sale

Menge Stückpreis
ab 30 0,25 EUR
  • A 1.00 Manufacturer Name
  • A 1.01 Type
  • Q 3.01 Nominal frequency (Fo)
  • Q 3.02 Oscillation Mode
  • Q 3.03 Load Capacitance (CL)
  • Q 3.04 Freq. Tol. max. (at +25℃)
  • Q 3.05 Freq. Stability Vs Temp. max.:
  • Q 3.06 Operating Temp. Range
  • Q 3.07 Storage Temp. Range
  • Q 3.08 Equivalent Res. (ESR)
  • Q 3.09 Shunt Capacitance C0
  • Q 3.10 Drive Level
  • Q 3.11 Drive Level
  • Q 3.12 Insulation Resistance
  • Q 3.13 Air-tightness
  • Q 3.14 Aging
  • A 1.01 Manufacturer Part No.
  • A 1.04 Dimension & Type
  • Q 1.4 Version---

Diese Kombination existiert nicht.

Kontaktieren Sie uns


Spezifikationen​

ALLE
A 1.00 Manufacturer Name SUZHOU UTECH TECHNOLOGY CO.,LTD
A 1.01 Type Quartz Crystal Resonator
QUARZ
Q 3.01 Nominal frequency (Fo) 24.000000 MHz
Q 3.02 Oscillation Mode Fundamental
Q 3.03 Load Capacitance (CL) 12.0 pF
Q 3.04 Freq. Tol. max. (at +25℃) ±10 ppm max.
Q 3.05 Freq. Stability Vs Temp. max.: ±15 ppm max.
Q 3.06 Operating Temp. Range -30°C ~ +85°C
Q 3.07 Storage Temp. Range -55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR) 60 Ω max.
Q 3.09 Shunt Capacitance C0 -
Q 3.10 Drive Level -
Q 3.11 Drive Level -
Q 3.12 Insulation Resistance -
Q 3.13 Air-tightness -
Q 3.14 Aging -
Nicht kategorisiert
A 1.01 Manufacturer Part No. -
A 1.04 Dimension & Type SMD2520 (2.5 x 2.0 mm)
Q 1.4 Version--- -
